| X | 31.5" | 800.1 mm |
| Y | 20.1" | 510.54 mm |
| Z | 20.1" | 510.54 mm |
| # Axis | 5 | 5 |
| Power | 20 hp | 14.9 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT-40 | CAT-40 |
| Control | CNC (Mori Seiki MSX-501 Series CNC Control) | CNC (Mori Seiki MSX-501 Series CNC Control) |
| Dimensions | 104″ x 90″ x 103″ High Approx. | 104″ x 90″ x 103″ High Approx. |
| Weight | 13,780 lbs Approx. | 13,780 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.

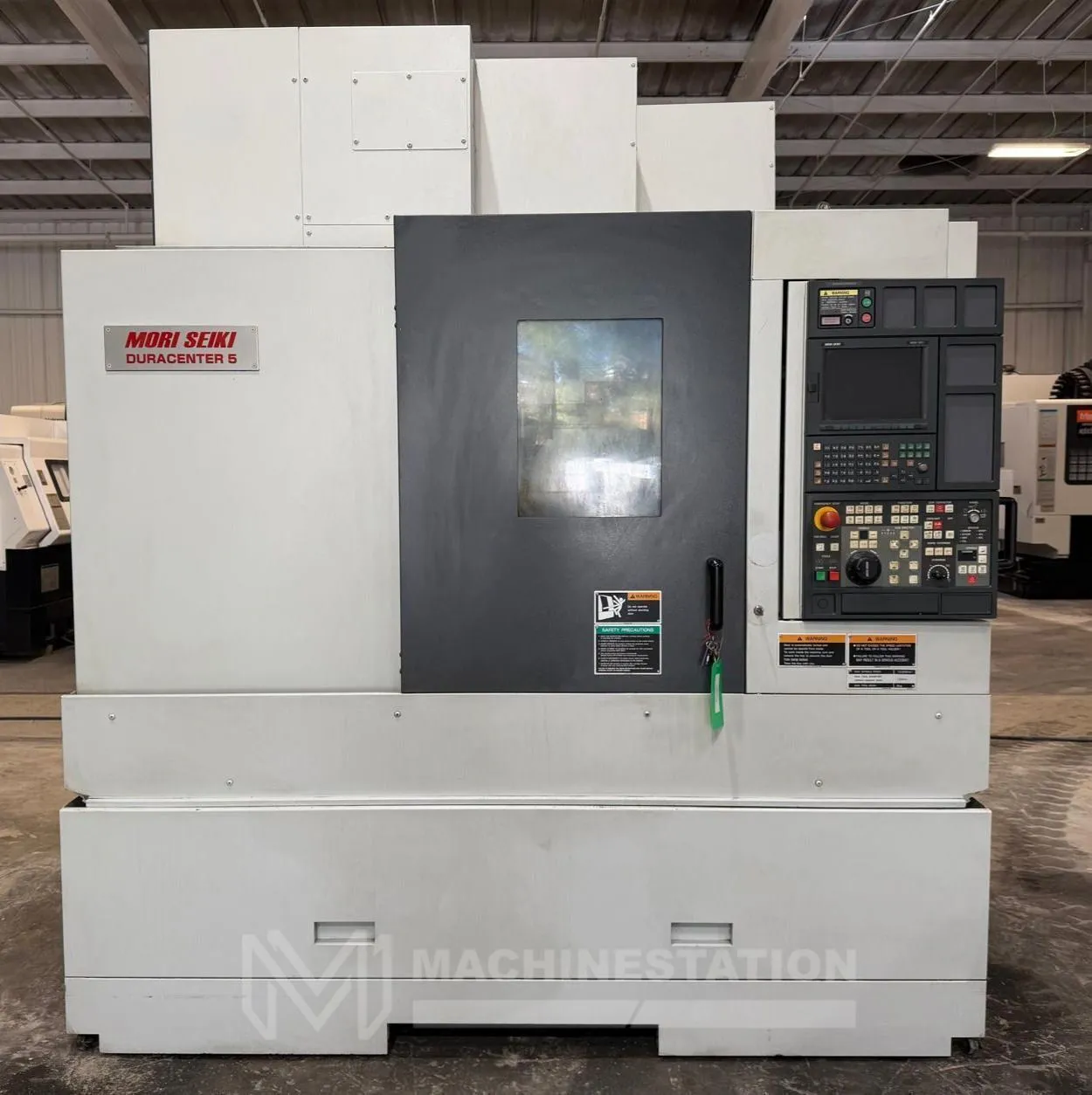

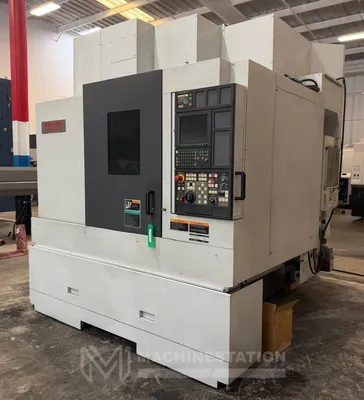

Features:

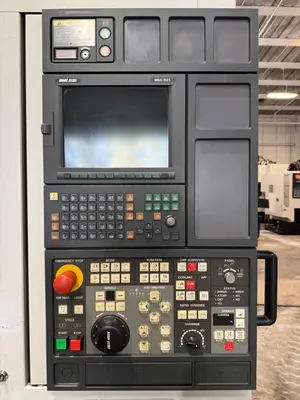

Mori Seiki MSX-501 Series CNC Control
Spindle Orientation
Rigid Tapping

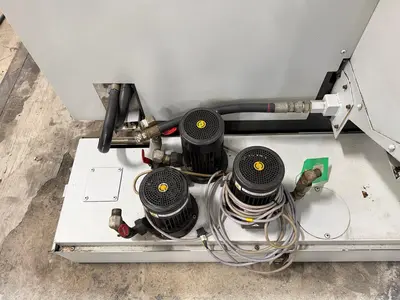

Coolant System
Automatic Lubrication System
Travels:
X-Axis: 31.5″
Y-Axis: 20.1″
Z-Axis: 20.1″
Rapid Traverse Rates X, Y Axis: 1417″ Per Minute
Rapid Traverse Rates Z Axis: 787″ Per Minute
Cutting Feed Rates: ″ Per Minute
Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″

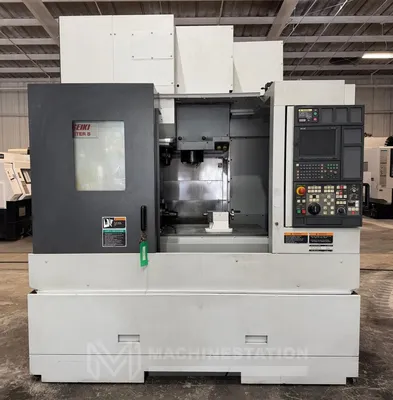

Table:
Length: 43.3″
Width: 23.6″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 1760 lbs
Spindle:
Spindle: Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 20 HP
Automatic Tool Changer:
Capacity: 20 Station
Tool Weight: 17.63 lbs
Max Tool Dia: 4.9″
Max Tool Length: 11.8″

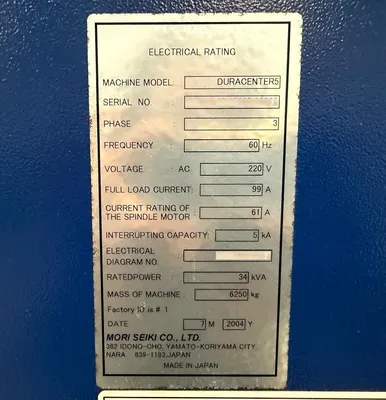

General:
Air Required: 80 psi, 4 scfm
Power: 220v / 34 kva / 3-Phase
Overall Dimensions: 104″ x 90″ x 103″ High Approx.
Weight: 13,780 lbs Approx.

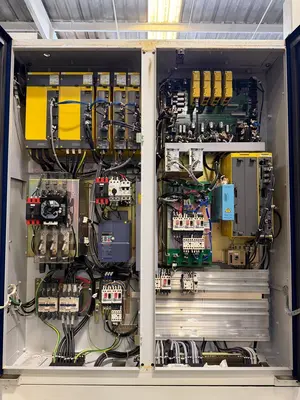

4th & 5th Axis Drive and Wiring
Kitagawa 4th Axis Rotary Table with Tailstock
CAT-40 Taper 12,000 RPM Spindle
Through Spindle Coolant
20 Station Side Mounted Tool Changer
