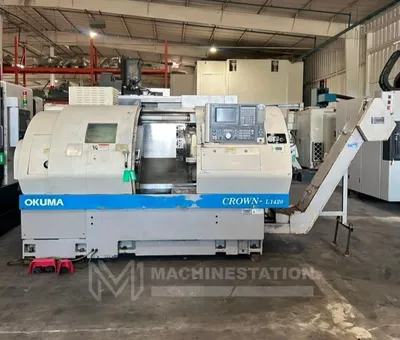

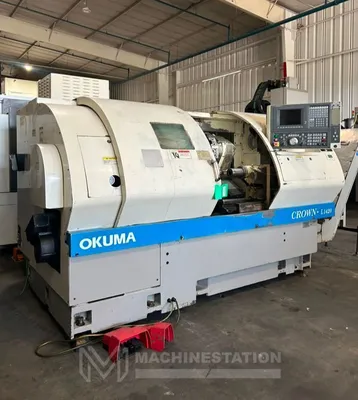

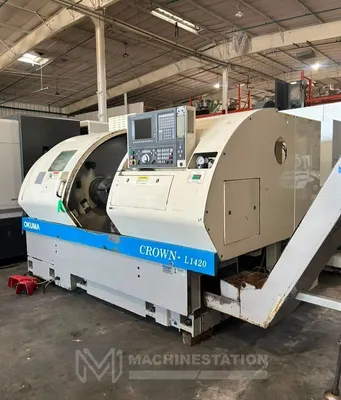

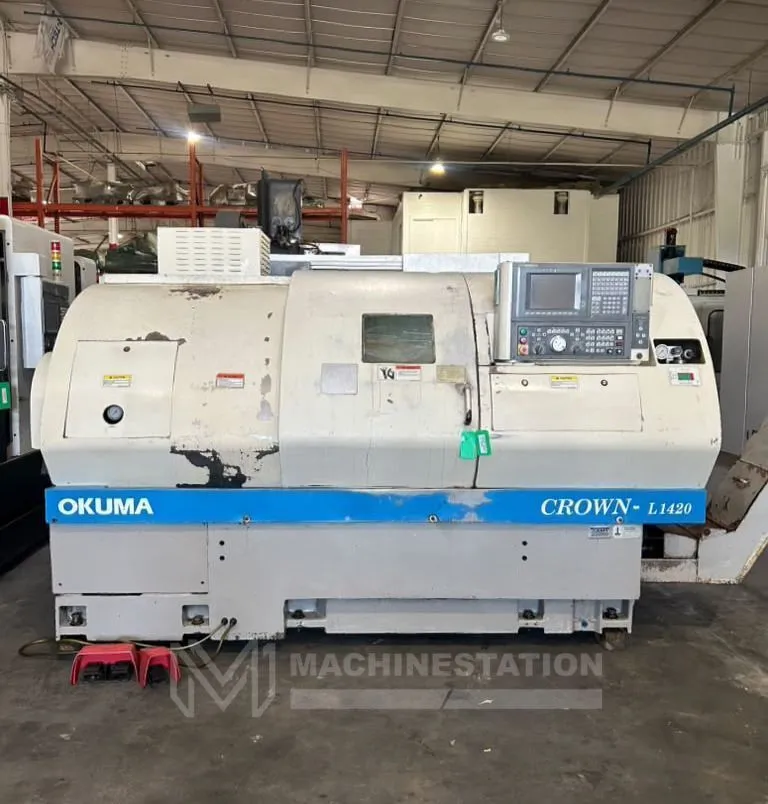

USED 2001 OKUMA CROWN L1420

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

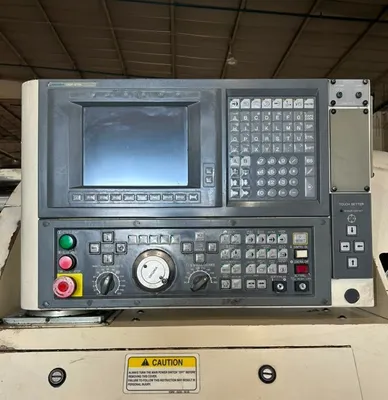

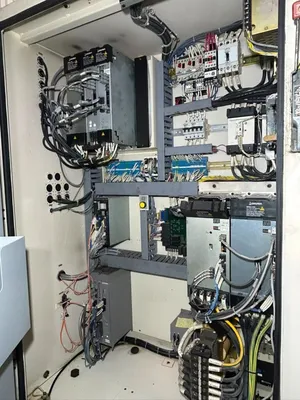

Okuma OSP-U10L CNC Control
12-Station Automatic Turret

Capacity:
Max Turning Diameter: 14.17″
Max Turning Length: 25.59″
Swing Over Bed: 28.41″
Max Bar Capacity: 2.99″

Travel:
X Axis Travel: 9.1″
Z Axis Travel: 25.59″
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Z Axis: 591 IPM

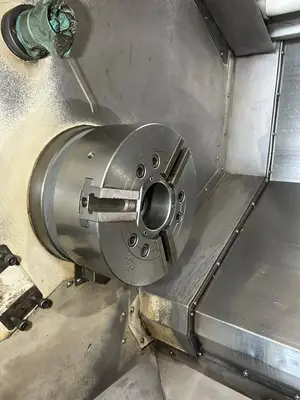

Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.58″
Spindle Speed: 65-3500 RPM
Spindle Motor: 30 HP

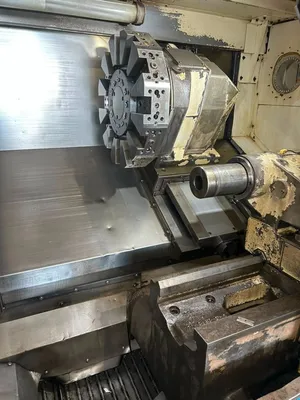

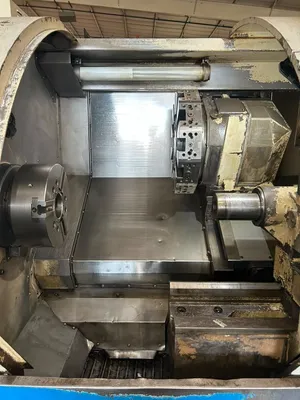

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second

Tailstock:
Tailstock Body Travel: 14.3″
Tailstock Quill Dia.: 3.54″
Tailstock Quill Stroke: 4.72″
Tailstock Taper: MT-4

General:
Power Source: AC 220V/480v, Three Phase, 60 Hz
Power Requirement: 38.7 kva

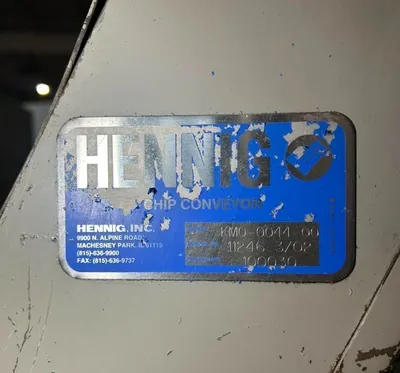

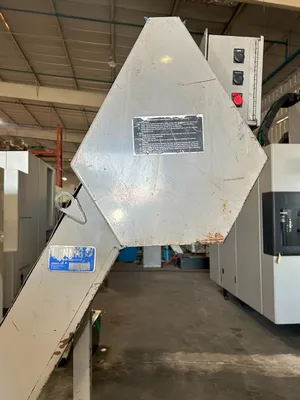

Overall Dimensions: 150″ x 68″ x 80″ High with Chip Conveyor
Weight : 15000 lbs Approx.
