| X | 20.47" | 519.94 mm |
| Y | 12.59" | 319.79 mm |
| Z | 11.81" | 299.97 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | BT-30 | BT-30 |
| Control | CNC (Fanuc Oi-MD Series CNC Control) | CNC (Fanuc Oi-MD Series CNC Control) |
| Dimensions | 110.23″ x 74.80″ x 96.46″ High | 110.23″ x 74.80″ x 96.46″ High |
| Weight | 8,157 lbs | 8,157 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
Fanuc Oi-MD Series CNC Control
BT-30 Taper Spindle
PCMCIA Card Interface
Rigid Tapping

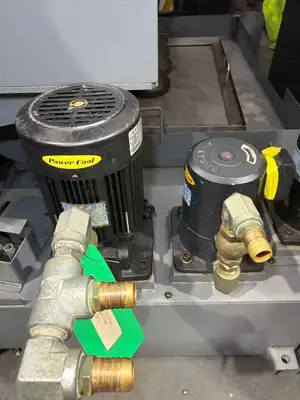

Coolant System
Travels:
X-Axis: 20.47″
Y-Axis: 12.59″
Z-Axis: 11.81″
Rapid Traverse Rates X, Y, Z Axis: 1,890 IPM
Spindle Nose to Table (Min. – Max.): 7.87″ – 19.69″
Table:
Number of Pallets: 2
Length: 23.62″
Width: 14.76″
Number of T-Slots: 4
Max Weight on Table: 882 lbs
Spindle:
Spindle Type: Direct Drive
Taper Size: BT-30
Speed Range: 10,000 RPM
Spindle Power: 7.5 HP
Automatic Tool Changer:
Capacity: 24 Station
Max Tool Diameter: 2.75″ – 4.72″
Max Tool Length: 7.87″
Max Tool Weight: 11.02 lbs
Tool Changing Time (Tool-to-Tool): 0.84 Sec
General:
Power: 220v / 3-phase / 20 kva
Overall Dimensions: 110.23″ x 74.80″ x 96.46″ High
Weight: 8,157 lbs
Rotary Pallet Changer
10,000 RPM High Speed Spindle
24 Station Automatic Tool Changer
Through Spindle Coolant
Spindle Chiller Unit
Levelling Pads
