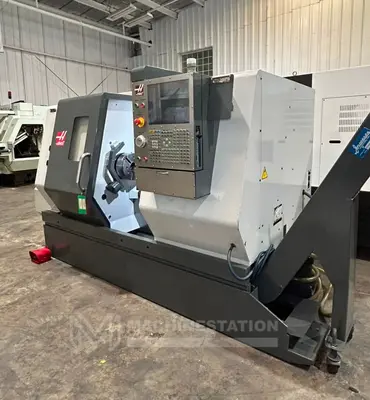

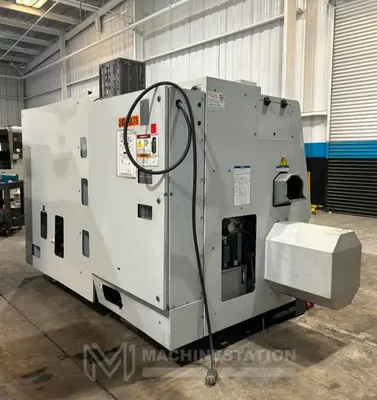

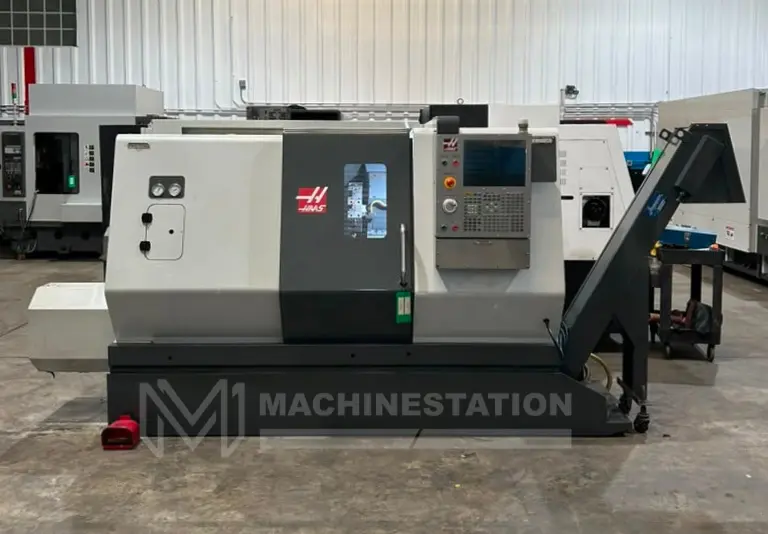

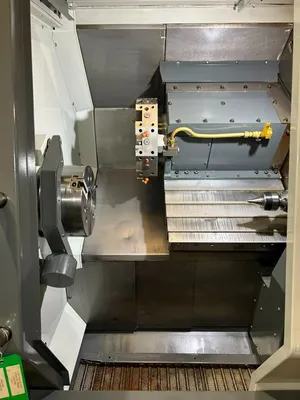

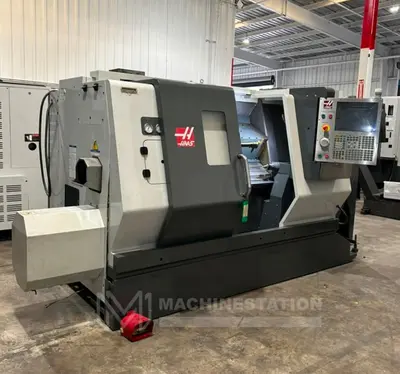

USED 2008 HAAS SL-20TB

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

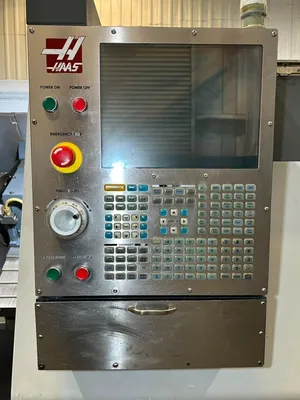

Haas CNC Control
A2-6 Spindle with 3.0″ Bore
Coolant Tank

Capacity:
Max Turning Diameter : 13.0″
Max Swing Over Bed : 21.0″
Max Turning Length: 22.5″
Max Bar Capacity : 2.5″

Travels:
X Axis Travel : 8.40″
Z1 Axis Travel : 22.5″

Feedrate:
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 710 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.0″
Spindle Speed: 3400 RPM
Spindle Motor: 20 HP

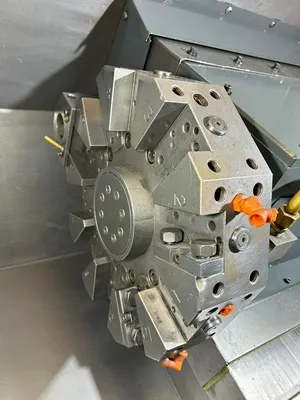

Turret:
Turret Capacity: 10 Stations
Turret Index Time: 1 Second

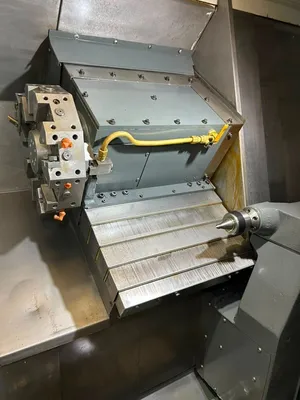

Tailstock:
Taper: MT-4

General:
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 142″ x 90″ x 92″ High Approx.
Machine Weight: 9,000 lbs Approx.
