| Swing | 21" | 533.4 mm |
| Machining Length | 32.5" | 825.5 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Turning Dia | 15" | 381 mm |
| Tailstock | No | No |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Haas CNC Control) | CNC (Haas CNC Control) |
| Dimensions | 170″ x 90″ x 98″ High Approx. | 170″ x 90″ x 98″ High Approx. |
| Weight | 10900 lbs | 10900 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
Haas CNC Control
Rigid Tapping

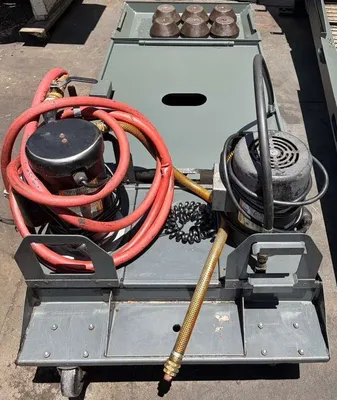

Coolant Tank
Automatic Lubrication system
Capacity:
Max Turning Diameter : 15.0″
Max Swing Over Bed : 21.0″
Max Turning Length: 32.5″
Max Bar Capacity : 3.0″
Travels:
X Axis Travel : 9.4″
Z Axis Travel : 32.5″
Feedrate:
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.5″
Spindle Speed: 3400 RPM
Spindle Motor: 30 HP
Turret:
Turret Capacity: 12 Stations
Turret Type: Bolt-On Tool Turret
General:
Air Required: 100 psi 4 scfm
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 170″ x 90″ x 98″ High Approx.
Machine Weight: 10,900 lbs Approx.
12″ 3-Jaw Samchully SH-12 Chuck
12 Station Automatic Turret
A2-6 Spindle, 3400 RPM Spindle
3.5″ Spindle Bore
Belt Type Chip Conveyor
Foot Switch

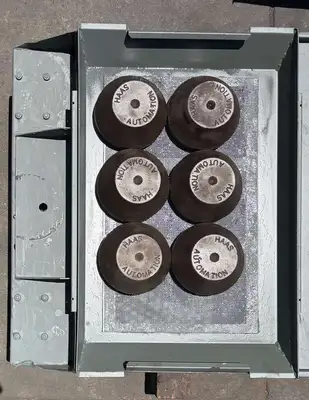

Leveling Pads

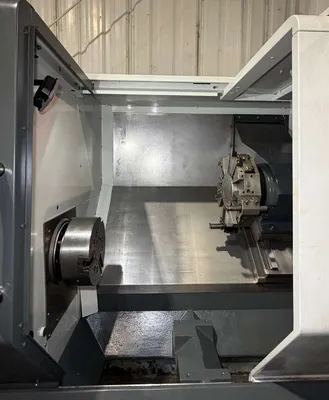

(2) Boring Tool Holders Are Mounted on the Turret (As Shown in the images)
