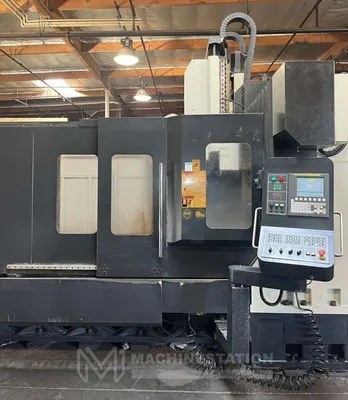

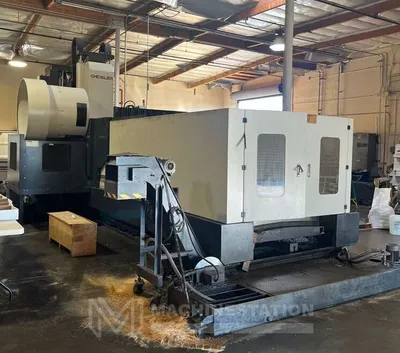

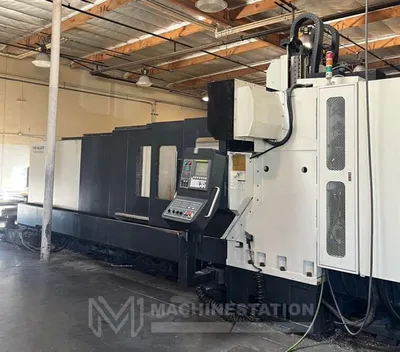

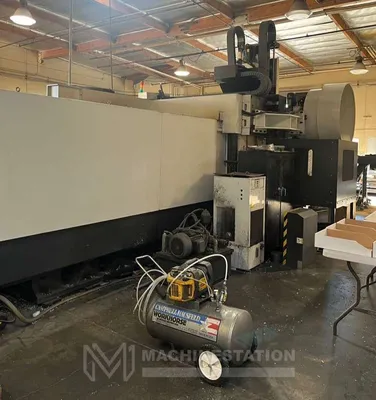

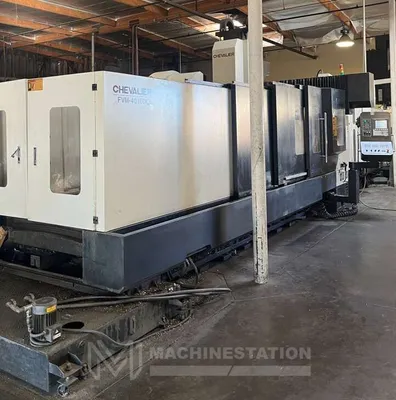

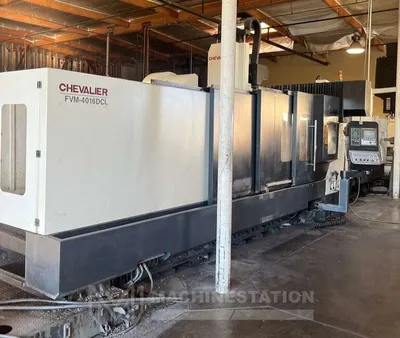

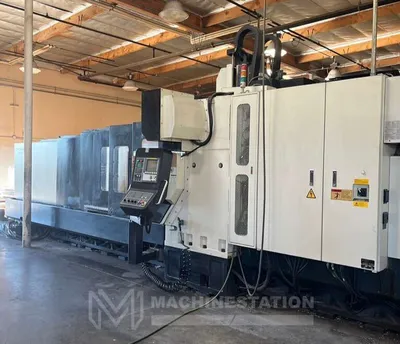

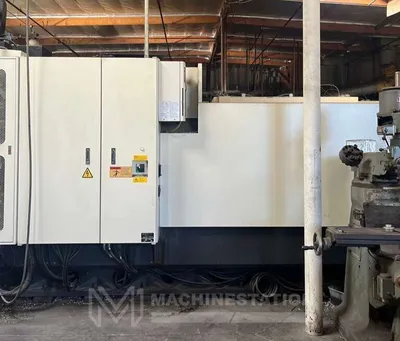

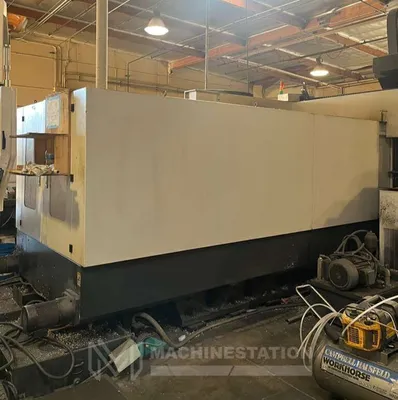

USED 2013 CHEVALIER FVM-4016DCL

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

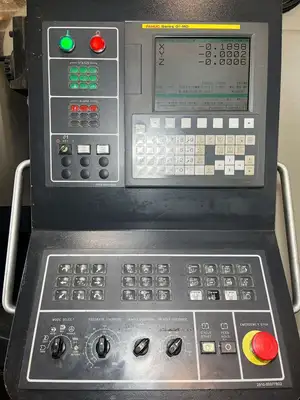

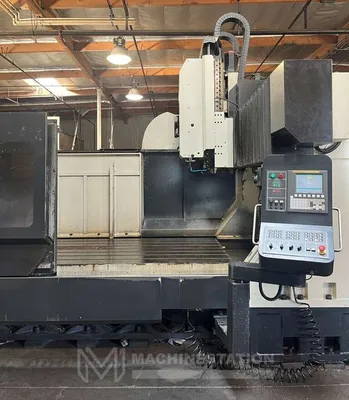

Fanuc Oi-MD CNC Control
9,682 Hours Cutting Time
161.4″ X 57″ Table
Powerful 30 HP High Torque Spindle Motor
PCMCIA Card Slot
Rigid Tapping
Coolant System

Travels:
X-Axis: 161.4″
Y-Axis: 59.0″
Z-Axis: 26.7″
Distance Between Columns: 66.0″
Spindle Nose to Table (Min.- Max.): 7.87″- 34.60″
Rapid Feedrate X Y & Z: 590 IPM
Cutting Feedrate: .04″ – 276″ IPM

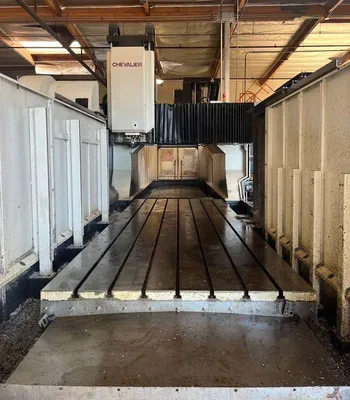

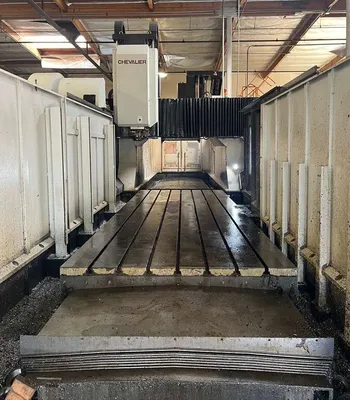

Table:
Length: 161.4″
Width: 57.0″
T-Slot: 0.87″ Wide x 7.08 x 0.27″
Max Weight on Table: 17600 lbs

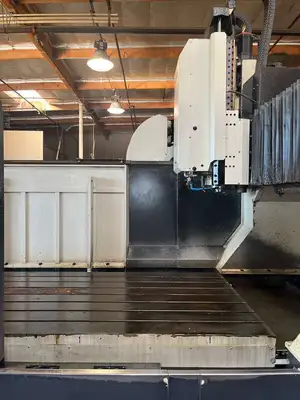

Spindle:
Taper Size: CAT-50
Spindle Speed (Gear Head): 6,000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:
Tool Magazine Capacity: 20 Tools
Max Tool Diameter (Adjacent Tools): Ø4.92″
Max Tool Diameter (No Adjacent Tools): Ø7.87″
Max Tool Length: 15.7″
Max Tool Weight: 33 lbs

General:
Air Required: 100 psi 4 scfm
Power: 230v / 66FLA / 3-Phase 50 Kva
Overall Shipping Dimensions: 470″ x 178.5″ x 160″ High
Weight: 70400 lbs.

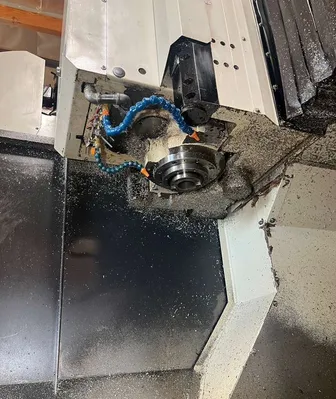

CAT-50 Taper Gear Head 6000 RPM Spindle

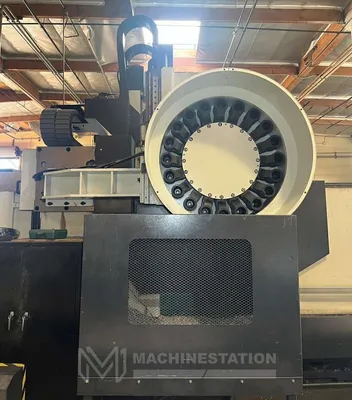

20 Station Side Mount Tool Changer
Through Spindle Coolant Ready
Spindle Chiller Unit

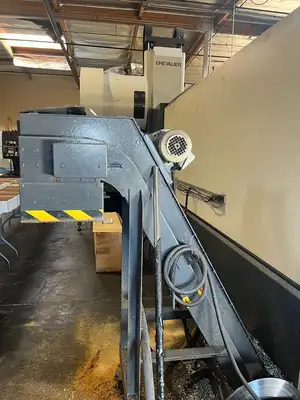

Chip Conveyor
