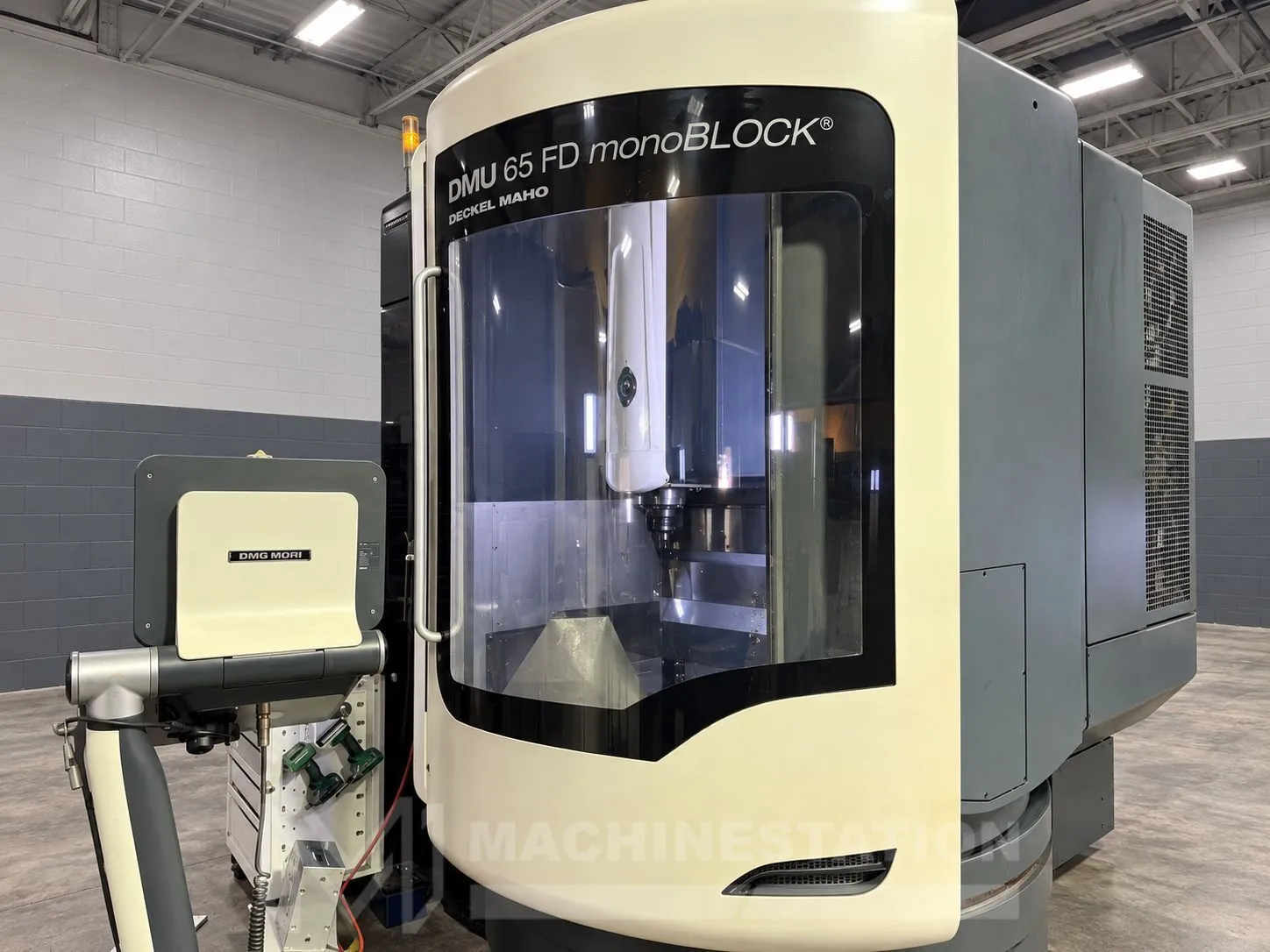

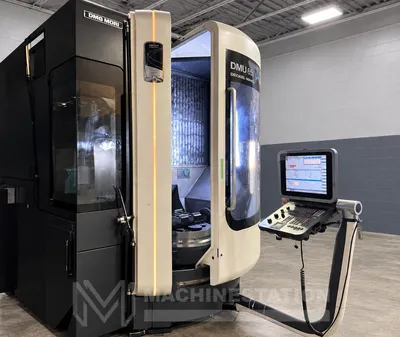

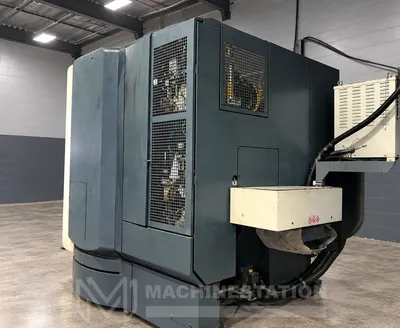

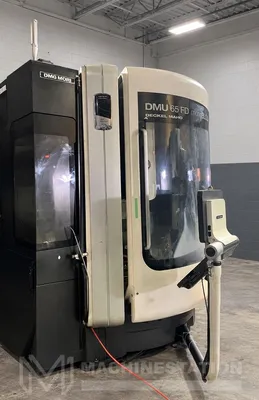

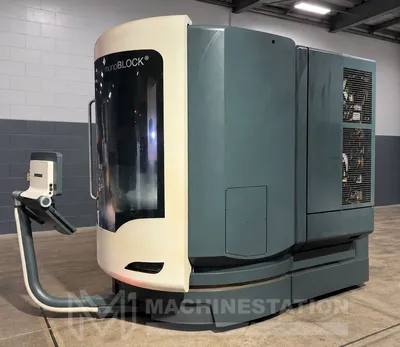

USED 2012 DMG MORI DMU 65FD MONOBLOCK

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

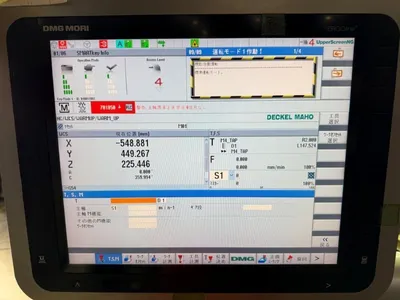

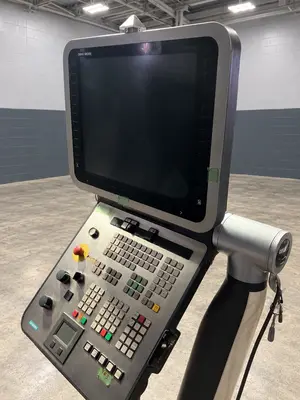

Seimens 840D ERGOline CNC Control
5 Axis Simultaneous Machining
PCMCIA Card Slot
Thermal Compensation
Spindle Orientation
Helical Interpolation
Rigid Tapping

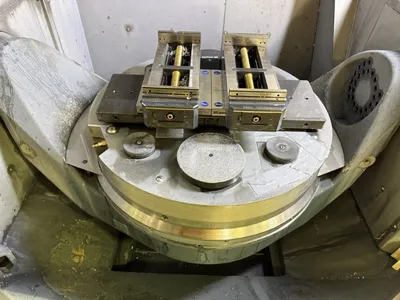

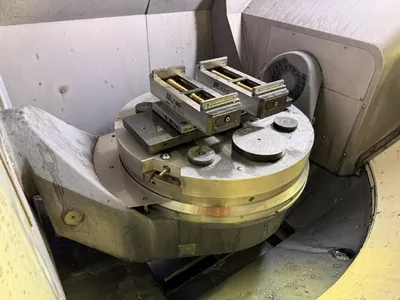

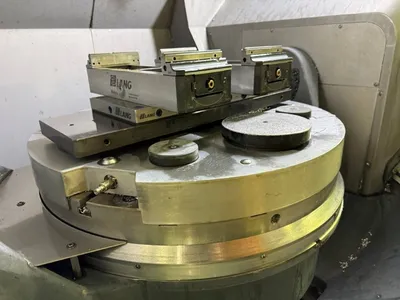

Swivelling Trunnion Table:
Table Diameter: 25.59″
Maximum Work Piece Diameter: 33.07″
Max. Height: 19.7″
Max Weight on Pallet: 1322 lbs
Mill-Turn Operation Up to 12,00 RPM on C Axis

Travel:
X Axis: 28.9″
Y Axis: 25.6″
Z Axis: 22.0″
A Axis: ( Table Tilt )
C Axis: 360° ( Table Rotate )

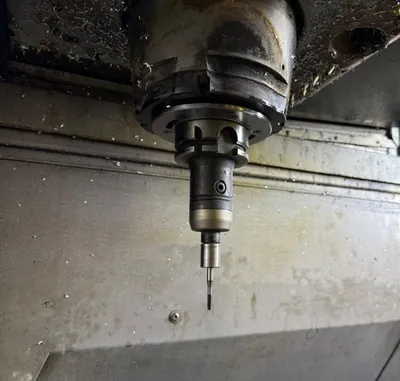

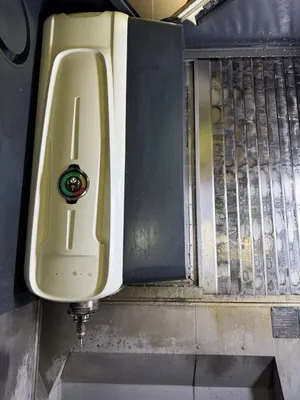

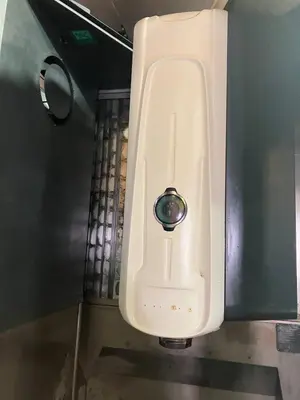

Spindle:
Taper Size: HSK-A63
Speed Range: 18,000 RPM
Spindle Power: 47 HP

Feed Rates:
Rapid X Y & Z: 1574 Inch Per Minute
Feed Rate : 1574 Inch Per Minute

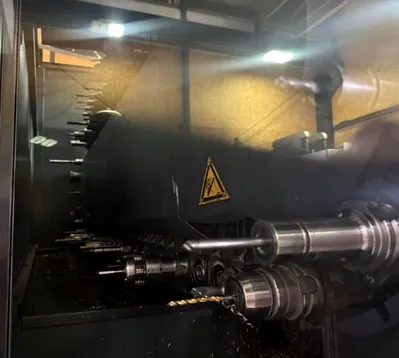

Tool Changer:
Capacity: 60 Tools
Taper: HSK-A63
Max Tool Size: 6.3″ X 12.4″
Max Tool Weight: 17.7 lbs.
Tool Change Time: 4.9 Second

General:
Air Required: 100 psi, 4 scfm
Power: 58 kva / 400v / 3-Phase
Overall Dimensions: 141″ x 97″ x 114″ High Approx.
Weight: 21,825 lbs
