Parlec
C40-30DC5
TH4847085
Made In USA

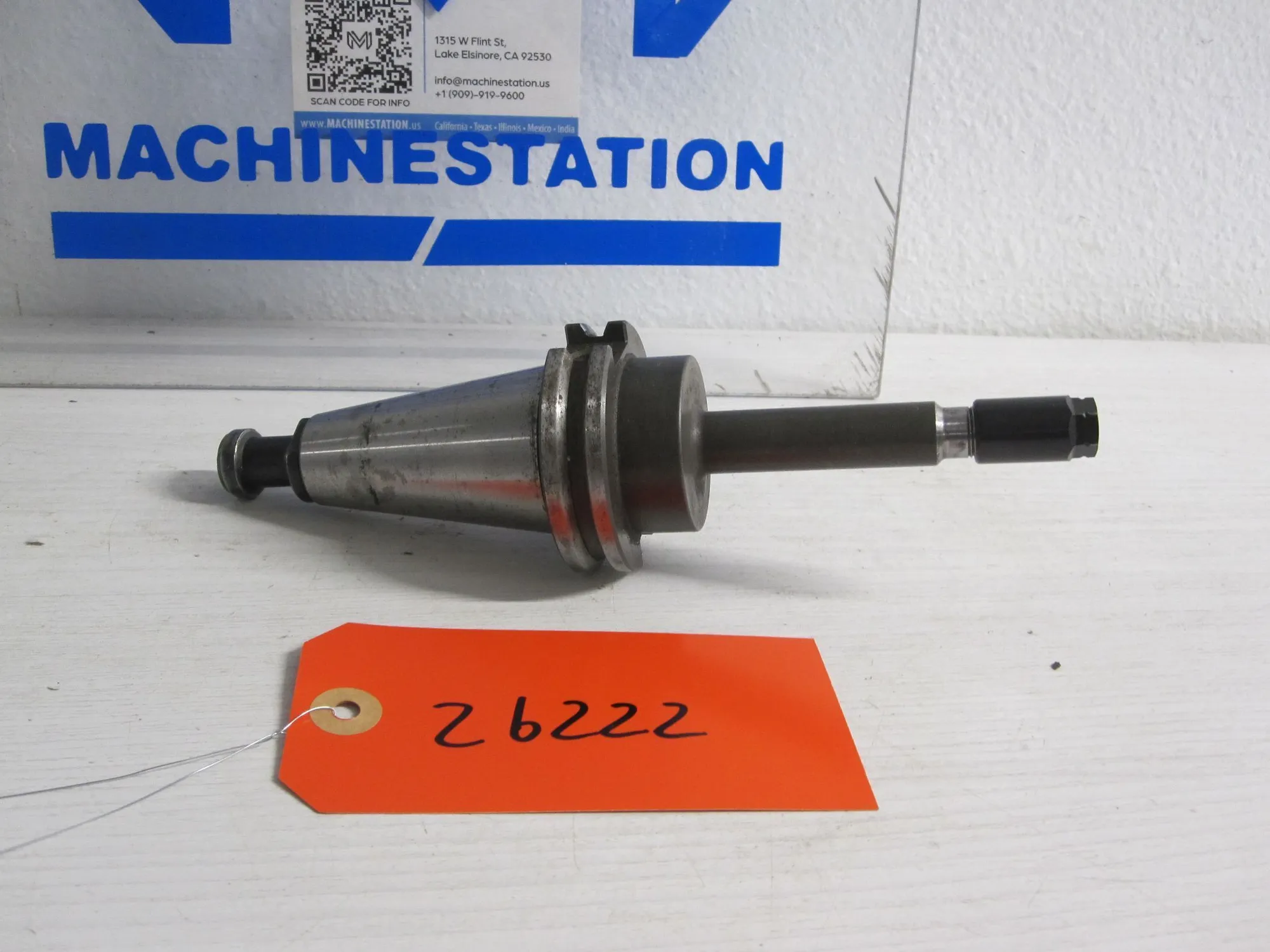

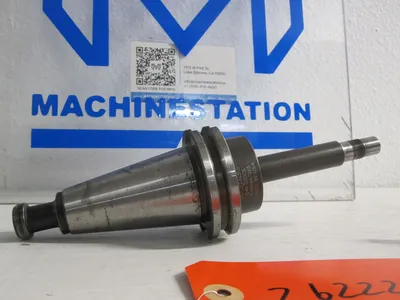

Parlec Collet Chuck: 1/32 to 1/4" Capacity, DA300 Collet, Taper Shank Double Angle
CAT40 C40 CT40 CAT-40
Retention Knob / Pull Studs works with Doosan DNM 500 II VMC
PARLEC
Collet Chuck 0.0313- 0.25″ Capacity Double Angle Collet Shank C40-30DC5
MSRP: $280
Collet System Double Angle
Collet Series DA300
Shank Type Taper
Taper Size CAT40
Projection (Decimal Inch) 5.1500
Through Coolant Yes
Minimum Collet Capacity (Inch) 1/32
Minimum Collet Capacity (Decimal Inch) 0.0313
Maximum Collet Capacity (Inch) 1/4
Maximum Collet Capacity (Decimal Inch) 0.2500
Overall Length (Decimal Inch) 7.8370
Nose Diameter (Decimal Inch - 4 Decimals) 0.6200
TIR (Decimal Inch) 0.000400
Coolant Type Through-Spindle
Product Service Code 5136
JC
