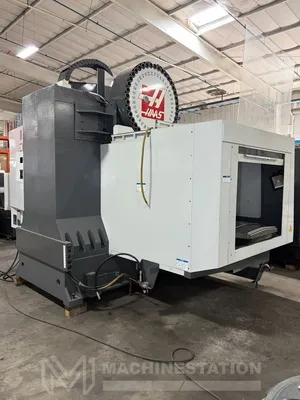

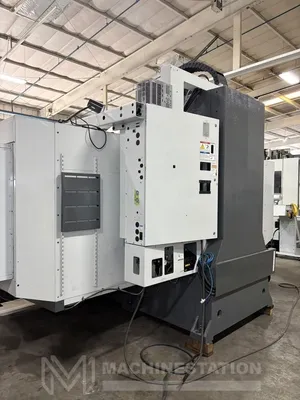

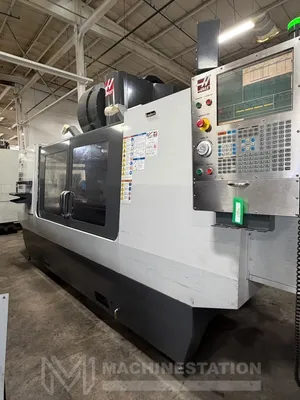

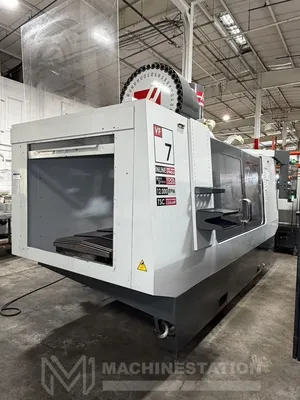

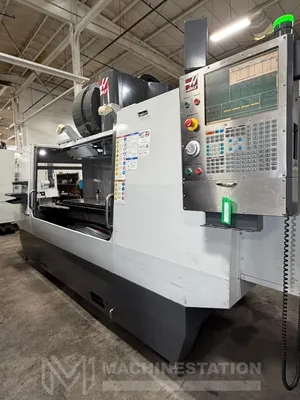

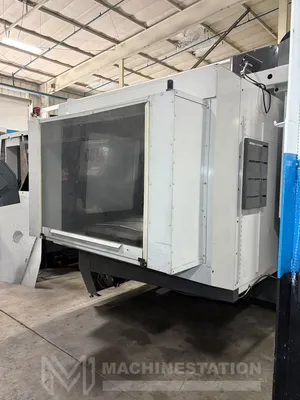

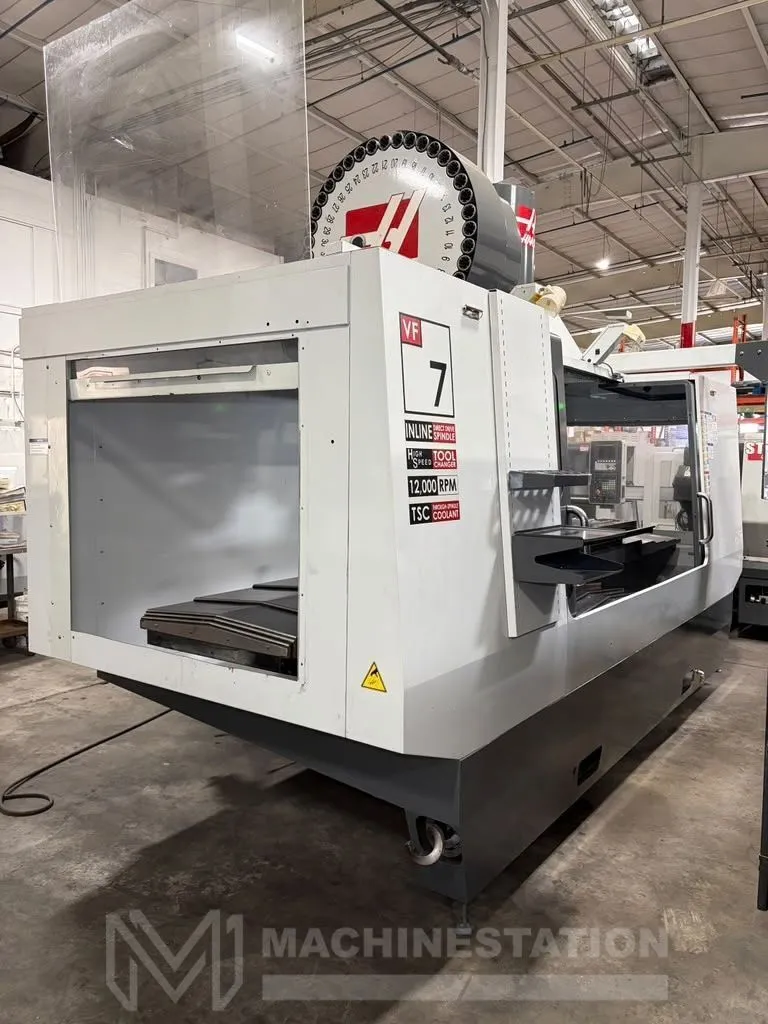

USED 2008 HAAS VF-7/40

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

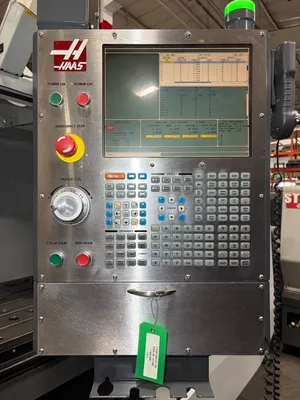

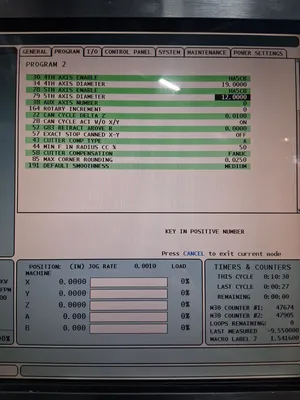

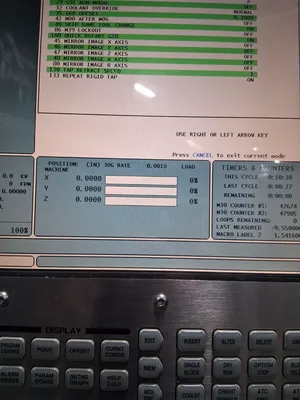

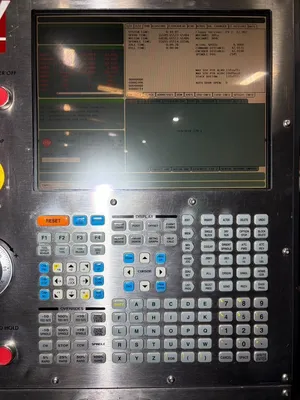

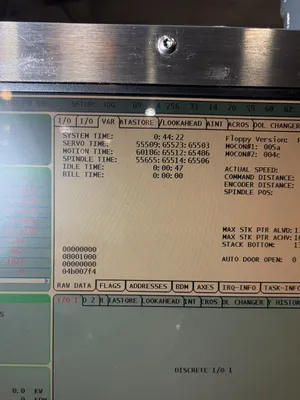

Haas CNC Control
Rigid Tapping

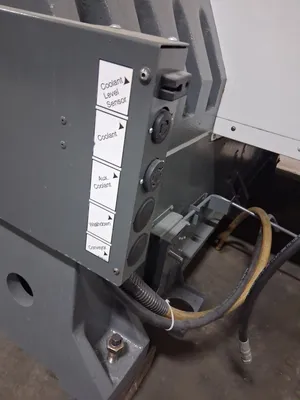

Coolant Tank

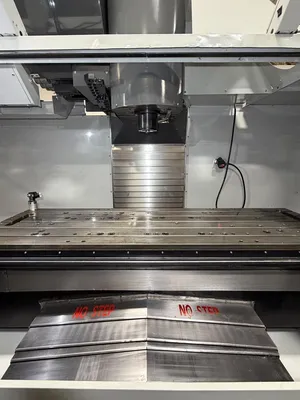

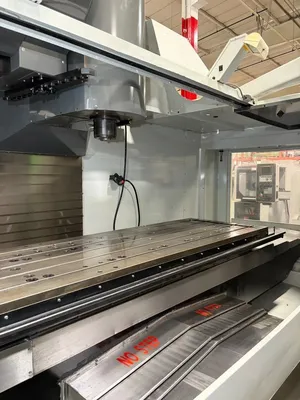

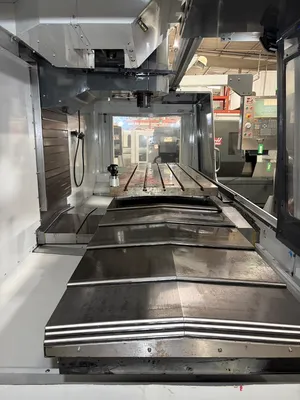

Table:
Length: 84 inch
Width: 28 inch
Number of Std T-Slots: 5
T-Slot Width: 5/8 inch
Max Weight on Table: 4000 lbs

Travels:
X-Axis: 84 inch
Y-Axis: 32 inch
Z-Axis: 30 inch
Rapid Traverse Rates: 600 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4 inch – 34 inch

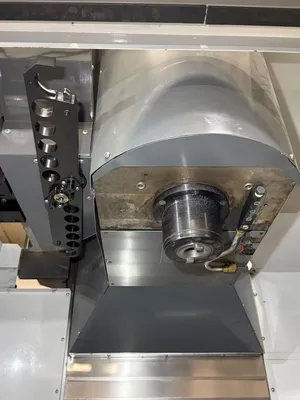

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:
Capacity: 40 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 2.5 inch
Max Tool Diameter (adjacent empty): 5 inch
Max Tool Length: 16 inch

General:
Air Required: 100 psi, 4 scfm

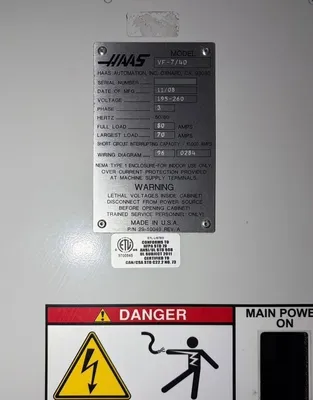

Power: 195v – 260v / 50/60 Htz / 3-Phase
Overall Dimensions: 214 inch x 102 inch x 129 inch High
Weight: 25,600 lbs
