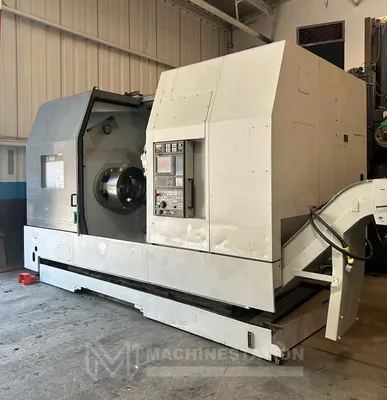

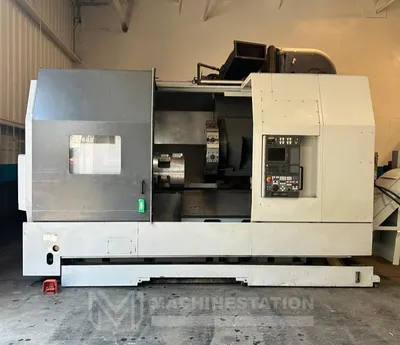

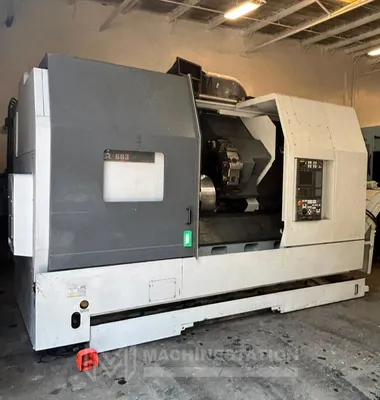

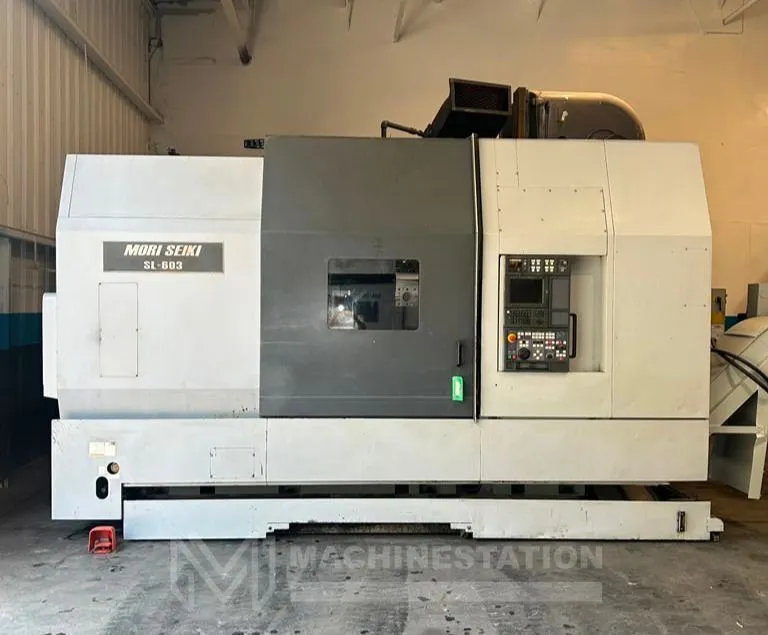

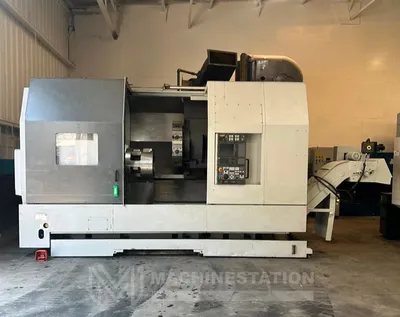

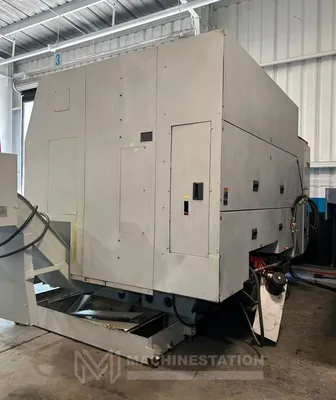

USED 2004 MORI SEIKI SL-603B/1000

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

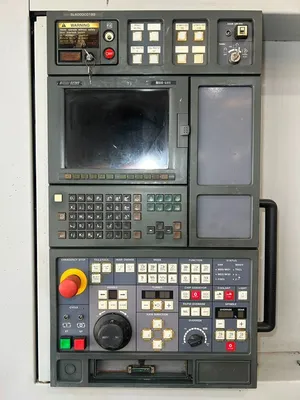

Mori Seiki MSG-501 (Fanuc) CNC Control
Coolant Tank
Foot Switch

Capacity:
Max Turning Diameter: 35.4″
Max Turning Length: 39.3″
Swing Over Bed: 40.6″
Swing Over Cross Slide: 28.9″
Distance Between Centers: 51.2″

Travels:
X Axis Travel: 19.1″
Z Axis Travel: 45.3″

Feed Rates:
Rapid Traverse X: 787.4 IPM
Rapid Traverse Z: 787.4 IPM

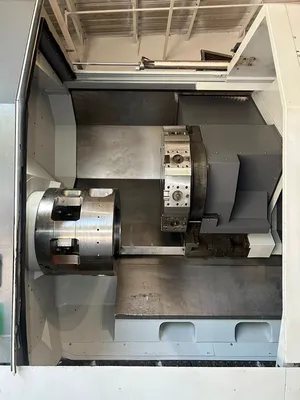

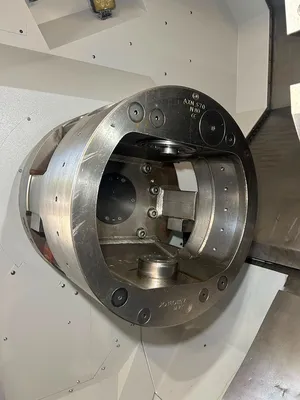

Spindle:
Spindle Nose: A2-15
Spindle Speed: 1500 RPM
Spindle Motor: 40 HP

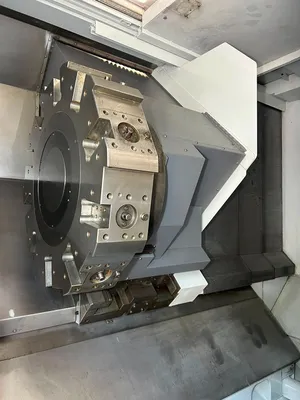

Turret:
Turret Capacity: 10 Stations
Turret Index Time: 0.4 seconds
Turning Tool Size: 1.25″
Boring Tool Diameter: 2.6″

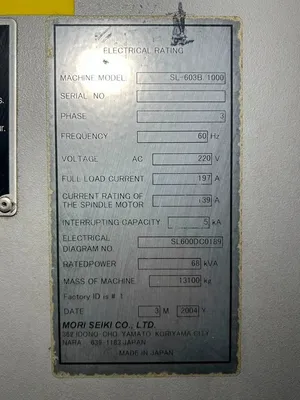

General:
Power Source: AC 220v/ Three Phase/ 60 Hz
Power Requirement: 68 kVA
Overall Dimensions: 196″ x 121″ x 114″ High Approx.
Machine Weight: 28,880 lbs Approx.
