| X | 7.87" | 199.9 mm |
| Y | 8.66" | 219.96 mm |
| Z | 11.02" | 279.91 mm |
| # Axis | 5 | 5 |
| Power | 20 hp | 14.9 kW |
| RPM | 42,000 RPM | 42,000 RPM |
| # ATC | 24 | 24 |
| Taper | HSK 40 | HSK 40 |
| Control | CNC (Siemens ERGOline 840D CNC Control) | CNC (Siemens ERGOline 840D CNC Control) |
| Dimensions | 80″ x 65″ x 93″ High | 80″ x 65″ x 93″ High |
| Weight | 8250 lbs | 8250 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
Siemens ERGOline 840D CNC Control
Programmable Swiveling Trunnion Table
5 Axis Simultaneous Machining
20 HP Spindle Power
Rigid Tapping
Spindle Orientation
Coolant System
Travels:
X-Axis: 7.87″
Y-Axis: 8.66″
Z-Axis: 11.02″
A-Axis (Table Tilt): + 130° – 15°
C-Axis (Rotation): 360°
Rapid Traverse Rates: 1574 Inch Per Minute

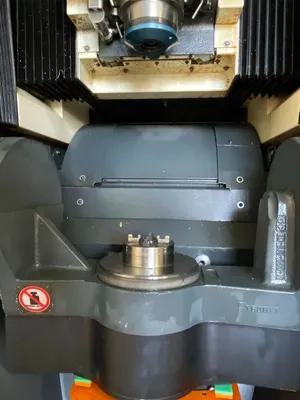

Trunnion Table:
NC Swivel Rotary Table Diameter: 7.87″
Max Table Load: 220 lbs
Max Table Load: 33 lbs
Max Speed Rotation Axis (A/C): 150/50 RPM
Spindle:
Taper Size: HSK 40
Speed Range: 42000 RPM
Spindle Power: 20 HP
Automatic Tool Changer:
Capacity: 24 Station
Max Tool Weight: 12 lbs
Max Tool Diameter : 4.0″
Max Tool Length: 7.87″
Tool Changing Time: 10 Seconds
General:
Air Required: 100 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 80″ x 65″ x 93″ High
Weight: 8250 lbs
42,000 RPM High Speed Spindle
High Speed Machining
24 Station Automatic Tool Changer
Through Spindle Coolant
MPG Handwheel Control

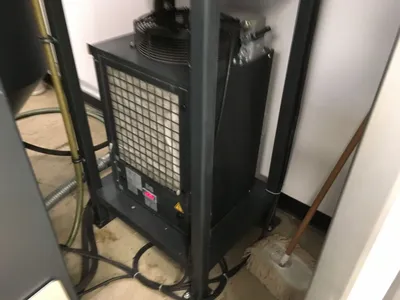

Chiller Unit

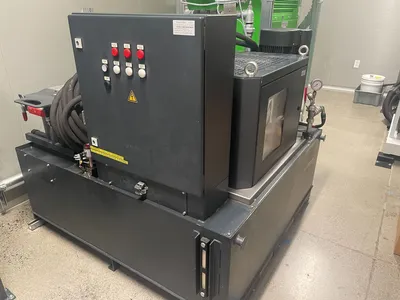

Coolant Recycler Unit
Mist Collector
Books & Manuals
