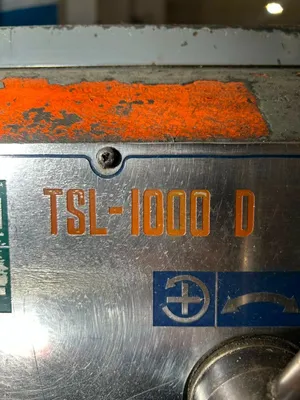

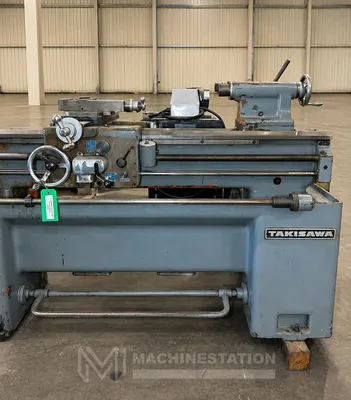

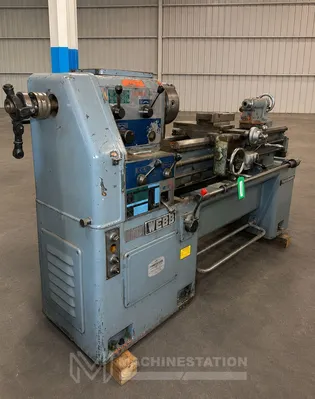

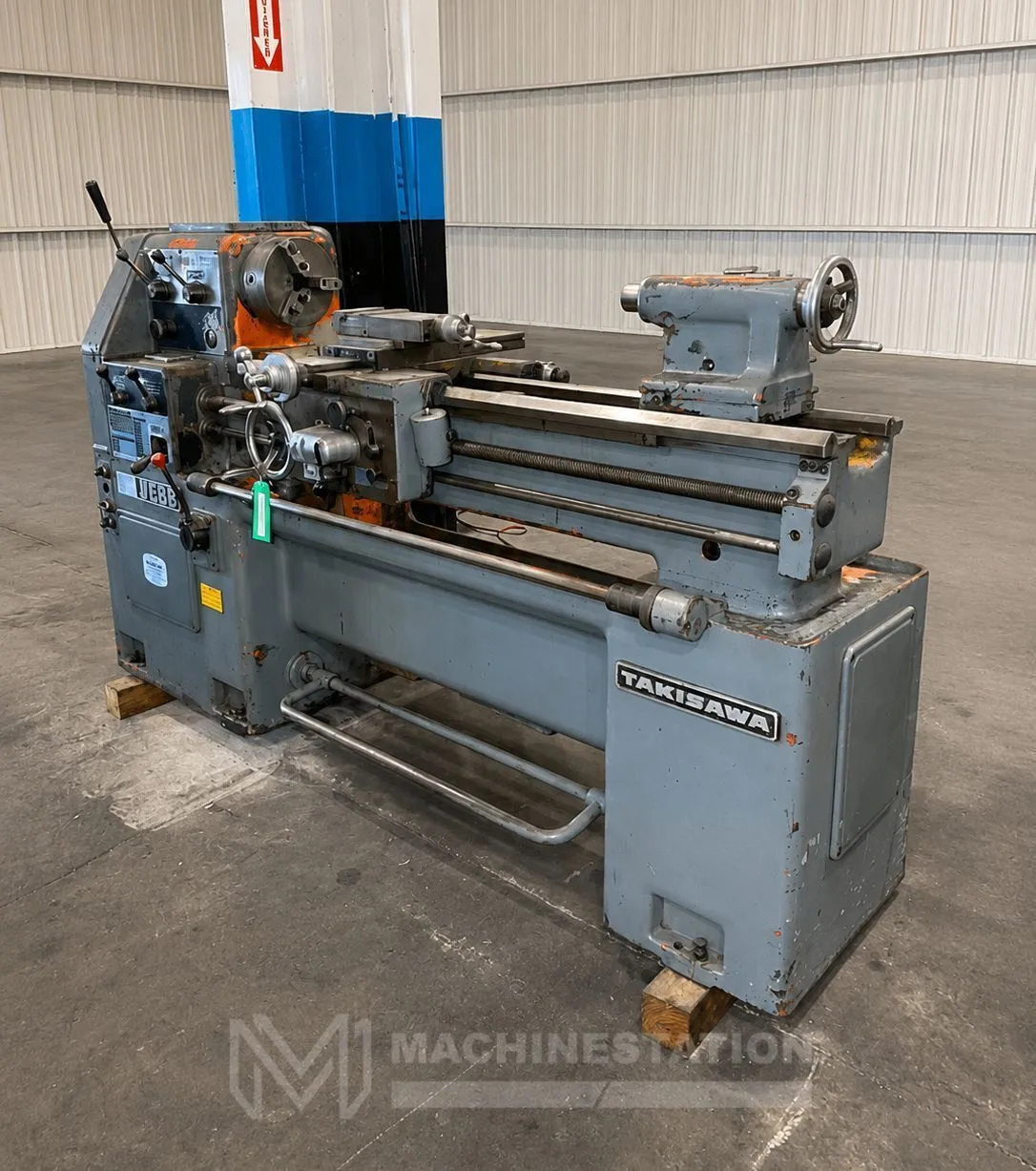

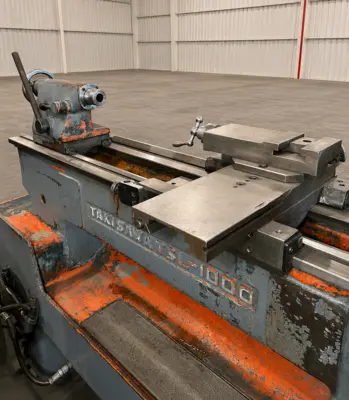

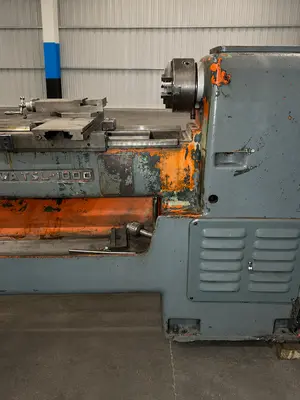

USED TAKISAWA WEBB TSL-1000D

All specifications are approximate and for reference only, based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:
Hardened & Ground Bed Ways

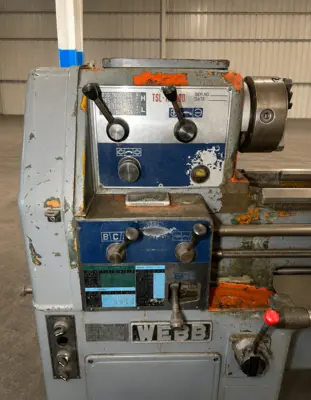

6-Speed Geared Headstock
Power Longitudinal & Cross Feeds
Inch & Metric Thread Cutting

Capacity
Swing Over Bed: 14.18"
Swing Over Cross Slide: 8.27"
Swing Over Gap (from Face Plate to 4"): 16.00"
Distance Between Centers: 40.00"
Height of Centers: 7.09"

Bed
Bed Length: 71.26"
Bed Width: 10.83"
Floor to Work Center: 41.54"

Spindle
Spindle Bore: 1.38"

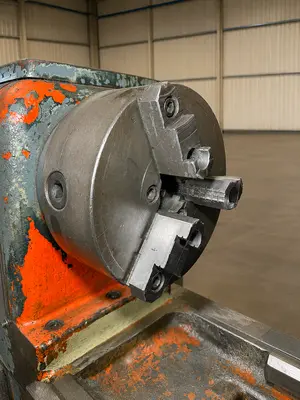

Spindle Nose: ASA A1-5
Spindle Taper: MT No. 5
Spindle Speed Range: 83 – 1,800 RPM
Number of Spindle Speeds: 6
Main Spindle Motor: 5 HP

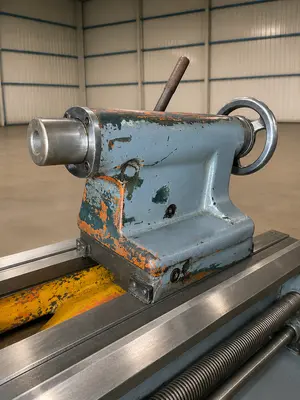

Tailstock
Tailstock Taper: MT No. 3

Feed Rates
Number of Longitudinal Feeds: 36
Longitudinal Feed Range: 0.0020" – 0.1417" per Revolution
Cross Feed: ½ of Longitudinal Feed
Number of Inch Threads: 31
Inch Thread Range: 2 – 56 TPI
Number of Metric Threads: 18
Metric Thread Range: 0.5 – 9.0 mm

General
Overall Dimensions (L × W): 82" × 28.5"
Machine Weight: Approx. 2,645 lbs
