| Swing | 30.5" | 774.7 mm |
| Machining Length | 82.8" | 2,103.1 mm |
| # Axis | 2 | 2 |
| Chuck Size | 24" | 609.6 mm |
| Bar Capacity | 6.5" | 165.1 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 1,800 RPM | 1,800 RPM |
| Turning Dia | 27.1" | 688.34 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc Oi-TD CNC Control) | CNC (Fanuc Oi-TD CNC Control) |
| Dimensions | 250″ x 84″ Approx. | 250″ x 84″ Approx. |
| Weight | 25000 lbs Approx. | 25000 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

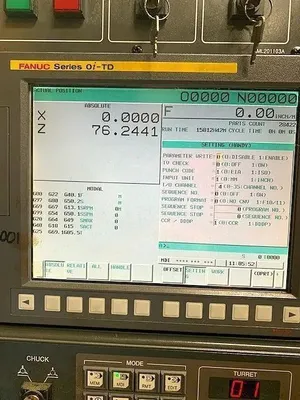

Fanuc Oi-TD CNC Control
12 Station Automatic Turret
Rigid Tapping
Coolant System
Capacity:
Max Turning Diameter : 27.1″
Max Swing Over Bed : 30.5″
Max Turning Length: 82.8″
Max Bar Capacity : 6.5″
Travels:
X Axis Travel : 13.78″
Z1 Axis Travel : 83.00″
Feedrate:
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 709 IPM
Spindle:
Spindle Nose: A2-15
Spindle Bore: 7.12″
Spindle Speed: 1800 RPM
Spindle Motor: 50 HP

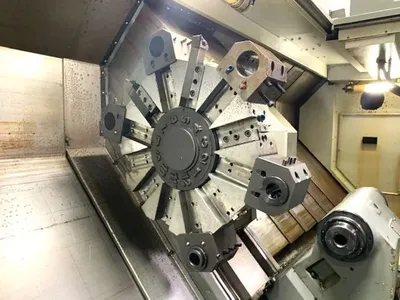

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.25 Second
Tool Size: □ 1.25″
Boring Bar Dia.: ⌀ 2.5″
Tailstock:
Tailstock Quill Travel: 5.9″
Tailstock Quill Diameter: 6.5″
Tailstock Taper: MT-5
General:
Power Source: AC 220v / 3-Phase / 60 Hz
Floor Space: 250″ x 84″ Approx.
Machine Weight: 25,000 lbs Approx.
24” 3-Jaw Hydraulic Chuck
A2-15, 7.12” Big Bore Spindle
Tool Presetter
Tailstock
Chip Conveyor
