| X | 87" | 2,209.8 mm |
| Y | 59" | 1,498.6 mm |
| Z | 39" | 990.6 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 80 | 80 |
| Taper | HSK-63A | HSK-63A |
| Table-W | 62.9" | 1,597.7 mm |
| Table-L | 90.5" | 2,298.7 mm |
| Control | CNC (Heidenhain iTNC 530) | CNC (Heidenhain iTNC 530) |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

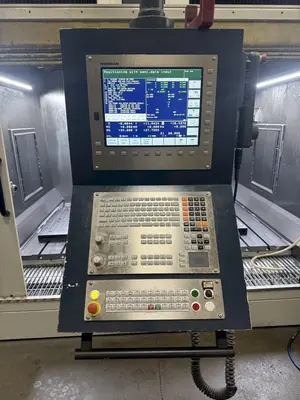

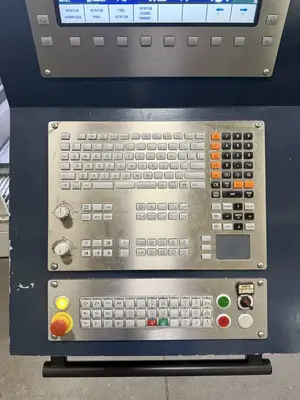

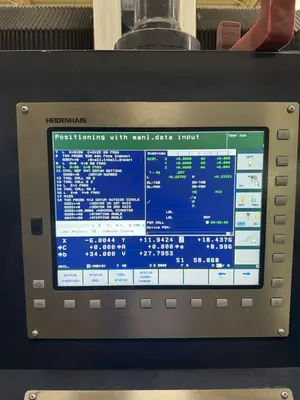

Heidenhain iTNC 530 CNC Control

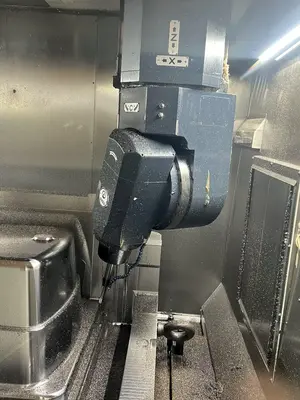

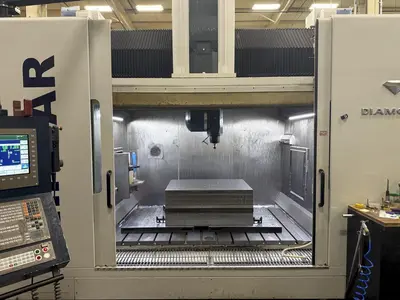

5-axis Machining
90.5″ X 62.9″ Table
Powerful 40 HP High Torque Spindle Motor
Travels:
X-Axis: 87″
Y-Axis: 59″
Z-Axis: 39″
C Axis: 360°
A Axis (Rotation): +/- 105°
Distance Between Columns: 106.3"

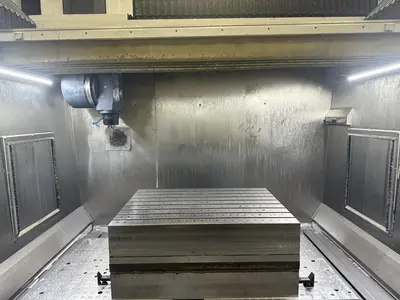

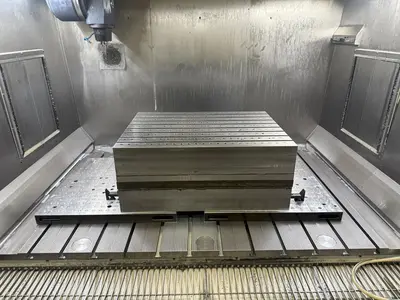

Table:
Length: 90.5″
Width: 62.9″

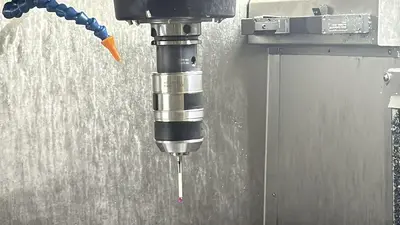

Spindle:
Taper Size: HSK-63A
Speed Range: 20,000 RPM
Spindle Power: 40 HP

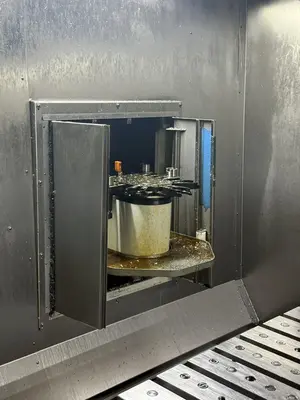

Automatic Tool Changer:

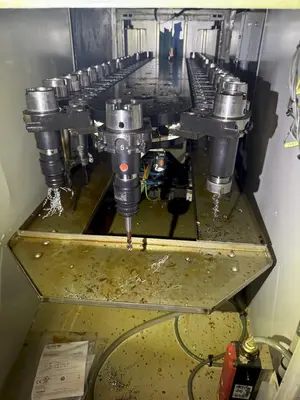

Capacity: 80 Tools (2x-40 Position Tool Changers)
80 Station Automatic Tool Changer (2x-40 Position Tool Changers)
20,000 RPM High Speed Spindle
HSK-63A Spindle Taper
Through Spindle Coolant – 440 psi
Blum Tool Laser Presetter System
Linear Motor Drives on X/Y/Z Axes

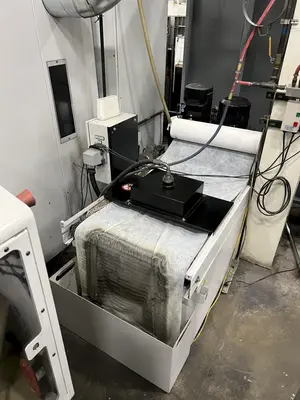

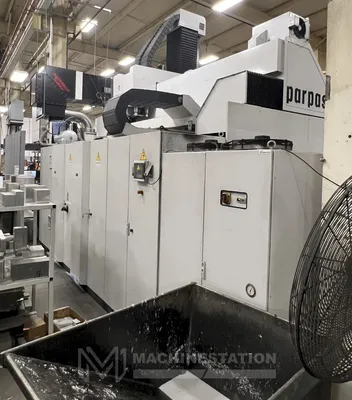

Paper Tray Coolant Filtration System w/Oil Skimmer
Dual Front & Back of Table Chip Conveyors
Flood Coolant

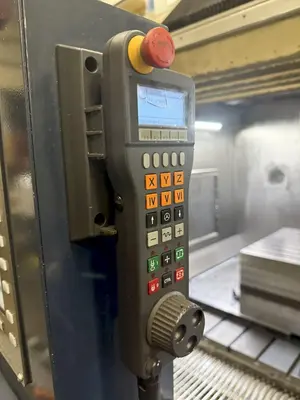

Remote Jog Control
