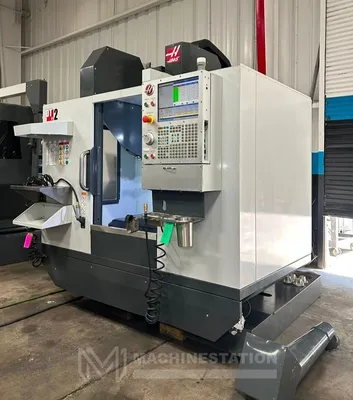

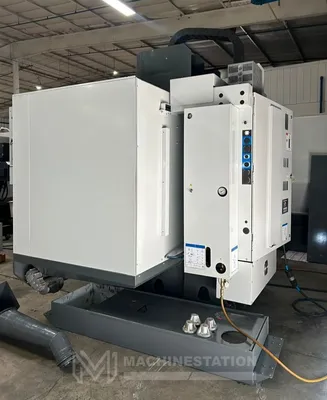

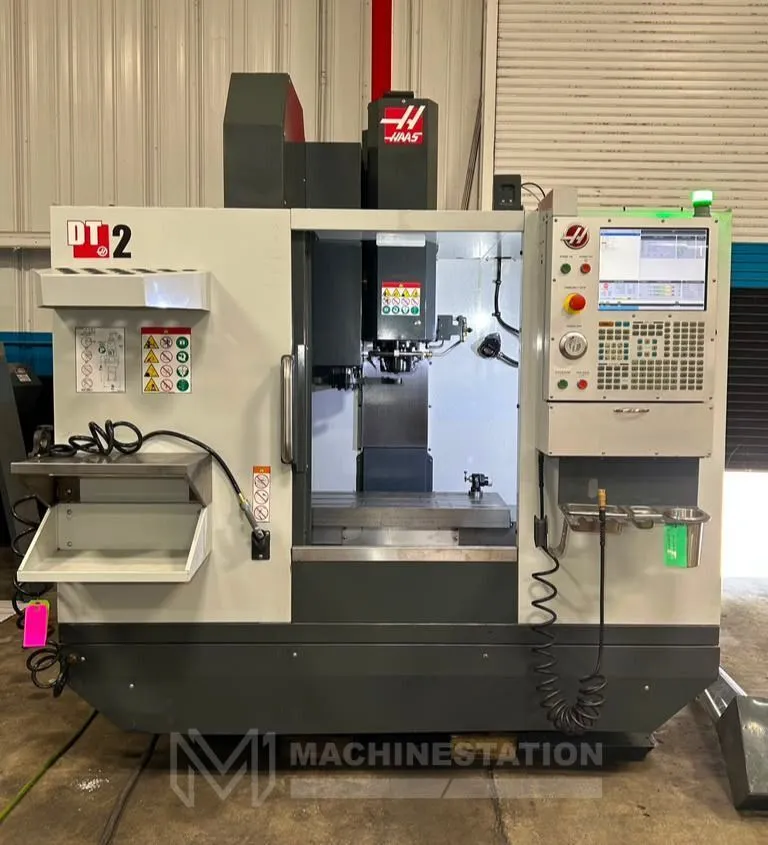

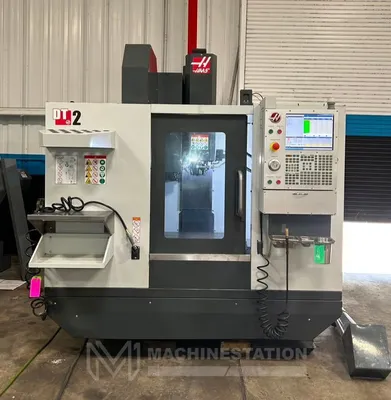

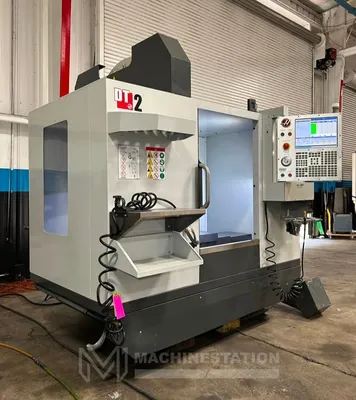

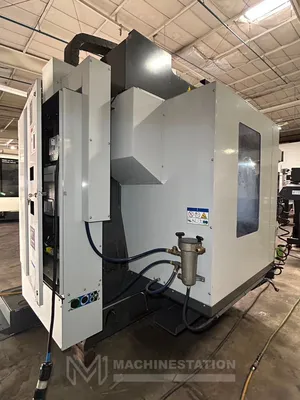

USED 2018 HAAS DT-2

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

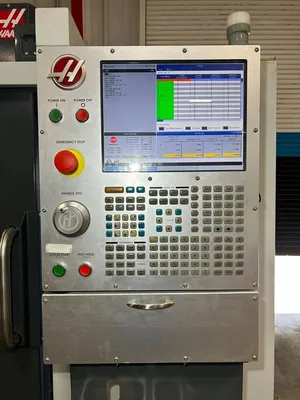

Haas CNC Control
Linear Ways Construction
Rigid Tapping
Spindle Orientation
Coolant Tank

Travels:
X-Axis: 28.0 inch
Y-Axis: 16.0 inch
Z-Axis: 15.5 inch
Rapid Traverse Rates: 2400 Inch Per Minute
Cutting Feed Rates: 1200 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 6 inch – 21.5 inch

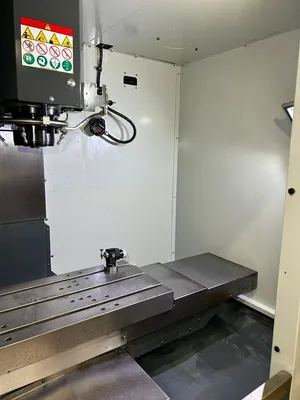

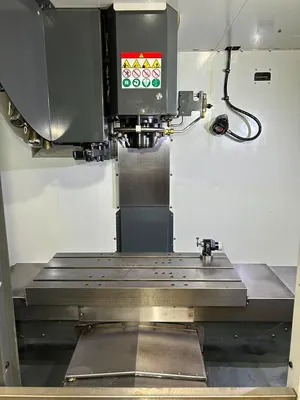

Table:
Length: 34.0 inch
Width: 15.0 inch
Number of Std T-Slots: 3
T-Slot Width: 5/8 inch
Max Weight on Table: 500 lbs

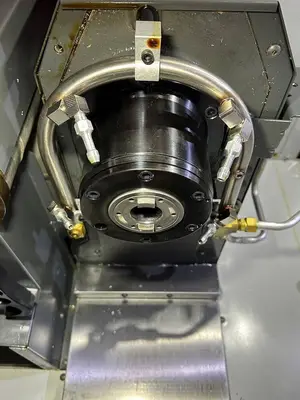

Spindle:
Taper Size: BT-30
Max Speed: 15,000 RPM
Max Tapping Speed: 5,000 RPM
Spindle Power: 15 HP

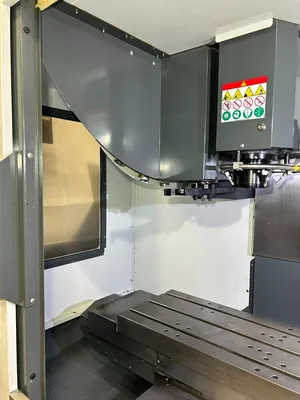

Automatic Tool Changer:
Capacity: 20 Tools
Max Tool Weight: 5.5 lbs
Max Tool Dia: 2.0 inch
Max Tool Length: 7 inch
Tool Changing Time: 2 Seconds

General:
Air Required: 100 psi 4 scfm

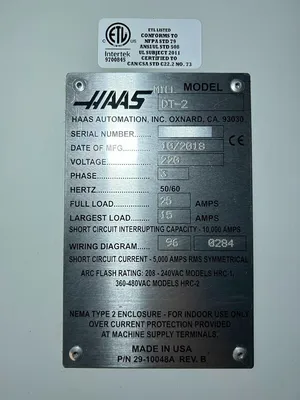

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 100 inch x 91 inch x 99 inch High
Weight: 5,350 lbs
