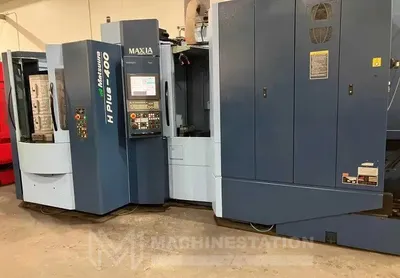

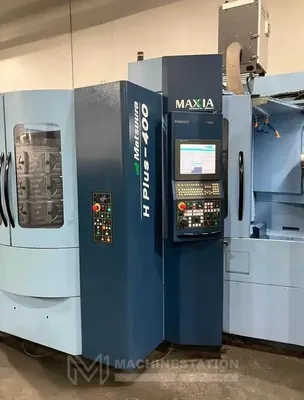

Matsuura H-Plus 400 PC6
Fanuc G-Tech 31i CNC Control, (6) Pallets, 20,000 RPM Spindle, 120 Station Automatic Tool Changer, Full 4th Axis, 1700 Hours Approx. Cutting Time. Sold & Installed in 2016
| X | 22.04" | 559.82 mm |
| Y | 25.19" | 639.83 mm |
| Z | 25.19" | 639.83 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 120 | 120 |
| Taper | CAT-40 | CAT-40 |
| Pallet-W | 15.74" | 399.8 mm |
| Pallet-L | 15.74" | 399.8 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc G-Tech 31i CNC Control) | CNC (Fanuc G-Tech 31i CNC Control) |
| Weight | 22440 lbs | 22440 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
Fanuc G-Tech 31i CNC Control
CAT-40 Taper Spindle
Fast Rapid Traverse Rate
Coolant System
Travels:
X Axis: 22.04″
Y Axis: 25.19″
Z Axis: 25.19″
B Axis: 360° ( 0.001° Full 4th )
Rapid Traverse Rate: 2362 Inch Per Minute
Table:
Length: 15.74″
Width: 15.74″
Max Weight on Table: 800 lbs
Max Workpiece Diameter: 24.80″
Max Workpiece Height: 35.43″
Spindle:
Taper Size: CAT-40
Max. Speed: 20,000 RPM
Power: 40 HP
Tool changer:
Capacity: 120 Tools
Taper: CAT-40
Max Tool Size: 3.14″ – 5.90″
Max Tool Length: 13.77″
Max Tool Weight: 22 lbs.
General:
Air Required: 100 psi, 4 scfm
Power: 37 kva / 220v / 3-Phase
Weight: 22,440 lbs Approx.

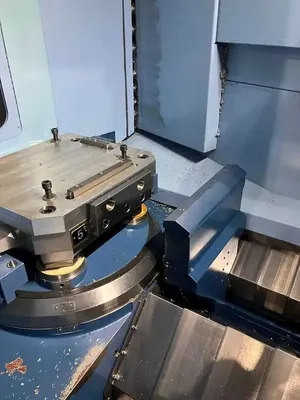

(6) Pallets
Full 4th Axis
20,000 RPM High Precision Spindle
120 Station Automatic Tool Changer
High Pressure Coolant Through Spindle

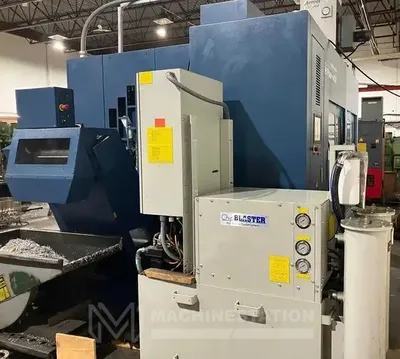

Chip Blaster Unit with Canister Filters
Drum Type Filter Chip Conveyor
Pop Up Tool Laser
Renishaw Tool Probe
Tombstone Fixtures
Top Mounted Mist Collector
Tool Changer Expandable to 360 ATC (add racks 120 atc each)
Can Be Run Lights Out
