| Swing | 39.4" | 1,000.8 mm |
| Machining Length | 157.5" | 4,000.5 mm |
| # Axis | 3 | 3 |
| Chuck Size | 24" | 609.6 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 1,800 RPM | 1,800 RPM |
| Turning Dia | 31.5" | 800.1 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Control | CNC (Fanuc Oi-TC CNC) | CNC (Fanuc Oi-TC CNC) |
| Dimensions | 320″ x 100″ x 100″ High Approx. | 320″ x 100″ x 100″ High Approx. |
| Weight | 40,000 lbs Approx. | 40,000 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

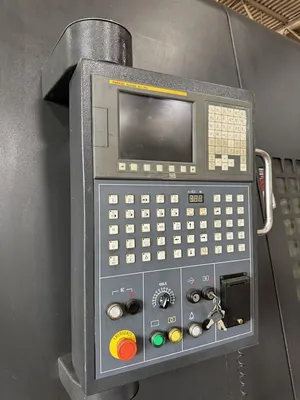

Fanuc Oi-TC CNC Control
A2-15 Spindle
Rigid Tapping
Coolant System
Automatic Lubrication System
Capacity:
Max Turning Diameter: 31.5″
Max Turning Length: 157.5″
Swing Over Bed: 39.4″
Swing Over Saddle: 30.7″
Travels:
X Axis Travel: 25.6″
X Axis Travel: 25.6″
C Axis: 0.001°
Feedrate:
Rapid Traverse X Axis: 315 IPM
Rapid Traverse Z Axis: 394 IPM
Spindle:
Spindle Nose: A2-15
Spindle Bore: 4.9"
Spindle Speed: 50-1800 RPM
Spindle Motor: 40 HP
Turret:
Turret Capacity: 12 Stations
Square Shank Height of Tool: 1.25″
Shank Diameter of Boring Bar: 2.36″
Tool Holders Type: VDI
Tailstock:
Tailstock Quill Diameter: 5.90″
Tailstock Quill Travel: 4.72″
Tailstock Taper: MT-5
General:
Power: 220v / 3-Phase / 60 Hz / 52 kva
Overall Dimensions: 320″ x 100″ x 100″ High Approx.
Weight: 40,000 lbs Approx.

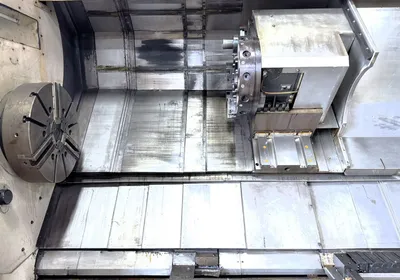

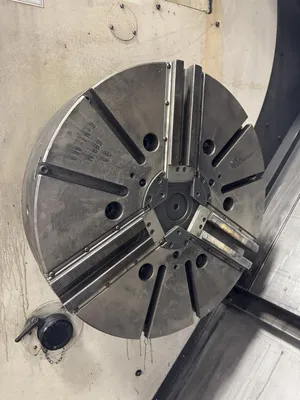

24″ 3-Jaw SMW Autoblock Chuck

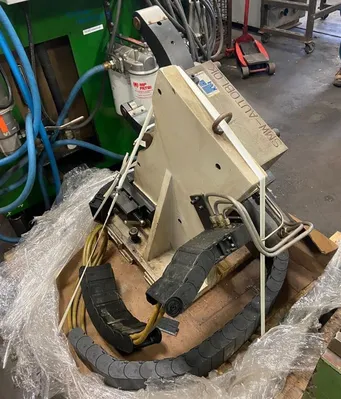

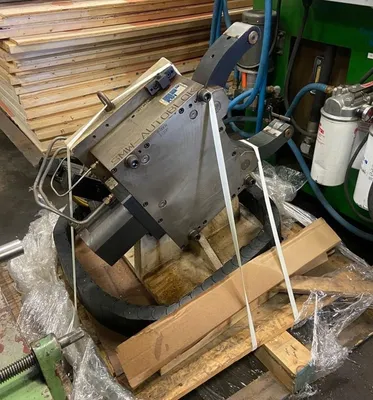

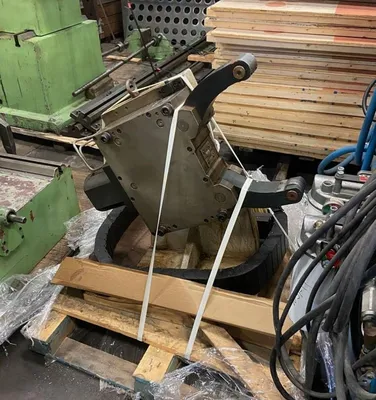

SMW Autoblock Steady Rest

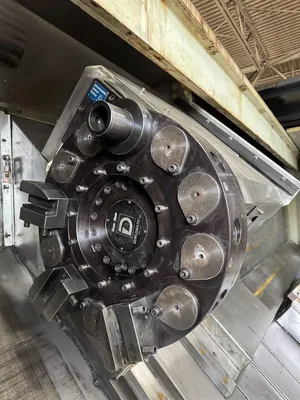

12-Station Duplomate Live Tool Turret

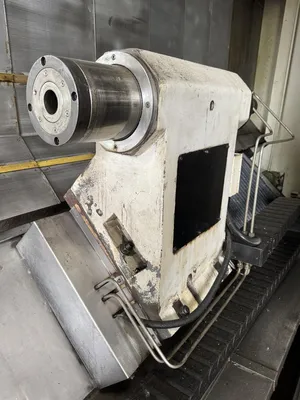

Motorized-Position Hydraulic Tailstock

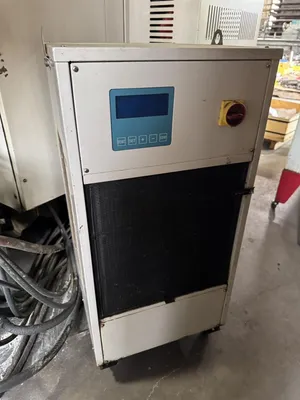

Spindle Chiller Unit
Chip Conveyor
Foot Switches

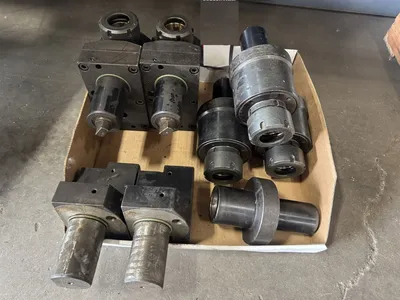

Misc. Live & Statics Tool Holders (As shown in the images)
