| X | 22" | 558.8 mm |
| Y | 25.2" | 640.08 mm |
| Z | 26" | 660.4 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT-40 | CAT-40 |
| Pallet-W | 15.75" | 400.05 mm |
| Pallet-L | 15.75" | 400.05 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc 31i-B) | CNC (Fanuc 31i-B) |
| Dimensions | 195″ X 91″ x 106″ High Approx. | 195″ X 91″ x 106″ High Approx. |
| Weight | 21,384 lbs Approx. | 21,384 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
Fanuc 31i-B CNC Control
Full 4th Axis

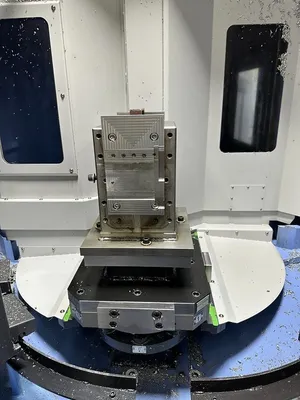

Twin Pallet Changer
Pallet Seat Detection
PCMCIA Card Slot
Coolant System
Travels:
X Axis: 22.0″
Y Axis: 25.2″
Z Axis: 26.0″
B Axis: 0.001° ( Full 4th )
Rapid Traverse Rate: 2362 Inch Per Minute
Table:
Length: 15.75″
Width: 15.75″
Max Weight on Table: 881.8 lbs
Spindle:
Taper Size: CAT-40
Max. Speed: 15,000 RPM
Power: 40 HP
Tool changer:
Capacity: 60 Tools
Max Tool Size: 2.9″ – 6.69″
Max Tool Length: 17.7″
Tool Change Time: 0.9 Second
General:
Air Required: 90 psi, 4 scfm
Power: 220v / 3-Phase
Overall Dimensions: 195″ X 91″ x 106″ High Approx.
Weight: 21,384 lbs Approx.

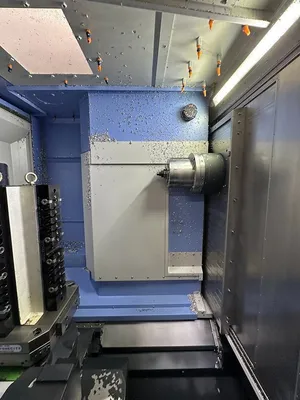

15,000 RPM High Torque Spindle

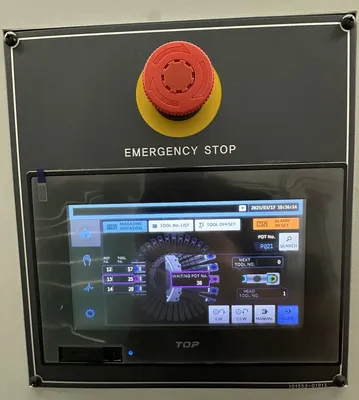

60 Station Automatic Tool Changer
Through Spindle Coolant - 300 psi
Renishaw RMP600 Spindle Probe
Renishaw RTS-AA Touch Trigger Tool Setter
LNS\Turbo, MF2, Rear Discharge, Filtering Chip Conveyor with Variable Speed Drive
