| X | 33.46" | 849.88 mm |
| Y | 21.65" | 549.91 mm |
| Z | 20.8" | 528.32 mm |
| # Axis | 5 | 5 |
| Power | 15 hp | 11.2 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-40 | CAT-40 |
| Control | CNC (Mazak) | CNC (Mazak) |
| Dimensions | 121 x 130 x 120 | 121 x 130 x 120 |
| Weight | 24250 lbs | 24250 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

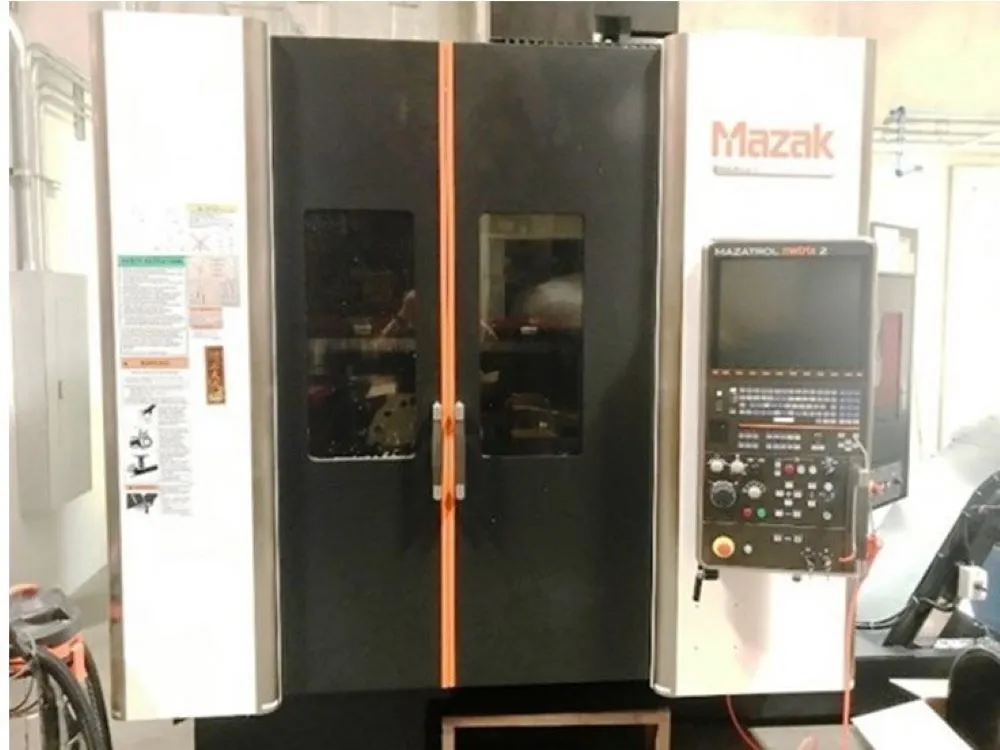

Mazatrol Matrix 2 CNC Control
5-Axis Simultaneous Machining

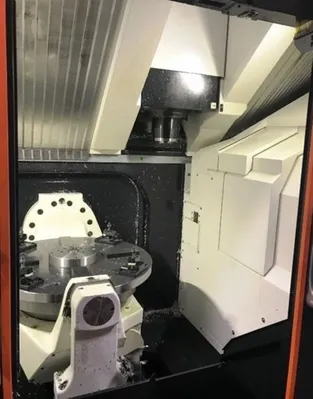

ø 23.62″ Trunnion Table
Full C Axis 0.0001° indexing increment Table Rotation
12,000 RPM High Speed Spindle
Table:
Table size: ø 23.62″
Max Workpiece Diameter: 28.74″
Max Workpiece Height: 17.72″
Max Weight on Table: 1102 lbs
Travel:
X Axis: 33.46″
Y Axis: 21.65″
Z Axis: 20.8″
A Axis: 210° (-120° +90°) ( Table Tilt )
C Axis: 360° (0.0001° indexing increment)( Table Rotate )
Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 15 HP
Tool Changer:
Capacity: 30 Tools
Taper: CAT-40
Max Tool Diameter: 3.54
Max Tool Length: 11.81
Max Tool Weight: 17.63 lbs
General:
Air Required: 80 psi, 4 scfm
Power: 40 kva / 3-Phase
Machine Dimensions: 121″ x 130″ x 120″ High Approx.
Weight: 24,250 lbs. Approx.
30 Station Automatic Tool Changer
CAT-40 Spindle Taper
Through Spindle Coolant – 213 PSI / 15KGF
Tool Probe / Auto Tool Length Measurement
Mist Collector
Ethernet Operation Function
Work Setting Error Compensation
High Pressure Coolant System
Chip Conveyor Right Disposal (Hinge / For Steel)
Books & Manuals
