| Table-W | 9" | 228.6 mm |
| Table-L | 49" | 1,244.6 mm |
| Travel-Long | 35.5" | 901.7 mm |
| Travel-Cross | 12.5" | 317.5 mm |
| Power | 2 hp | 1.5 kW |
| RPM | 4,200 RPM | 4,200 RPM |
| Taper | R8 | R8 |
| Dimensions | 66 x 63 x 86 Inches | 66 x 63 x 86 Inches |
| Weight | 2300 lbs | 2300 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
Machine base, knee and table are cast iron construction
Slideways are hardened and precision ground
Milling head can be tilted 90 degrees either right or left side
X, Y, Z axis are dovetail way
X, Y, Z axis are transmitted by precision feed lead screw with double nut
Capacity:
Maximum Table Longitudinal Travel (X-Axis): 35.5″
Maximum Table Cross Travel (Y-Axis): 12.5″
Maximum Knee Travel (Z-Axis): 16″
Maximum Overarm Travel: 16.25″
Maximum Spindle Travel: 5″
Drilling Capacities: (Cast Iron) 0.75″ | (Steel) 0.62″
Face Milling: 3”
End Milling: 0.75″

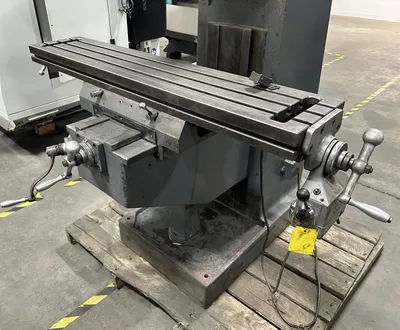

Table:
Working Surface: 9″ x 49″
T-Slot Number, Size: 3, 5/8″
Maximum Weight of Workpiece: 550 Lbs.
Spindle:
Number of Speeds: Variable

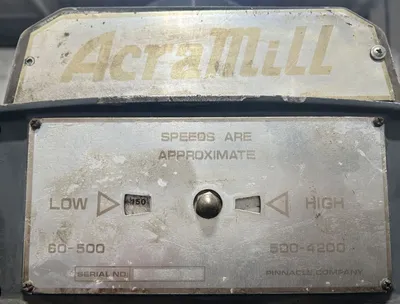

Range of Spindle Speeds : Low: 60 – 500 High: 500 – 4,200 RPM
Spindle Taper: R8
Diameter of Quill: 3-3/8″
Collet Capacity: 1/8″ ~ 5/8″
Spindle Feeds: .0015/.0003/.0006 inch/rev.
Spindle Travel: 5”
Spindle to Table: 2-3/4” ~ 17-1/2”
Spindle to Column: 5” ~ 17-3/8”
Horsepower: 2 HP
General:
Overall Machine Dimensions (WxDxH): 66″ x 63″ x 86″
Electrical: 220/440V, 3 phase, 60 Hz
Net Weight (approx.): 2300 lbs
