| X Axis | 50.7" | 1,287.8 mm |
| Y Axis | 26.1" | 662.94 mm |
| Z Axis | 25" | 635 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-50 | CAT-50 |
| Table-W | 26.37" | 669.8 mm |
| Table-L | 51.2" | 1,300.5 mm |
| # Axis | 3 | 3 |
| Control | CNC (Doosan Fanuc i-Series CNC Control) | CNC (Doosan Fanuc i-Series CNC Control) |
| Dimensions | 140″ x 100″ x 110″ High Approx. | 140″ x 100″ x 110″ High Approx. |
| Weight | 19840 lbs | 19840 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

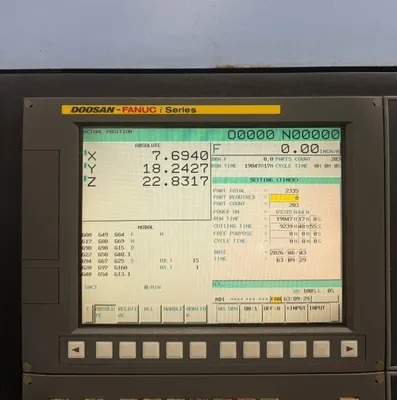

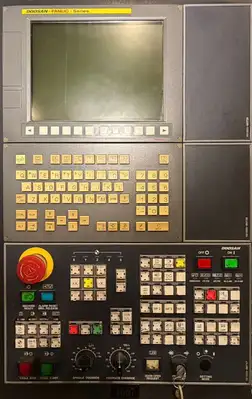

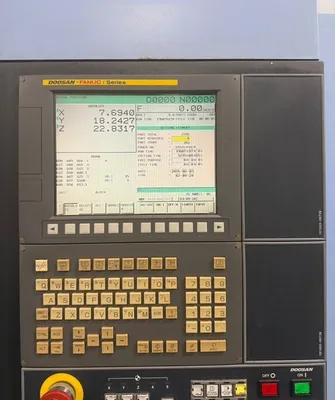

Doosan Fanuc i-Series CNC Control

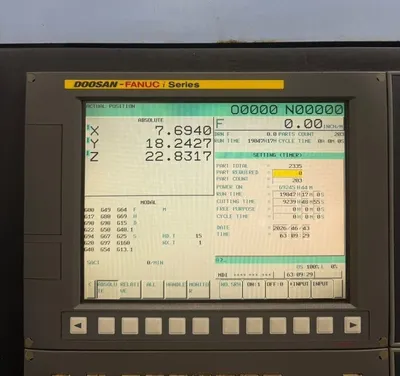

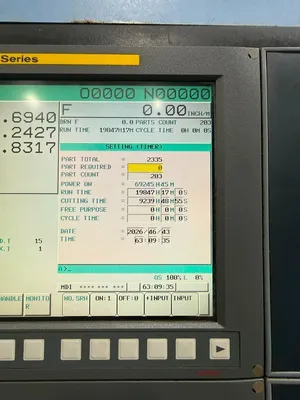

9,239 Hours Cutting Time
Box Way Construction
PCMCIA Interface
Rigid Tapping
Spindle Orientation
Travels:
X-Axis: 50.7″
Y-Axis: 26.1″
Z-Axis: 25″
Rapid Traverse Rates X & Y Axis: 1417 IPM
Rapid Traverse Rates Z Axis: 944 IPM
Cutting Feed Rates: 590 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 30.9″
Table:
Length: 51.2″
Width: 26.37″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 2200 lbs
Spindle:
Taper Size: CAT-50
Speed Range: 0 – 6,000 RPM
Spindle Type: Gear Head
Spindle Power: 30 HP
Automatic Tool Changer:
Capacity: 30 Tools
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.54″
Max Tool Length: 11.8″
Tool Changing Time: 1.3 Seconds
General:
Air Required: 80 psi 4 scfm

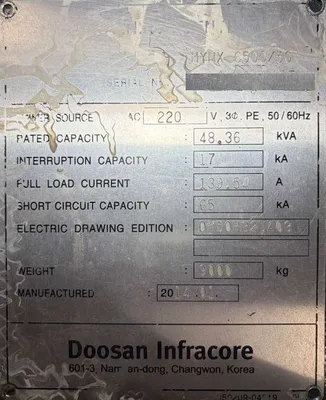

Power: 220v / 48.36 kva / 3-Phase
Overall Dimensions: 140″ x 100″ x 110″ High Approx.
Weight: 19,840 lbs Approx.
6,000 RPM Precision Spindle
30 Station Automatic Tool Changer
CAT-50 Taper Spindle
Through Spindle Coolant
Renishaw Receiver Installed
MPG Handwheel Control
High Pressure Coolant
Coolant Tank
Spindle Chiller Unit
Chip Conveyor
