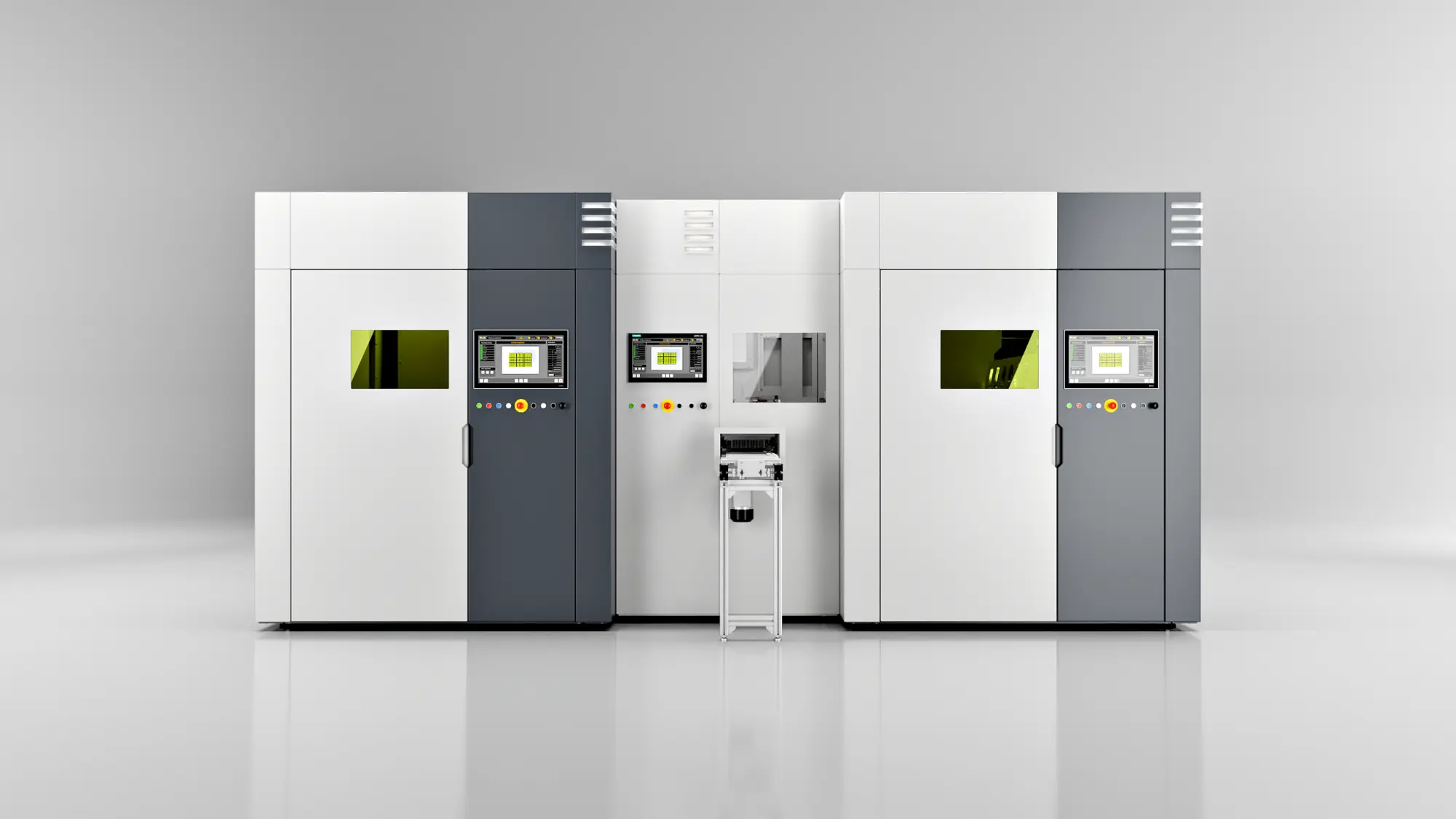

NEW RMA Battery Welder Max
Overview
Description
Fully automatic solution for welding battery modules.
Battery Welder Max is a cutting-edge, high-performance laser welding system engineered for seamless integration into fully automated battery production lines. Its robust, automated design ensures maximum throughput and exceptional consistency, ideal for high-volume manufacturing environments.
Customizable to meet specific production requirements, Battery Welder Max can be optimized for various battery module configurations, ensuring peak efficiency and productivity. Featuring advanced automation technology, the system significantly reduces cycle times and enhances overall production efficiency, making it the perfect choice for manufacturers seeking precision, reliability, and scalability.
Specifications
Machine dimensions: (LxWxH) 2350x3400x2700 mm
Working pressure: min. 5 bar
Machine power: 15 kWWeight: 3600 kg
Axis movement speed (max.): 1500 mm/s
Welding speed (max.): 2000 mm/s
Work area:** max. 1000x800 mm, max. height 300 mm
