USED 2015 P/A INDUSTRIES SRF-12; SS127; SRA4524
Overview
Description
This used 12" x .125" x 4,500 lb servo coil feed line from P/A Industries is designed for efficient coil feeding in industrial settings. Comprising a feeder, straightener, and uncoiler, it is tailored to streamline metal processing operations. The feeder, model SRF-12 Servo Feed, includes a control system (PAK350.4) and features a roll diameter of 3.55" with a maximum roll opening of .138". It can handle material thickness up to .138" at 11.8" width, offering a peak pulling power of 584 lbs and a continuous pulling power of 201 lbs.
The straightener, model SS127, supports widths up to 12" and includes 7 motorized straightening rolls with integrated controls, ensuring smooth and precise material handling. The uncoiler, model SRA4524, accommodates a maximum load of 4,500 lbs with stock width capability of 24", a coil inner diameter range of 15.7" - 20.5", and a maximum outer diameter of 60". It operates at variable speeds from 3 to 15 RPM, powered by a 1 HP drive motor.
This equipment is ideal for operations requiring reliable performance and adaptability to varying material widths and thicknesses, making it suitable for diverse industrial feeding applications.
Specifications

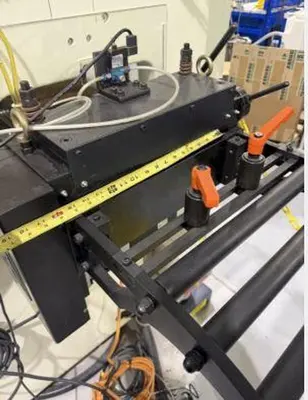

FEEDER MODEL: SRF-12 SERVO FEED
FEEDER SERIAL: 201404-08140

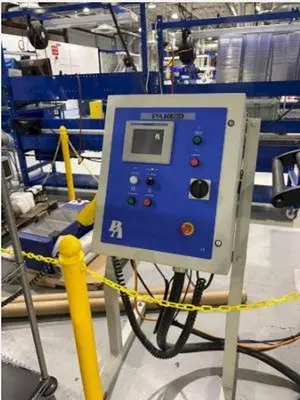

CONTROL: PAK350.4
ROLL DIAMETER: 3.55"
ROLL OPENING: .138" MAX
THICKNESS: .138" @ 11.8"
PULLING POWER: 584 LBS PEAK/201 LBS CONTINUOUS

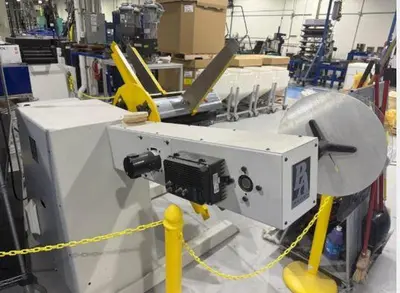

STRAIGHTENER MODEL: SS127
STRAIGHTENER SERIAL: 201409-08349
CAPACITY: 12" WIDE
STRAIGHTENING ROLLS: 7
MOTORIZED: YES
CONTROLS: YES

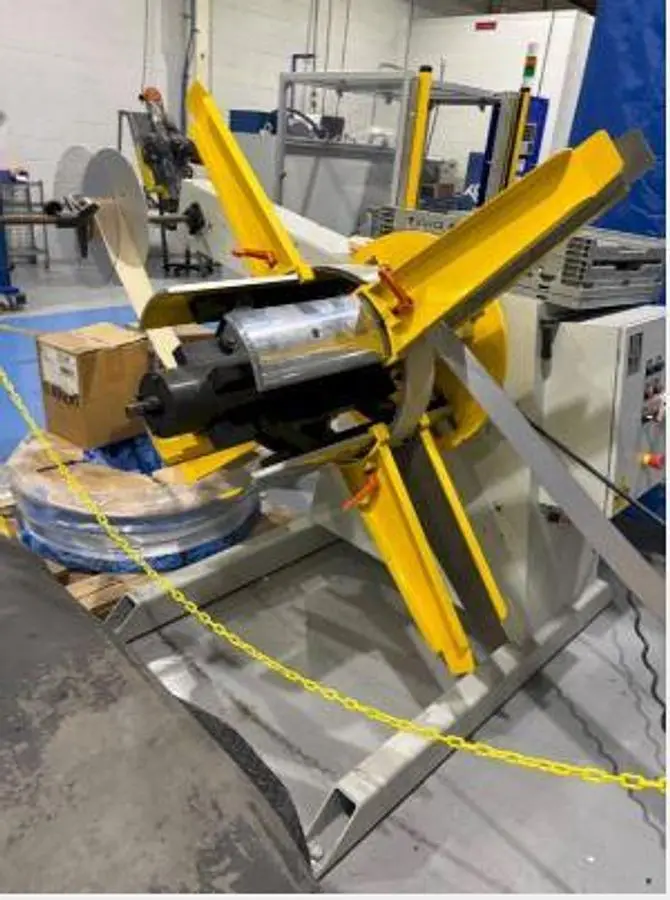

UNCOILER MODEL: SRA4524
UNCOILER SERIAL: 201405-08149
MAX CAPACITY: 4500 LBS
STOCK WIDTH: 24"
COIL ID RANGE: 15.7" - 20.5"
COIL OD: 60"
MOTORIZED: YES
SPEED: 3 - 15 RPM
DRIVE MOTOR: 1 HP
