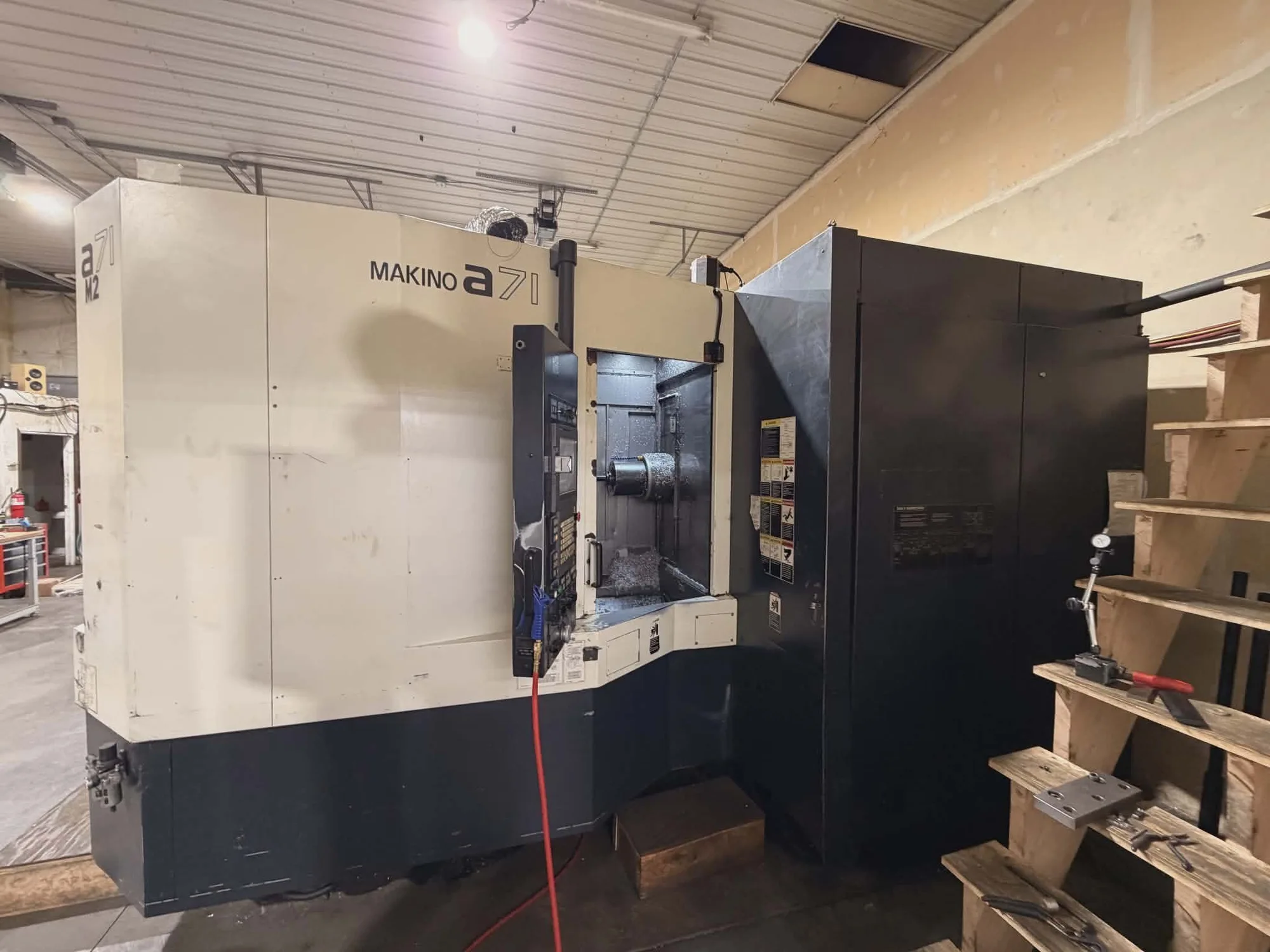

Used Horizontal machining center. Equipped with Fanuc CNC control, a 60-tool auto changer, and a powerful 10,000 RPM spindle, it handles up to 1,543 lbs.
| X | 28.7" | 728.98 mm |
| Y | 28.7" | 728.98 mm |
| Z | 31.5" | 800.1 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT 50 | CAT 50 |
| Pallet-W | 19.7" | 500.38 mm |
| Pallet-L | 19.7" | 500.38 mm |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
Axis Travel: 28.7″
Y-Axis Travel: 28.7″
Z-Axis Travel: 31.5″
Pallet Size: 19.7″ x 19.7″
Max. Payload: 1,540 lbs.
Max. Workpiece Size: 31.5″ x 39.4″
Max. Workpiece Weight: 1,543 lbs.
Spindle Speed: 10,000 RPM
Spindle Taper: Cat 50
ATC: 60
Tool Change Time Tool to Tool: 1.7 seconds
Tool Change Time, Chip to Chip: 3.2 seconds
Max. Tool Length: 17.7″
Max. Tool Diameter (w/ adjacent pockets empty): 11.8″
Max. Tool Weight: 44 lbs.
Cutting Feedrate: 1969 IPM
Rapid Traverse (X, Y, Z): 1969 IPM
Fanuc CNC Control
Auto Tool Changer- 60 Tools
Chip Conveyor and Tank
Chip Blaster Coolant Through Spindle- 300 psi
Full 4th Axis
