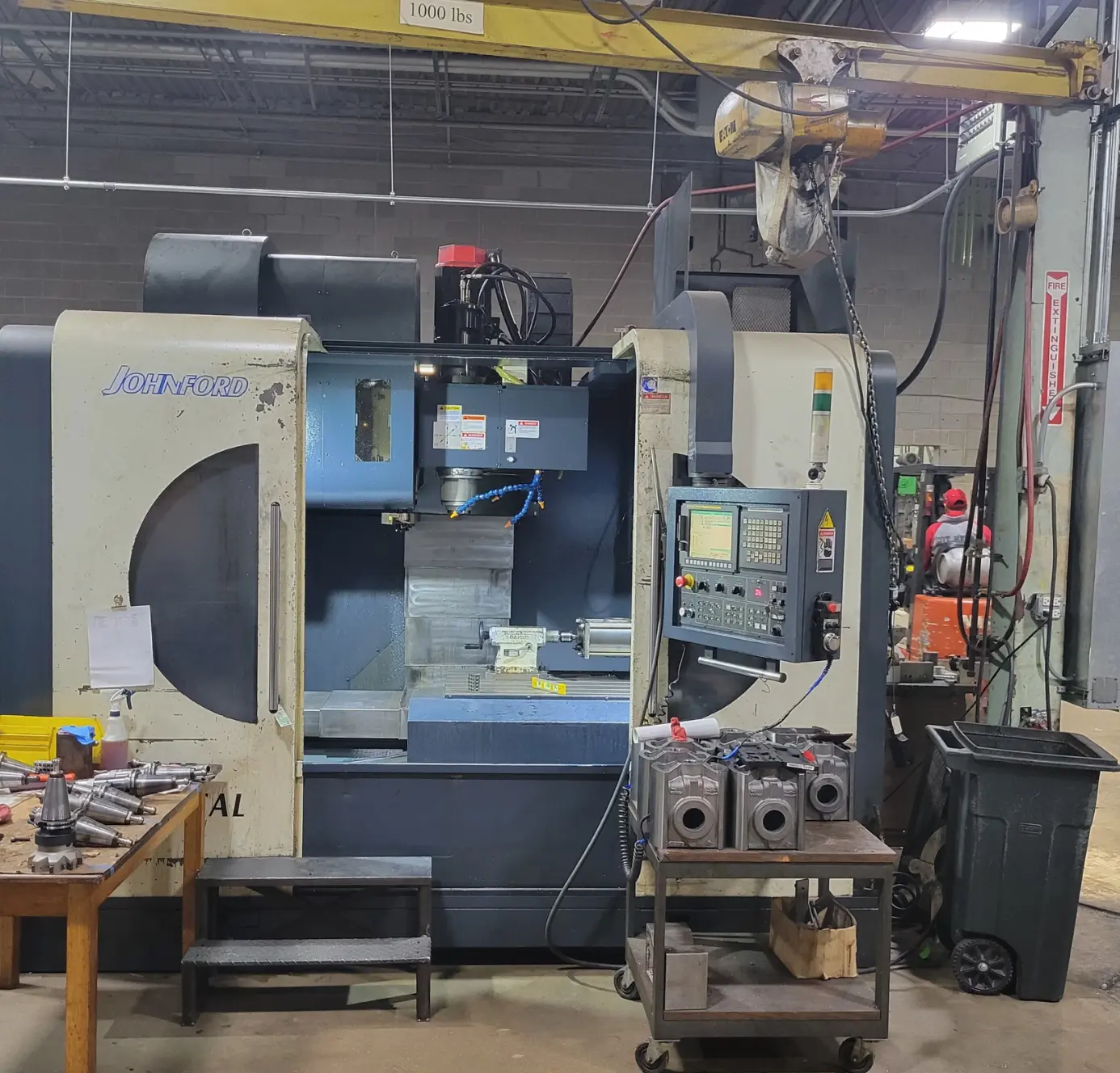

USED 2012 JOHNFORD SV-48H

Ohio, United States
1,560Listings|431Followers
Overview
Vertical Machining Centers

Vertical Machining Center in used condition. Features 48" X, 28" Y, 24.8" Z, 20 hp power, 6,000 RPM, 20 ATC, CAT-50 taper, and 4-axis capability. Equipped with Ganro 4th axis, high-pressure coolant, rebuilt spindle, work lights, and chip augers.

Specs
X
48"
1,219.2 mm
Y
28"
711.2 mm
Z
24.8"
629.92 mm
Power
20 hp
14.9 kW
RPM
6,000 RPM
6,000 RPM
# ATC
20
20
Taper
CAT-50
CAT-50
Table-W
27.6"
701.04 mm
Table-L
51.2"
1,300.5 mm
# Axis
4
4
Control
CNC (Fanuc)
CNC (Fanuc)
Dimensions
140"x140"x86"
140"x140"x86"
Weight
21,000 lbs
21,000 lbs
Equipped With

Ganro 4th Axis Rotary Table W/ Ganro Tailstock
High Pressure Thru Spindle Coolant
Rebuilt Spindle 02/2023
Work Lights
Chip Augers
