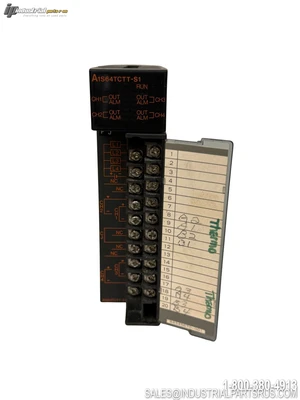

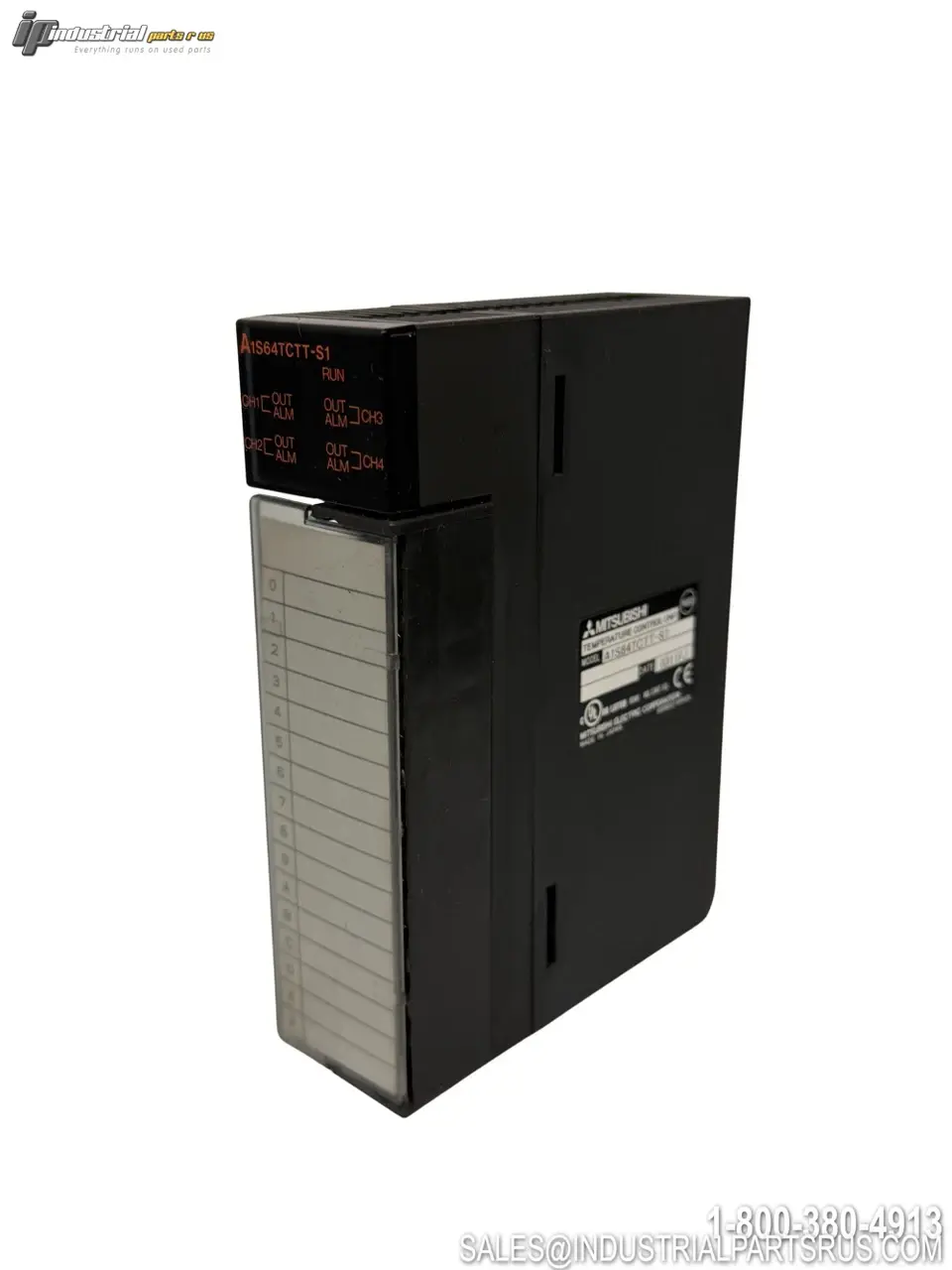

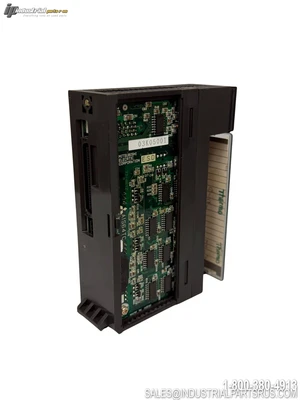

USED MITSUBISHI A1S64TCTT-S1

The A1S64TCTT-S1 is a Mitsubishi Electric temperature control module from the MELSEC-A Series, offering precise temperature measurement and control with four thermocouple input channels and transistor outputs. The A1S64TC series component is a kind of temperature controller combined with ANS series CPU. Components with temperature measurement input and built-in PID algorithm control output, Can be used in a variety of temperature control occasions. Designed to integrate with MELSEC-A programmable controller systems, it supports thermocouple inputs and PID control for industrial temperature regulation.
Specification
Value
Brand
Mitsubishi
Model/Part Number
A1S64TCTT-S1
Product Type
Temperature Control Module
Series
MELSEC-A
Number of Channels
4 Channels
Input Type
Thermocouple
Supported Thermocouples
R, K, J, T, S, B, E, N, U, L, PL II, W5Re/W26Re
Control Output
Transistor Output
I/O Occupied Points
32 Points
Connection Terminal
20 Points Terminal Block
Supported Cable Size
0.75 to 1.5mm²
Sampling Cycle
0.5 s/4 channels
Dimensions
130(H) × 34.5(W) × 93.6(D) mm
Weight
0.3 kg
Control Algorithm
Built-in PID
We warranty all items for 30 days from date of purchase.

SKU: AI1375
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Output Type: Transistor
Sensor Type: Thermocouple
Manufacturer: Mitsubishi
Part Number: A1S64TCTT-S1
Shelf: K-3
Model: A1S64TCTT-S1
MPN: A1S64TCTT-S1
Type: Temperature Controller
