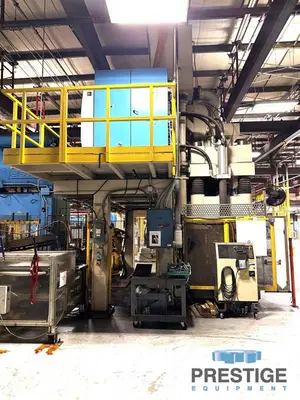

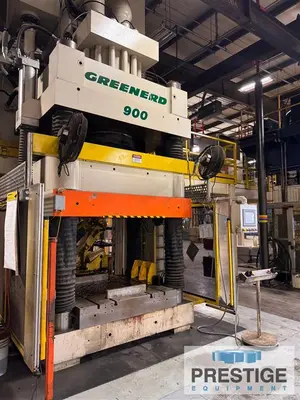

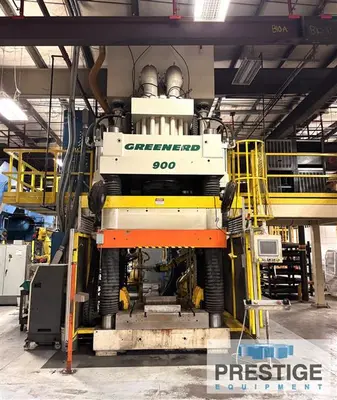

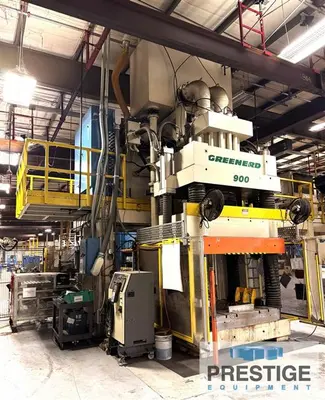

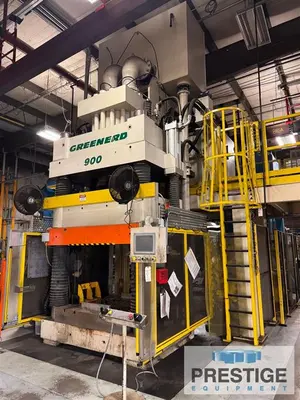

USED 2017 GREENARD PRESS & MACHINE 4TA-900/700-60X60

CAPACITIES:
Main Cylinder: 180 - 900 Tons
Cushion Cylinder: 140 - 700 Tons
Main Cylinder Work Area: 60" x 60"
Bed Bolster: 60" x 60"
Main Cylinder Open Height: 51"
Main Cylinder Stroke, Adjustable: 24"
Main Cylinder Shut Height: 27"
Main Cylinder Ram Diameter: 24"
Cushion Cylinder Platen: 48" L-R x 36" F-B
Cushion Cylinder Stroke: 19"
Cushion Cylinder Open Height: 36"
Estimated Overall Weight: 150,000 Lbs.

SPEEDS:
Main Cylinder Rapid Advance: 1382 IPM
Main Cylinder Pressing: 53 IPM
Main Cylinder Fast Return: 1440 IPM
Cushion Cylinder Extend: 607 IPM
Cushion Cylinder Retract: 485 IPM

Equipped With:
Allen Bradley 10-1/2" Color Electronic Press Control
Upper Cylinder Blank Holder
Motors; 25, 50, 125 Soft Start, 1800 RPM
Water Cooled Heat Exchanger
Fanuc Loading Robot

NOTE:
Inspect in Illinois Plant
Full Specifications and Drawings on Request
** New Cost in 2017 $1,130,060.00 **

Features:
Allen Bradley 10-1/2" Color Electronic Press Control
Upper Cylinder Blank Holder
Motors; 25, 50, 125 Soft Start, 1800 RPM
Water Cooled Heat Exchanger
Fanuc Loading Robot
