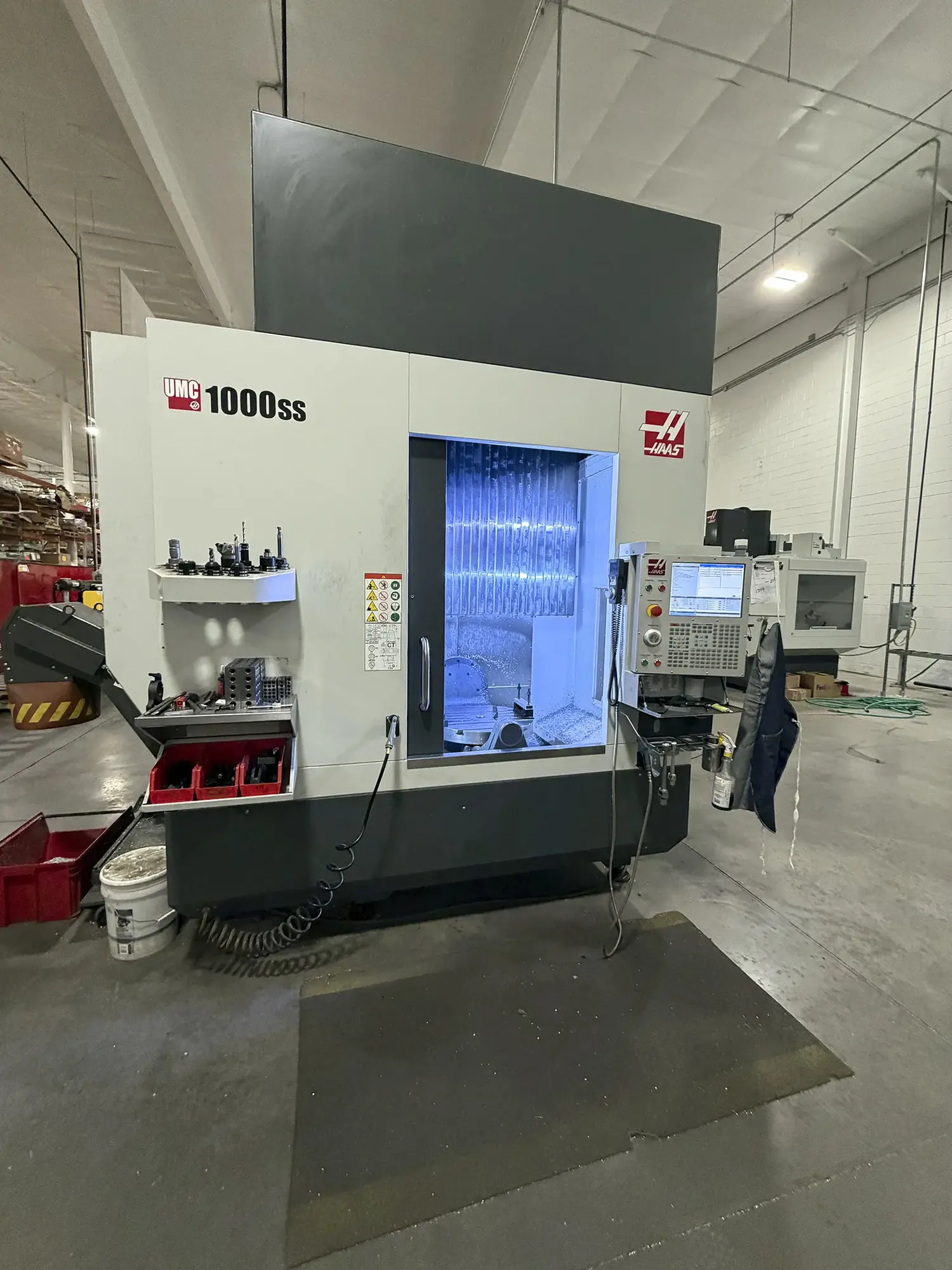

USED 2020 HAAS UMC-1000SS
Overview
Excellent Condition! Available For Inspection!
Maximize productivity with this Haas UMC-1000SS 5-axis machining center (2020), engineered for complex, multi-sided parts in a single setup. Ideal for aerospace, automotive, medical, and mold & die applications, it delivers high-speed, high-precision machining of intricate geometries, impellers, cylinder heads, and detailed components while reducing setups and improving overall efficiency.
Specs
X Axis: 40 in
Y Axis: 25 in
Z axis: 25 in
Spindle Nose to Platter (min/max): 4 in / 29 in
Max Rating: 30 hp
Max Speed: 12000 rpm
Max Torque: 90 ft-lbf @ 2000 rpm
Taper: CT40
B-Axis Tilt: 120 ° to 35- °
Max Tilt Speed: 170 °/sec
Torque (Continuous): 2240 ft-lbf
Brake Torque: 2000 ft-lbf

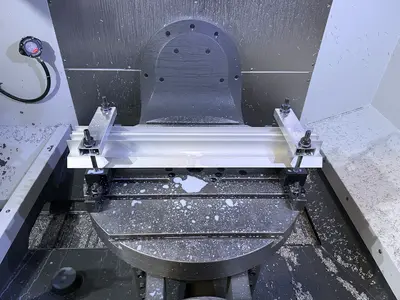

C axis rotation: 360 °
C Axis - Max Tilt Speed: 179 °/sec
C Axis - Torque (Continuous): 1854 ft-lbf
C axis - Brake Torque: 900 ft-lbf
Max Part Swing: 34 in
Max Cutting Feedrate: 833 ipm
Rapids X/Y/Z: 1200 ipm
Max Thrust X/Y: 3300 lbf
Max Thrust Z: 4050 lbf
Equipped With

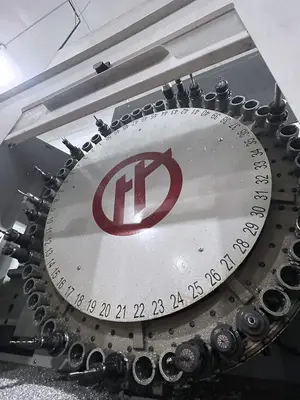

High-Speed 50+1 Side-Mount Tool Changer

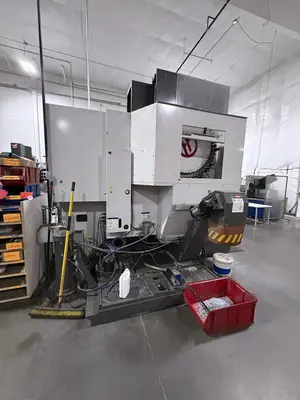

Belt-Type Chip Conveyor
95-Gallon Coolant Tank
Auxiliary Coolant Filter
Through Spindle Coolant
Programmable Coolant Nozzle
High Intensity Lighting

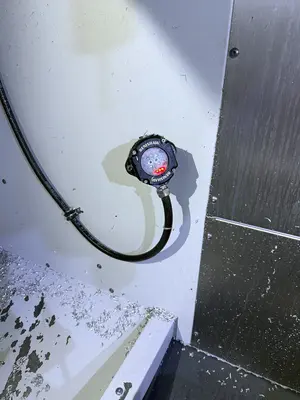

Wireless Intuitive Probing System (WIPS)
CNC Control Cabinet Cooler
Power Surge Protection
Early Power-Failure Detection Module
Second Home Position
ECO Mode
Advanced Tool Management
Media Display M-Code; M130
HaasConnect: Remote monitoring
Safe Run
HaasDrop
Standard High-Speed Machining
Dynamic Work Offsets and Tool Center Point Control
Rigid Tapping
1GB Program Memory
