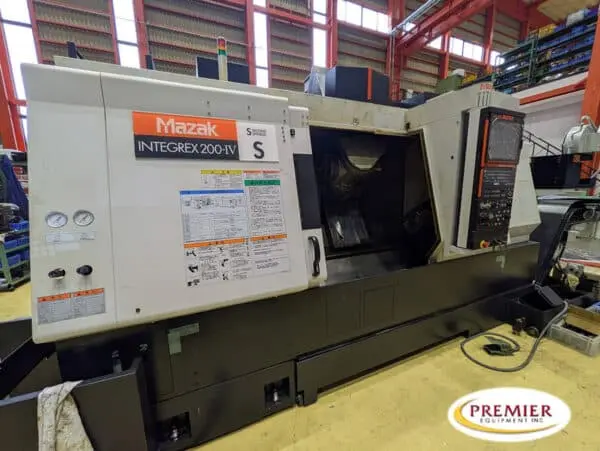

Mazak Integrex 200-4S – 2008

Mazak Integrex 2004S CNC Turning / Milling Center with Sub-Spindle & Y-Axis

Maximum Swing……………………… 26″
    NOTE: Tool eye body may limit max. swing.
  Maximum Swing over Carriage…………. 19.5″ -26″
    NOTE: Depends upon workpiece length,
          tool magazine type and Y axis position
  Maximum Cutting Diameter: Chucking…… 26″
  Maximum Cutting Length……………… 40″
  Maximum Distance Between
    Standard Chuck Faces……………… 41.14″

  Magazine Capacity………………….. 80 Tools
  Rotary Tool Spindle Speed…………… 12,000 RPM
  Rotary Tool Spindle Horsepower (20% ED). 25 H.P. (A.C.)

Mazatrol Matrix Control
Chip Conveyor
Sub Spindle
Milling
(2) Kitagawa HW-08 4-Jaw Hydraulic Chucks
80 ATC
