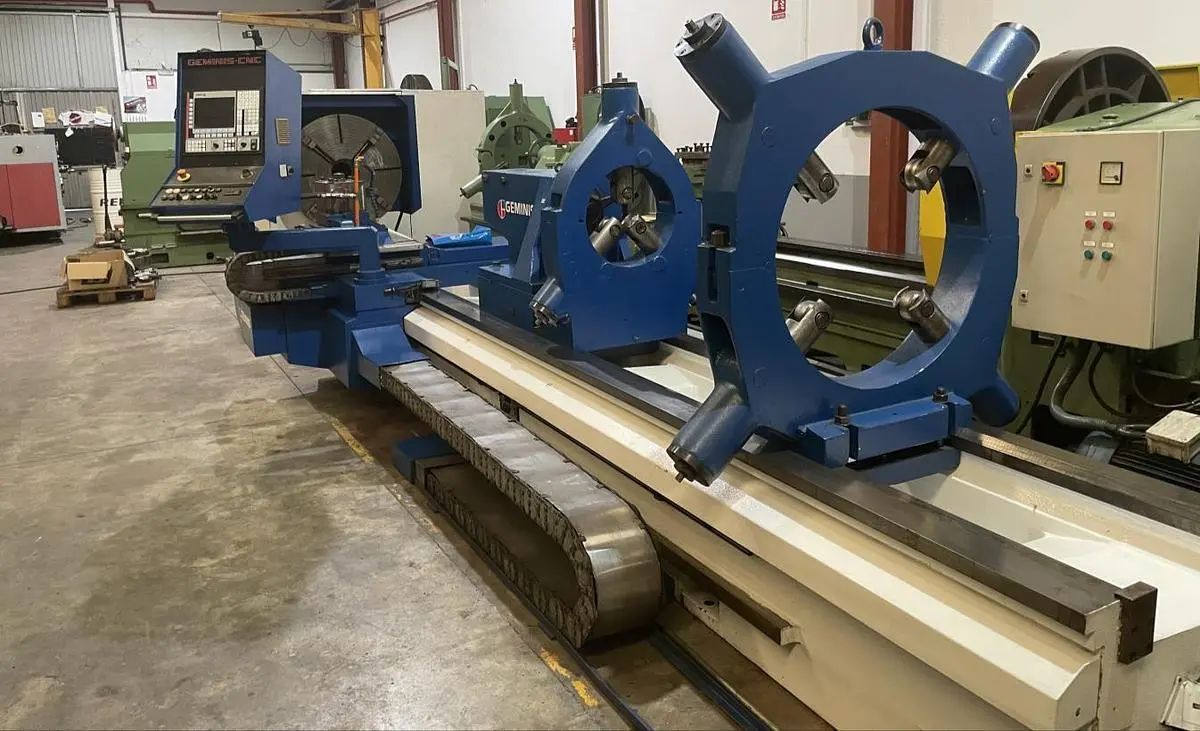

USED 1997 GEMINIS CNC PLUS 7/6000
Overview

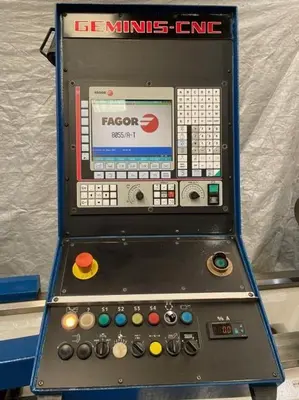

Fagor 8055 CNC Control

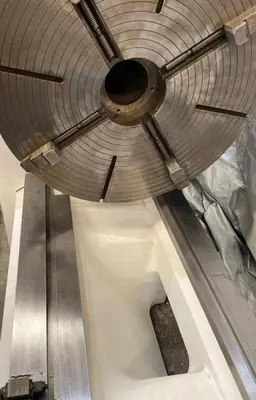

1000 mm 4-jaw chuck
600 mm 4-jaw chuck

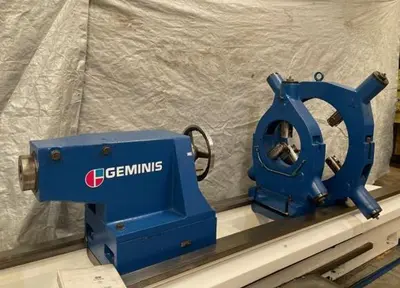

2 fixed steady rests

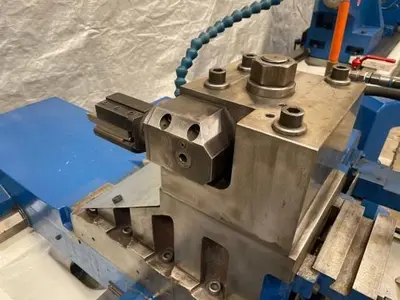

Manual turret (optional Sauter automatic turret)

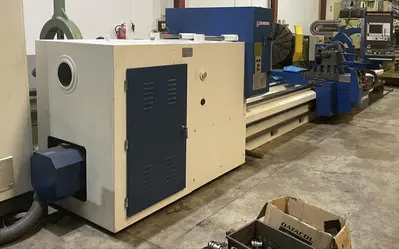

Chip extractor
Workpiece weight between centers 10,000 kg
Workpiece weight between supports (1 support) 12,500 kg
Workpiece weight between supports (2 supports) 15,600 kg
4 Speed Ranges:
Speed range I 0–100 rpm
Speed range II 0–200 rpm
Speed range III 0–400 rpm
Speed range IV 0–800 rpm
Specs
Manufacturer: Geminis
Model: CNC PLUS 7/6000
Year: 1997
Condition: Used
Stock Number: 5654360
Between centers: 6,000 mm
Capacity between centers, without steady: 10,000 kg
Swing over bed: 1,100 mm
Swing over slide: 740 mm
Chuck speed, 4 speed: 800 rpm
Tailstock diameter: 180 mm
Tailstock quill stroke: 300 mm
Longitudinal cross travel: 1,200 mm
Center height: 550 mm
Table width: 800 mm
Bench height: 650 mm
Main motor power S1/S6: 42 kW
Max torque: 10,800 Nm
Main shaft nose: DIN 55026-11
Cross carriage travel: 680 mm
Longitudinal carriage rapid traverse: 8 m/min
Rapid traverse of cross-slide: 6 m/min
Machine weight: 15,000 kg
