USED PAUL O ABBE SBM-0.25

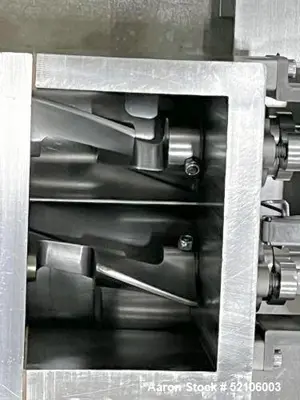

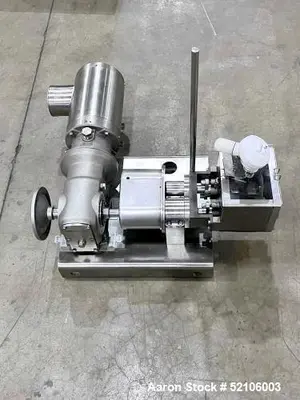

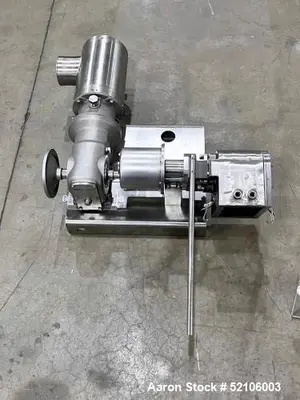

New and In-Stock Paul O. Abbe Model SBM-0.25 Laboratory Sigma Blade Mixer. .25 Gallon Working Capacity. Double U" shaped bowl casting machined on center line. Removable idle end allows blades to be removed. 304 SS. Rated Vacuum Internal. Internal and External welds are continuous, ground smooth, flush and pit free. Internal Surface is 180 Grit, 20-30 Ra. External Surface is Glass Bead Blasted. Free flowing open jacket with baffles for even distribution of heating media. Jacket is constructed of 304 SS and rated 14.7 psig @ 400 Deg. F with NPT Connections. Insulation Shroud is 1" Chloride Free Rock Wool with welded SS Shroud. Cover is a Clear Lexan design with Manual Clamps and Safety Switch. Thermowell is mounted through the Lexan Cover. Manual Tilt to Approx. 105 Degrees. Blades are Cast 304 SS Tangential Sigma Design. Four (4) PTFE packing glands with adjustable stainless-steel followers. Four (4) sealed roller bearing on the drive side only. Driven by a HP all stainless steel motor and stainless steel reducer. 304 SS Support Frame. Controls are NEMA 4X Stainless Steel and Supplied Loose. Includes- HP ABB VFD, Speed control potentiometer, RPM readout (front blade speed), Product temperature readout, Start/stop push buttons, Dual pushbuttons for discharge (see drawing below), Forward/reverse switch, Integration of limit switch on cover, Electrical input: 460 volt, 3-phase, 60 Hz, Dimensions 12" W X 24" H x 24". This Mixer is Brand New and In-Stock. Ready for Immediate Delivery and comes with a 1 Year Warranty. It can be inspected under power in our shop in Belvidere, IL.

Used Equipment Facts About This Machine
Manufacturer Info
Paul O. Abbe is a U.S.-based manufacturer specializing in mixing, blending, drying, and size reduction equipment for industrial and laboratory applications. The company is known for high-quality sigma blade mixers, ribbon blenders, ball mills, and custom process equipment used in pharmaceutical, chemical, food, and advanced materials industries.
Description
Brand new and in-stock Paul O. Abbe Model SBM-0.25 laboratory sigma blade mixer with 0.25 gallon working capacity. Designed for high-viscosity mixing applications, this unit features a double “U” shaped 304 stainless steel bowl, tangential sigma blades, and a vacuum-rated construction. Equipped with a jacketed vessel for precise heating, ABB VFD controls, and a Lexan safety cover with integrated thermowell and safety switch. Unit is mounted on a stainless steel frame with manual tilt discharge and is ready for immediate delivery with full warranty.
Specifications

Manufacturer: Paul O. Abbe
Model: SBM-0.25
Capacity: 0.25 gallon working capacity
Material: 304 Stainless Steel
Mixer Type: Sigma blade / double arm mixer
Bowl Design: Double “U” shaped, centerline machined
Blades: Cast 304 SS tangential sigma design
Surface Finish (Internal): 180 grit, 20–30 Ra
Surface Finish (External): Glass bead blasted
Vacuum Rating: Internal vacuum rated
Jacket: Open jacket with baffles for even heating
Jacket Rating: 14.7 psig @ 400°F
Insulation: 1" chloride-free rock wool with SS shroud
Cover: Clear Lexan with manual clamps & safety switch
Thermowell: Mounted through cover
Discharge: Manual tilt to approx. 105°
Packing: 4 PTFE packing glands with SS followers
Bearings: 4 sealed roller bearings (drive side)
Motor: ½ HP stainless steel motor
Drive: Stainless steel reducer
Frame: 304 stainless steel support frame

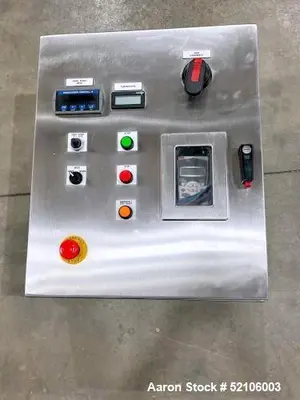

Controls: NEMA 4X stainless steel (loose)
VFD: ½ HP ABB variable frequency drive
Features:

Speed control potentiometer
RPM readout (front blade)
Product temperature display
Start/stop push buttons
Dual discharge pushbuttons
Forward/reverse switch
Cover limit safety integration

460V / 3 Phase / 60 Hz
Dimensions: 12” W x 24” H x 24”
Condition: New, in-stock
Warranty: 1 Year
Location: Belvidere, Illinois (available for inspection under power)

Applications

High viscosity mixing
Adhesives and sealants
Rubber and elastomers
Pharmaceutical pastes
Cosmetic creams and gels
Food dough and thick formulations
Chemical compounding
R&D and laboratory batch processing

Products This Would Be Used For

Adhesives
Sealants
Silicone compounds
Rubber blends
Polymer pastes
Cosmetic creams
Ointments
Food doughs
Battery slurries
Specialty chemical compounds
