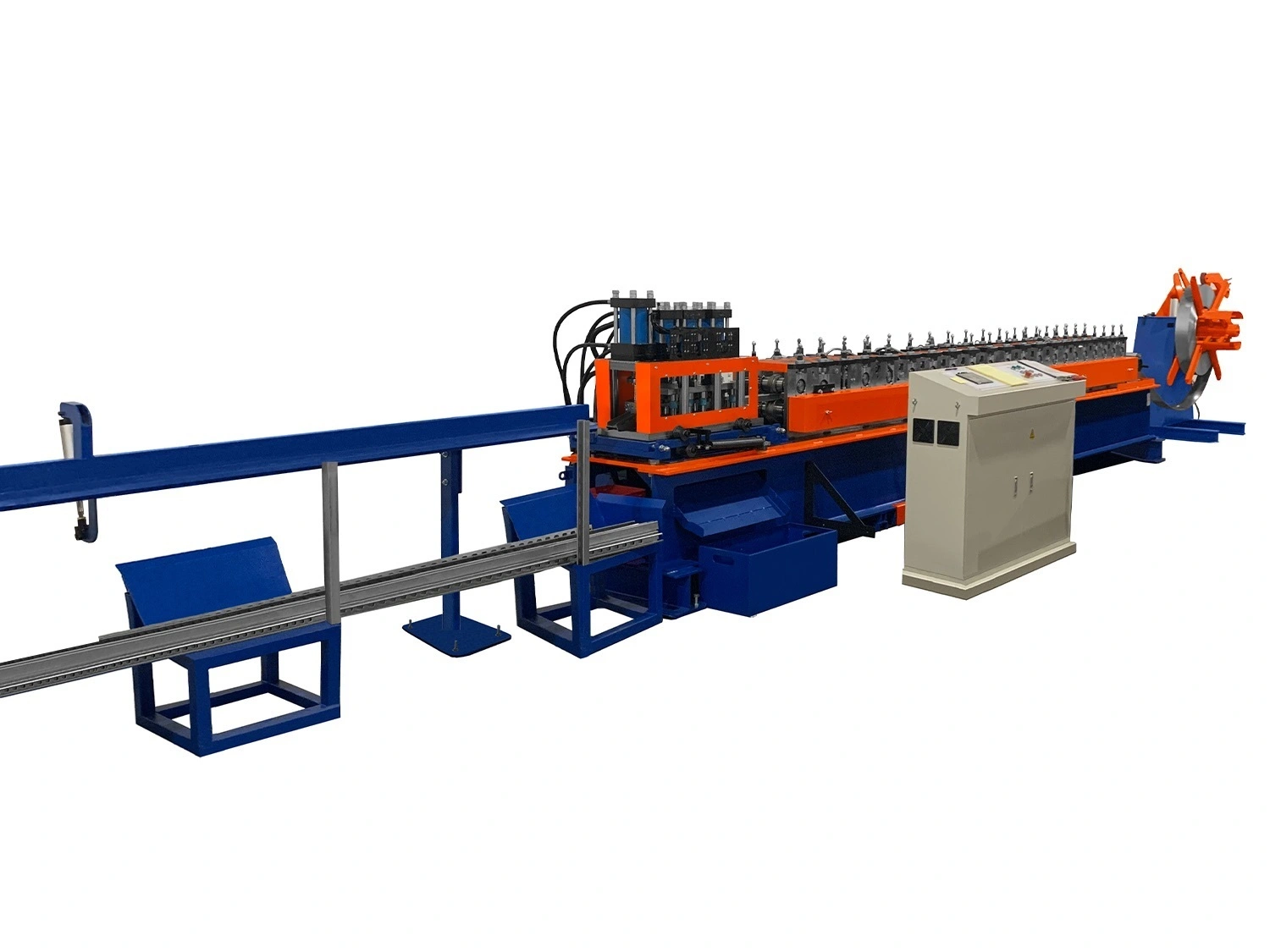

Strut Pro is an Automated Strut Fabricating Machine that gives the capacity to produce larger Strut Profiles
| Number of Stands | 19 | 19 |
| Power | 20 hp | 14.9 kW |
Automated Strut Fabricating Machine consisting of Roll Former, Punch, Decoiler, and Runout rack :
Brand: PROFAB
Model: Strut Pro
Type: Strut Fabricating Machine
Strut Sizes: 1 5/8″ and/or 5/8″ struts.
Production speed: 20 feet per minute
Capacity: 12GA
Power Input: Available in 230 Volt (120A) 3-phase and 460 Volt (96A) 3-phase
Hydraulic System: 20 hp
Measuring Accuracy: +/- 0.010 in/ft
Hydraulic Cutting Die
Roll Tooling and Die Lubrication System
Programable Lengths from 6″ to 240″ in 2″ increments
Programable Hole Punches (continuous, ends only, no holes)
Smart Punch cut limits cutting to in between holes
Logo forming head available for custom logos on strut
Power Decoil:
Capacity: 6,600 lbs.
Run-Out Rack:
Pneumatic operated, with output profiles collecting cradle.
