Okuma Genos L200E-MY Live Tool CNC Lathe (2016), Excellent, Holding Tenths
| size | 6" Chuck | 6" Chuck |
| Swing | 7.72" | 196.09 mm |
| Machining Length | 14.96" | 379.98 mm |
| # Axis | 3 | 3 |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 2.05" | 52.07 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 7.87" | 199.9 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |

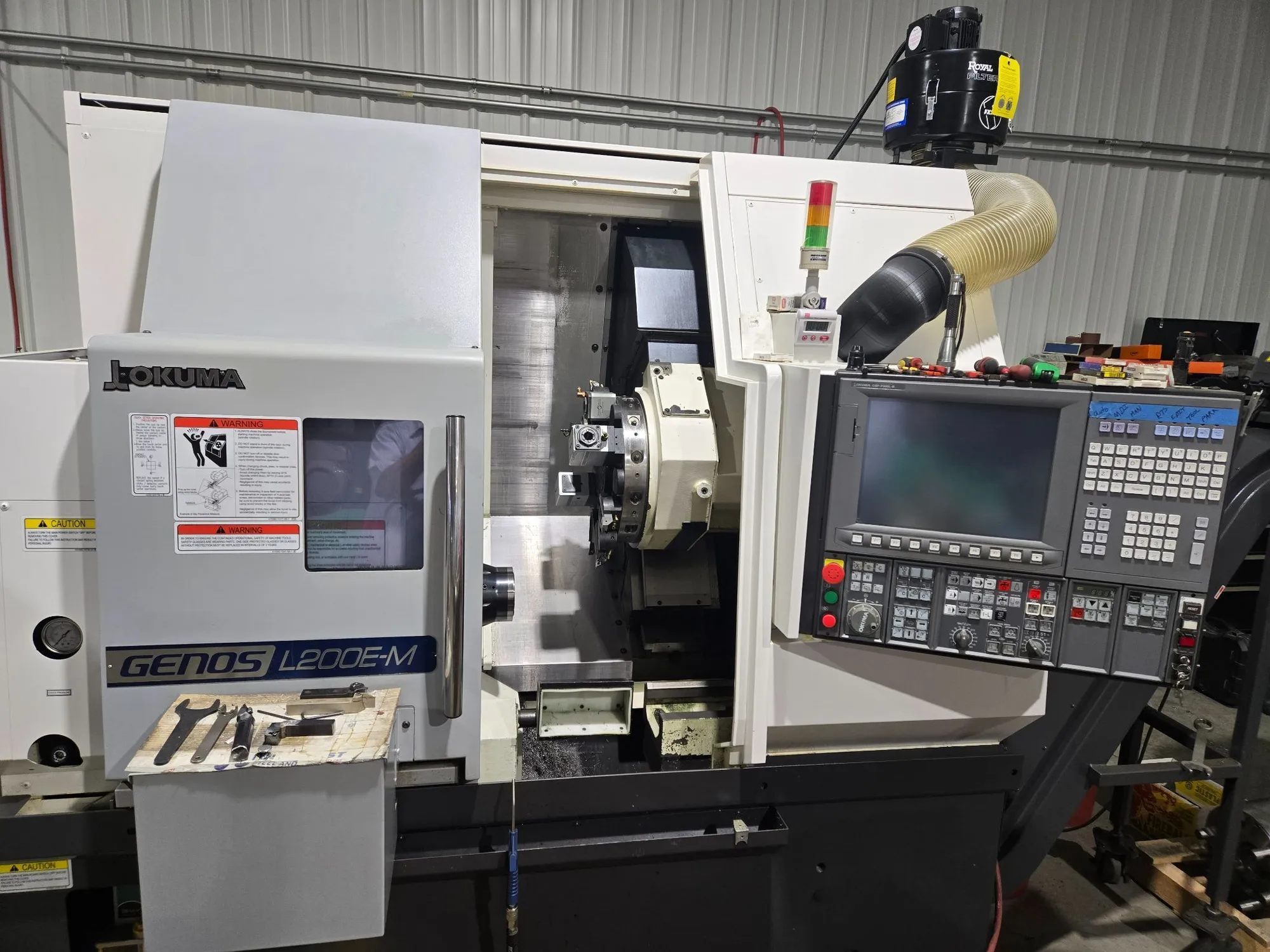

Okuma Genos L200E-MY Live Tool CNC Lathe (2016)
Max Turning Diameter: 200 mm (7.87 in)
Max Turning Length: 380 mm (14.96 in)
Swing Over Bed: 450 mm (17.72 in)
Bar Capacity: 52 mm (2.05 in)
Chuck Size: 8 inches (210 mm)
Spindle & Milling Performance
Spindle Speed: 4,500 RPM
Spindle Motor: 11 kW (15 hp) peak; 7.5 kW (10 hp) continuous
Milling Speed: 6,000 RPM (Driven tools)
Milling Motor: 4 kW (5.4 hp)
C-Axis: 360° with 0.001° indexing
Axis Travels & Turret
X-Axis Travel: 165 mm (6.5 in)
Y-Axis Travel: 80 mm (3.15 in) [±40 mm]
Z-Axis Travel: 400 mm (15.75 in)
Turret Stations: 12-position VDI turret (all stations capable of milling)
Rapid Traverse: 20 m/min (X) and 25 m/min (Z)
C and Y axis milling
Hardinge flex 65 dead length collet head
6 inch kitigawa chuck used once
Parts catcher
Touch setter
5 live tooling heads
15 collects. 1/4 to 2-1/2
Advanced I G F. Programing
Super nurse
Royal mist collector system
Tail stock
Chip Conveyor
Dxf input
