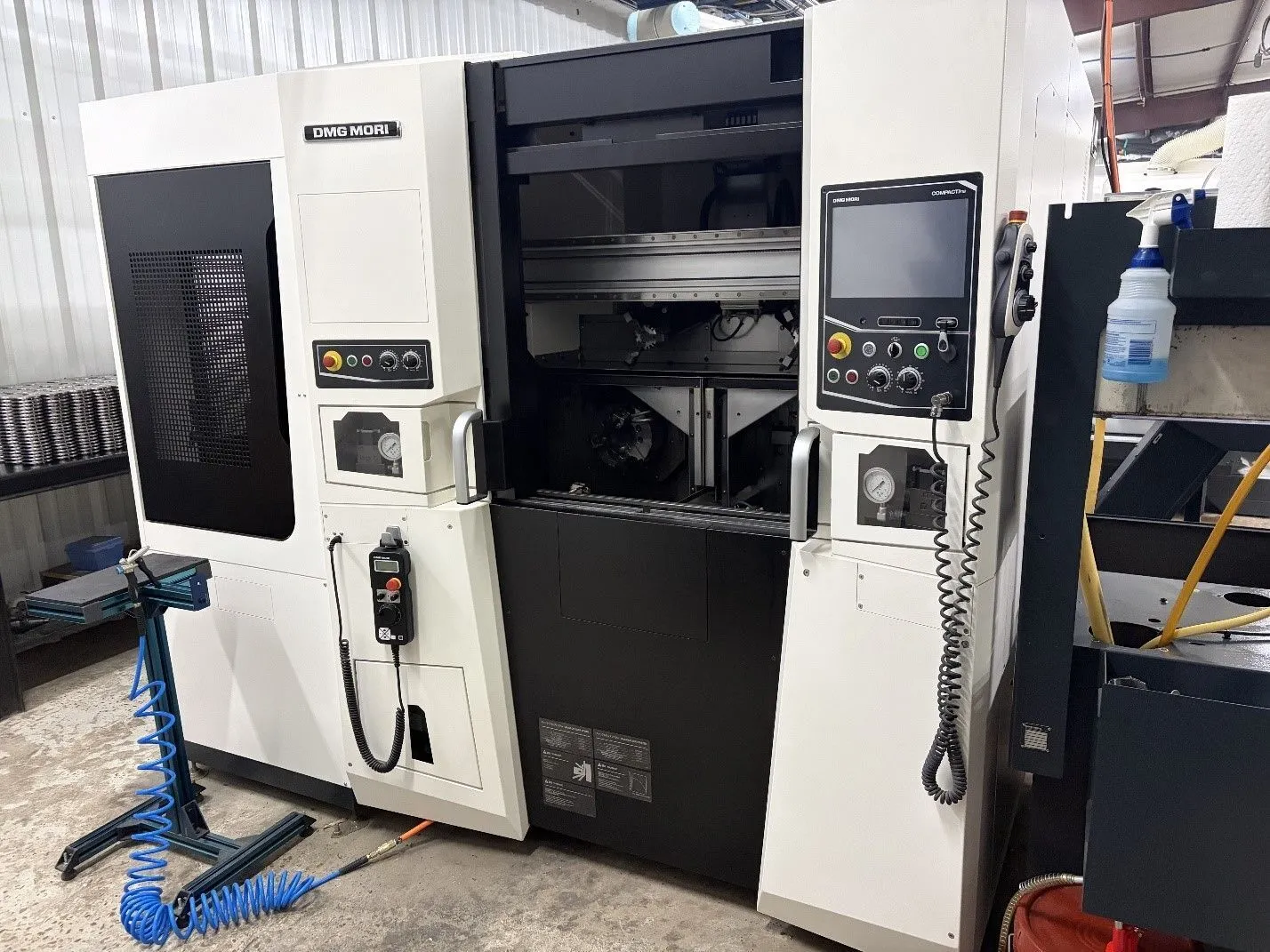

2020 DMG Mori NRX-2000 with Celos M730UM (Mitsubishi) Control, 6,000 RPM High Output Spindles, 8 Station Turrets, 8" Kitagawa Chucks, Gantry Loader & Stock Table, High Pressure Coolant, Very Low Hours.
| Machining Length | 3.9" | 99.06 mm |
| Chuck Size | 8" | 203.2 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 7.1" | 180.34 mm |
| Control | CNC (CELOS M730UM) | CNC (CELOS M730UM) |
| Weight | 12,500 LBS | 12,500 LBS |
MAX. WORKPIECE DIAMETER..........7.1"
MAX. WORKPIECE LENGTH............3.9"
MAX. X-AXIS TRAVEL...............3.9"
MAX. Z-AXIS TRAVEL...............8.7"
DISTANCE BETWEEN SPINDLES........26.37"
MAX. SPINDLE SPEED MAX...........6,000 RPM
RAPID TRAVERSE ( X / Y / Z ).....1181 IPM
FEED SPEEDS MAX..................1181 IPM
POWER CAPACITY...................10 HP
SPINDLE NOSE.....................A2-5
C-AXIS...........................0.001°
NUMBER OF TOOLS..................(2) 8-STATION TURRETS
WEIGHT...........................12,500 LBS
CELOS M730UM CNC Control (Mitsubishi)
Interface for EtherNet/IP
Dual 6,000 RPM High Output Spindles
8" Solid Kitagawa Chucks
Dual 8-Station Turrets
Gantry Loader
Left Side 14-Station Workpiece Stocker
GX03-R Gantry (Left Side Discharge)
High Pressure Coolant
Air Blow for Chuck
Manual in Machine Tool Presetter both Spindles
Signal Lamp 4 Colors (Red, Yellow, Green, Blue)
Earth leakage breaker
10 external M-codes
Right Discharge Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
