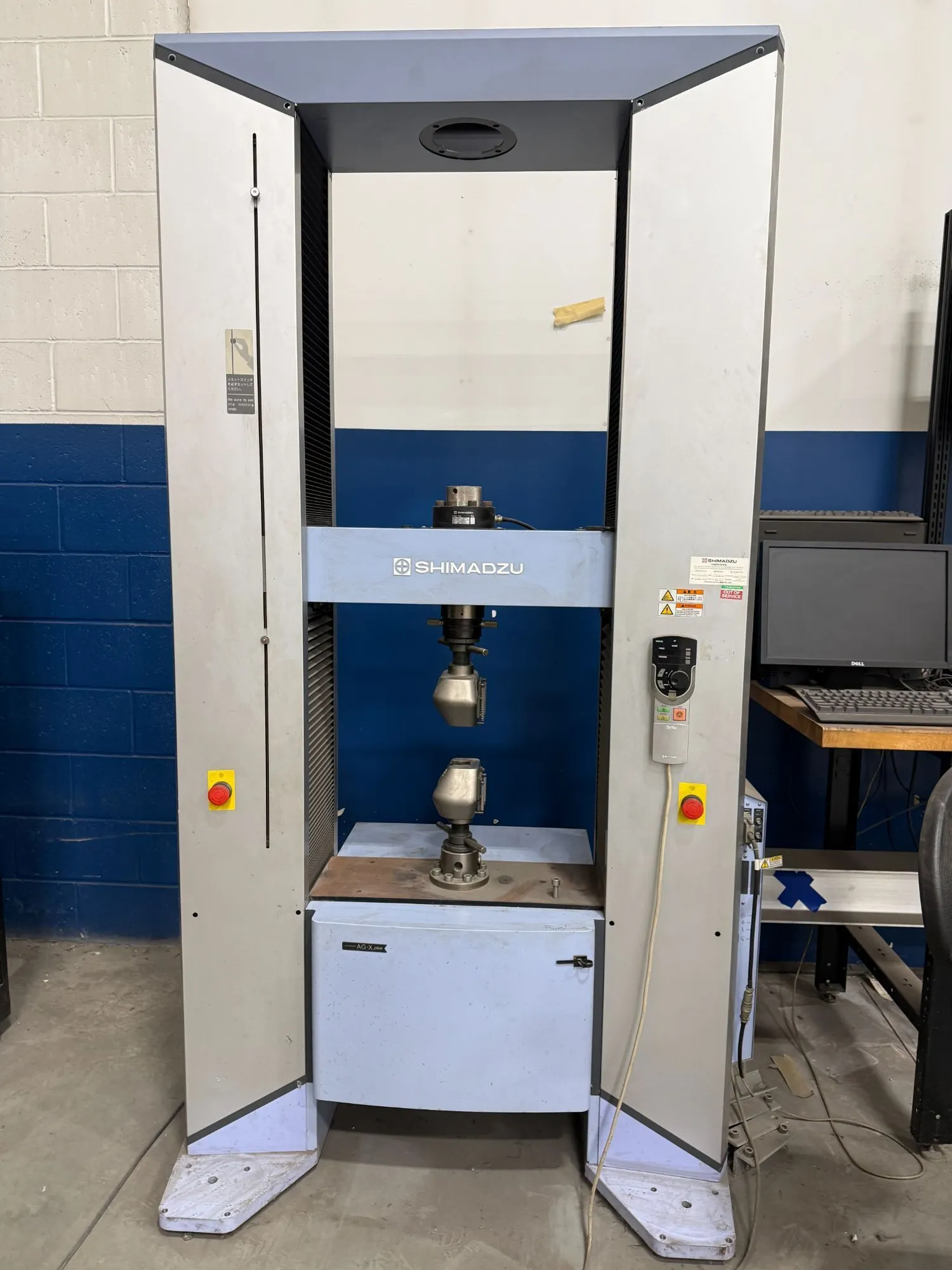

USED 2012 SHIMADZU Autograph AG-X Plus TCE-N300

Shimadzu Autograph AG-X Plus TCE-N300 High-Precision Universal Tensile Tester (2012)

AG-X Plus Universal Testing Machine
The AG-X Plus is the core of this system, designed for high-resolution control and ultra-fast data acquisition.
High Sampling Rate: Features 0.2 ms (5 kHz) sampling to capture sudden force changes.
Wide Accuracy Range: Load cell precision is guaranteed from 1/1 to 1/1000 of the rated capacity.
Speed Control: Crosshead speed ranges from 0.001 to 800 mm/min with ±0.1% accuracy.
Rigid Frame: Built to handle high loads (up to 100 kN depending on the model) while maintaining safety and durability.
TCE-N300 Thermostatic Chamber
The TCE-N300 (often referred to as the TCE-N300A) provides the environmental control necessary for testing polymers, composites, and metals under extreme conditions.
Temperature Range: -70 °C to +300 °C using liquid nitrogen (LN2) cooling and electric heating.
Rapid Cooling/Heating: Reaches -70 °C or +300 °C in approximately 25 minutes.
Internal Space: Standard internal dimensions are 300 mm (W) x 300 mm (D), with height options of 600 mm, 725 mm, or 850 mm.
Software Integration: Managed via TRAPEZIUM X-V software, allowing for synchronized temperature and force data recording.
Applications & Options
Extensometry: Supports non-contact video extensometers for measuring strain through a heated viewing glass.
Versatile Jigs: Compatible with specialized grips for rubber, plastic, and composite materials (CFRP).
Mobility: Available with a C-shaped caster stand for easy insertion/removal or a rail-mounted stand for precision alignment.
