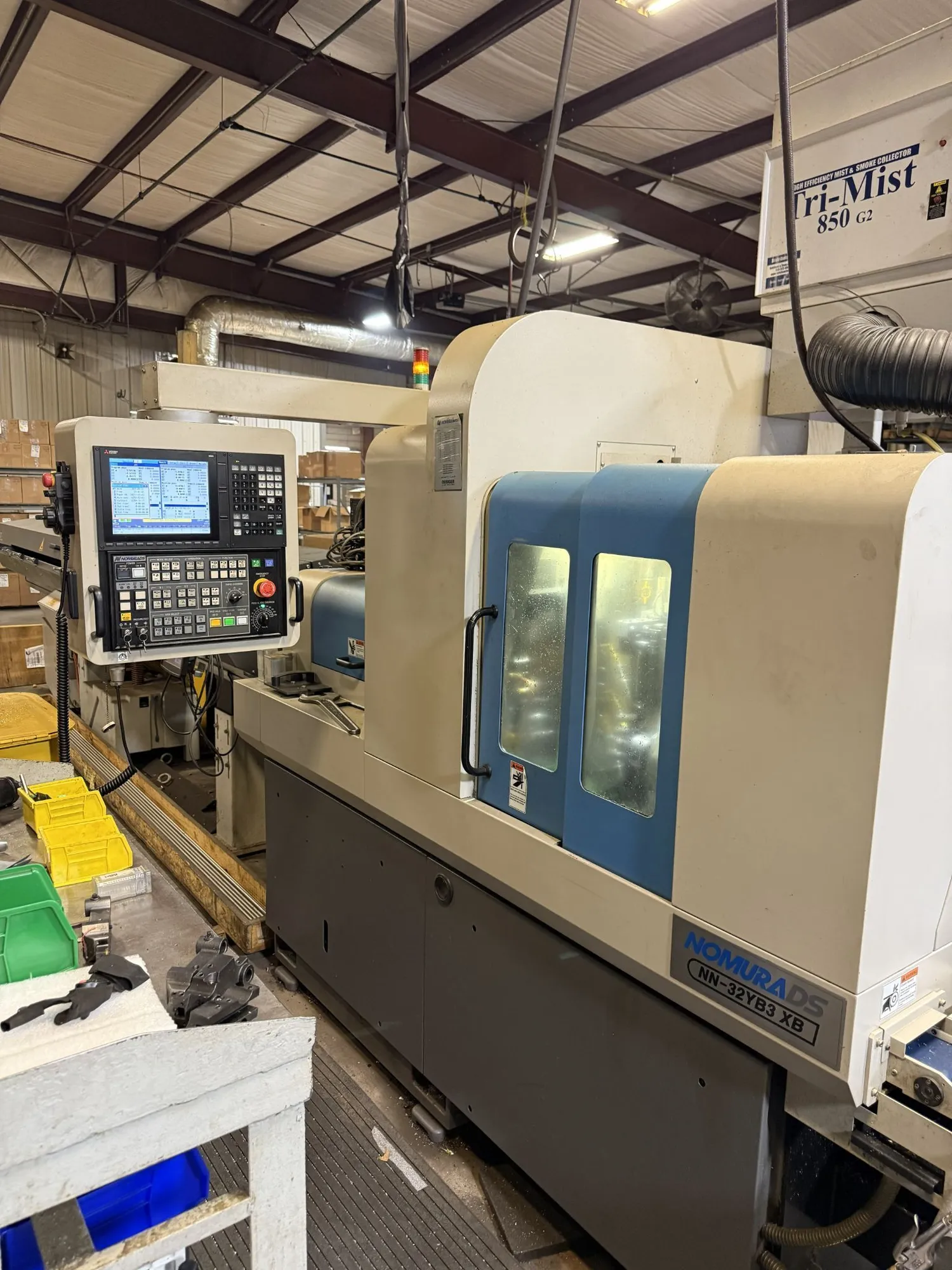

USED 2020 NOMURA NN32YB3XB

General Specifications As Per Brochure (Buyer Must Verify all Details):

Specifications:

Max. machining diameter: 32mm (1.25")
Max. machining length: 190mm /1chuck
Max. parts unloading length: 93mm
Main spindle through-hole diameter: 37mm
Spindle rpm (Main/Sub): Max. 8,000rpm
Sub spindle chucking diameter: 32mm
Max. number of tools: 39
Max. machining drill: 13mm
Max. machining tap: M10
O.D. tool: 6 (16 X 150mm max)
I.D. tool: 6(ER16x5+OP5tools) + (ER20x1+OP1tools)
Cross drill (B axis): 10 (ER20x5) + (ER11x5)
Cross drill rpm: Max. 6,000rpm
O.D. tool: 2 (016X150mm max)
I.D. tool: 3 (ER16)
I.D. eccentric: 3 (ER16)
Cross drill: 3 (ER16)
Cross drill rpm: Max. 6,000rpm
Rapid feed rate: X1 : 20/min X2: 25m/min Z1,Z2,Y1,Y2: 28m/min
Min. command unit: 0.0001mm
C axis Min. command unit (Main, Sub): 0.0001'
Main spindle motor: 5.5/3.7kW
Cross drill motor: 1.5kW
Sub spindle motor: 3.7/1.5kW
$2 cross drill motor: 1.5kW
X1.Y1,Z1,X2.Y2.Z2 axis feed motor: 1.0kW
Coolant pump (Main, Sub): 0.25kW x 2
Lubricant pump: 0.003kW
Main spindle center height: 1,000mm (39.3")
Input power capacity: 15KVA
Air pressure, flow rate: 0.6MPa. 20L/min
Coolant tank: 100L

Control: MITSUBISHI NC M70VType A
NC display: 10.4 Color TFT LCD
Memory capacity: 500KB
Number of tool offset: 80sets

Weight (Options included): 6.750lbs (3,050kg)
Machine: 89" X 65" X 78" 6,600 lbs (WxDxH 2,278 x 1,656 x 1,990 mm)
Barfeed: 192" x 27.5" x 49" 1,500 lbs
Barfeed tank: 36" x 24" x 40" 350 lbs
