Key Specs and Capabilities
Tonnage: 80 Tons

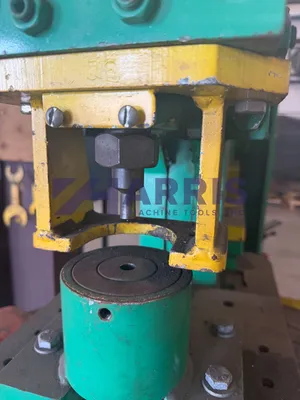

Punch: 1-3/8" hole in 3/4" mild steel (standard), or 2-1/4" hole in 7/16" mild steel
Bar Shear: 1/4" x 24", 1/2” x 20”, 3/4” x 10”, 1” x 6”

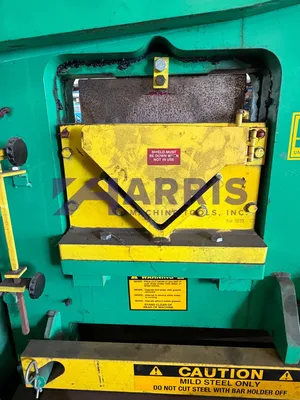

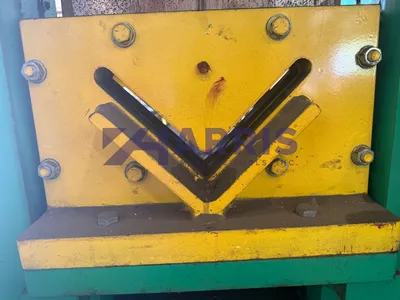

Angle Shear (90°): 6" x 6" x 1/2" slug type
Angle Shear (45°): 4" x 4" x 1/2"
Throat Depth: 9"
Motor: 7.5 HP (Standard 220V/3PH; optional 1PH)
Hydraulics: 2,000 psi, 16-gallon oil capacity
Weight: ~2,900 - 3,100 lbs

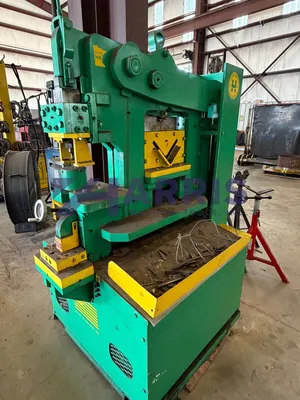

Uni-Hydro
Uni-Hydro
+6
Features & Design

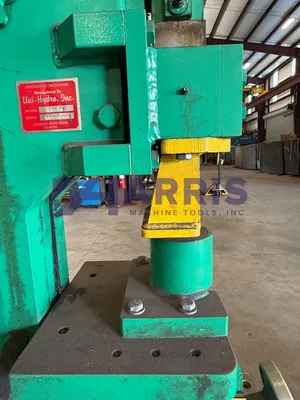

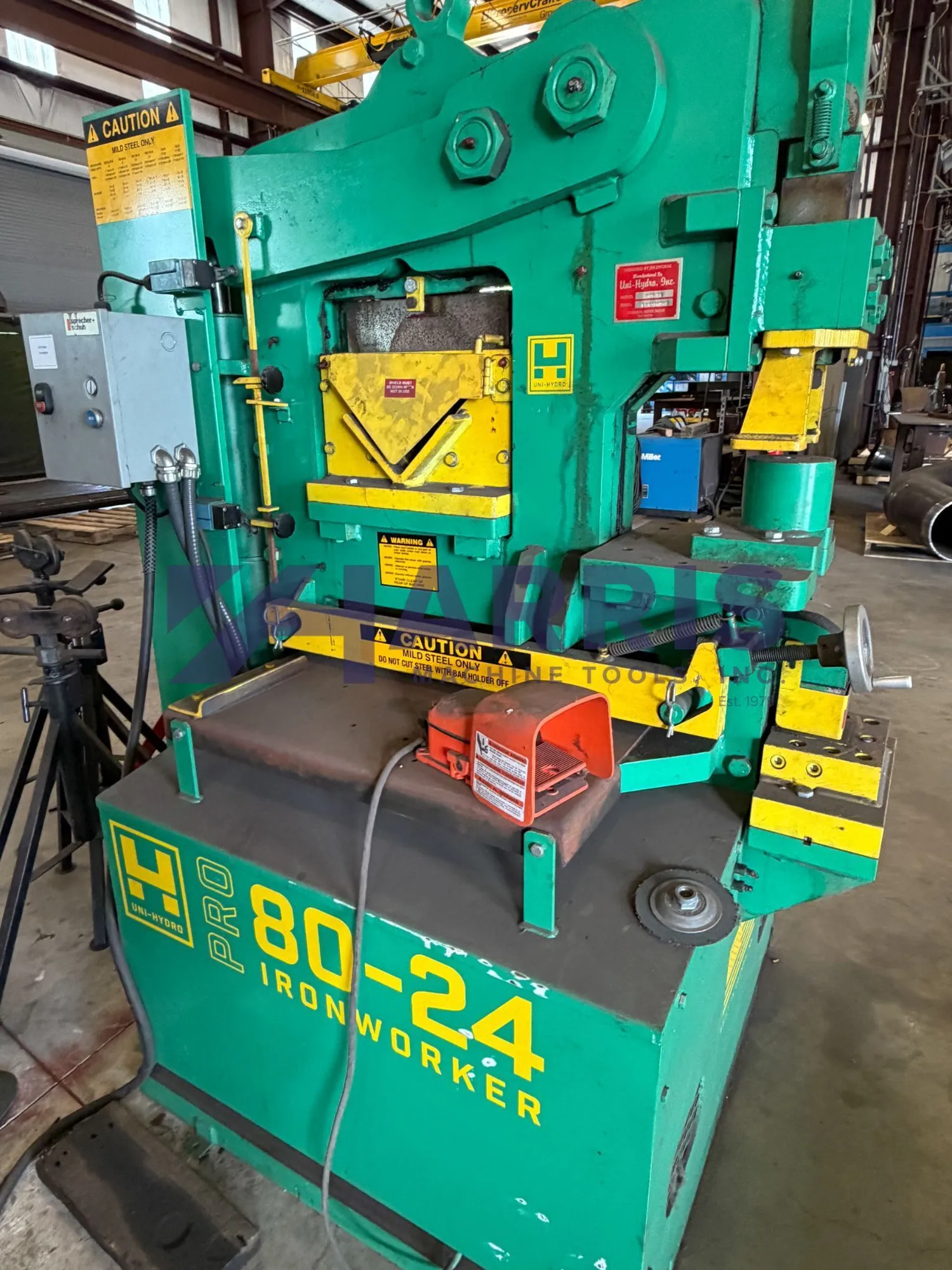

4th Station: The PRO 80-24 features a dedicated 4th station, allowing for a choice of a Square, V, Pipe, or Copper Notcher.
Bar Shear: 4-sided blade, 24" wide.
Control: Electric foot control with adjustable variable stroke.
Maintenance: Built-in grease bank for easy lubrication.
| Angle (L1) | 6" | 152.4 mm |
| Angle (L2) | 6" | 152.4 mm |
| Angle (T) | 0.5" | 12.7 mm |
| Tonnage | 80 T | 72.575 t |
| Power | 7.5 hp | 7.5 hp |
| Throat | 9" | 228.6 mm |
| Dimensions | Weight: ~2,900 - 3,100 lbs | Weight: ~2,900 - 3,100 lbs |
| Weight | Weight: ~2,900 - 3,100 lbs | Weight: ~2,900 - 3,100 lbs |
