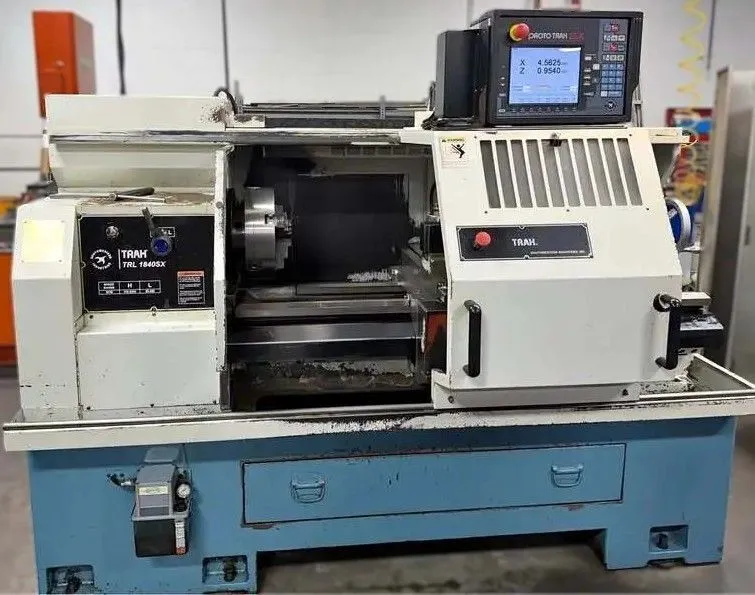

USED 2006 SOUTHWESTERN INDUSTRIES TRAK TRL 1840 SX

Southwestern Industries Trak TRL 1840 SX CNC Lathe, New in 2006.

General Specifications:
size 10" Chuck
Swing 18.5"
Machining Length 40.25"
# Axis 2
Chuck Size 10"
Turning Dia 9"
Tailstock Yes
Live Tooling No
Sub Spindle No

Swing Over Ways: 18.5"

Swing Over Cross Slide: 9.0"

Max Center Distance: 40.2"

Center Height: 9.0"

Cross Slide Travel: 9.0"

Hole Through Spindle: 2.36"

Spindle Nose: D1-6 Camlock

Spindle Speeds: Programmable Variable in 3 Ranges 50-270 / 150-850 / 450 - 2500 RPM

Tailstock Quill Travel: 6.3" Manual

Tailstock Quill Diameter: 2.95"

Tailstock Quill Taper: #5MT

Spindle Drive: 10 HP

Proto TRAK SLX Control
3 Jaw Chuck
