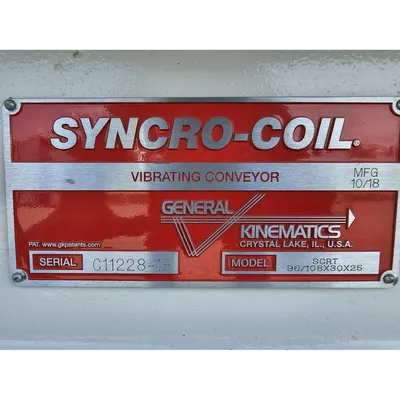

Serial No: C11228-1B
For medium to heavy duty conveying applications.

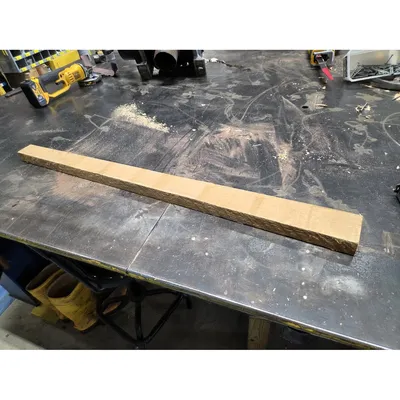

Designed for length-wise orienting and conveying 3"-2"W X 3'L X 1.25" thk. barrel staves.
Design Capacity: 60 staves/minute @ 50LBS per cubic feet

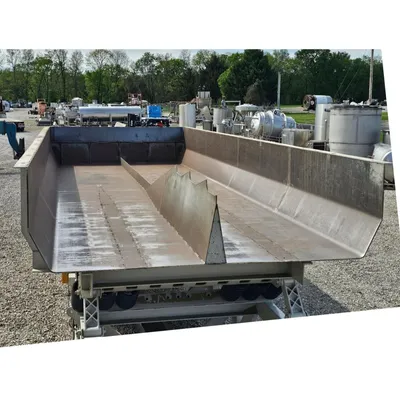

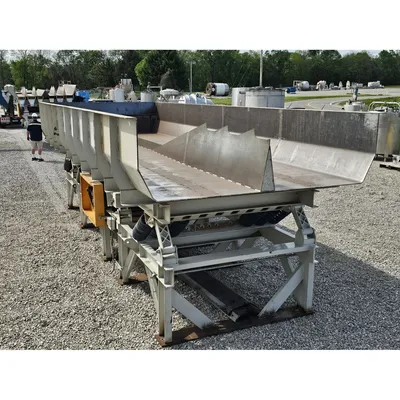

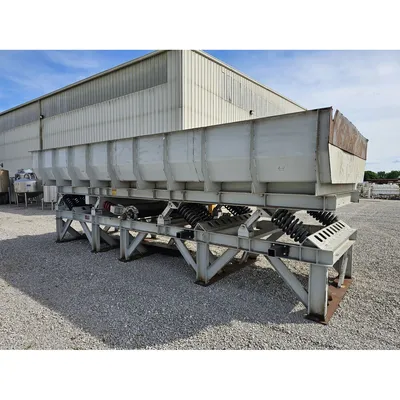

Conveyor Deck: 9' wide X 25' long, 29.5" sidewall with corner bevel
Deck Pan and Orienting Flighting constructed of abrasion resistant steel.

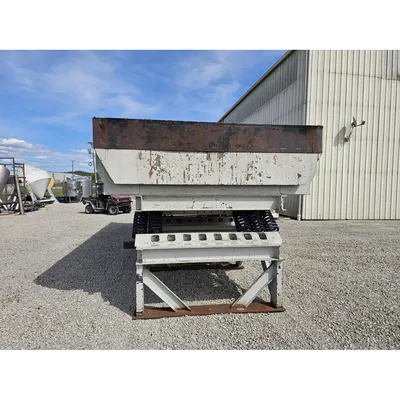

Height at discharge: 5'-8 5/8"
Installed with vibration monitor and accelerometer.

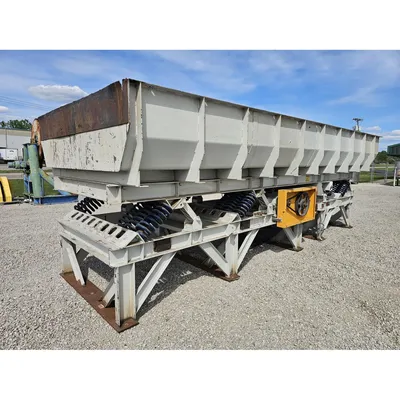

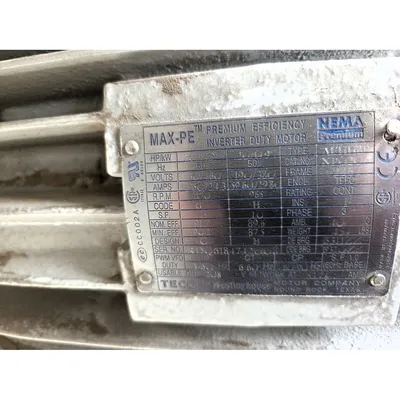

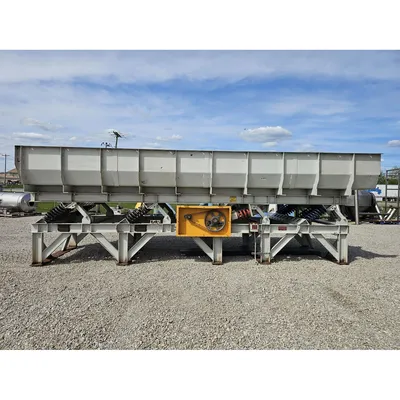

20HP V-belt drive, for hazardous duty (230/460V, 60Hz, 3ph, 33FLA)
General Arrangement Drawings on file.
Approx weight ~ 20,000 LBS.
FOB: Millwood, WV 25262
Item: 21630 Model : SCRT

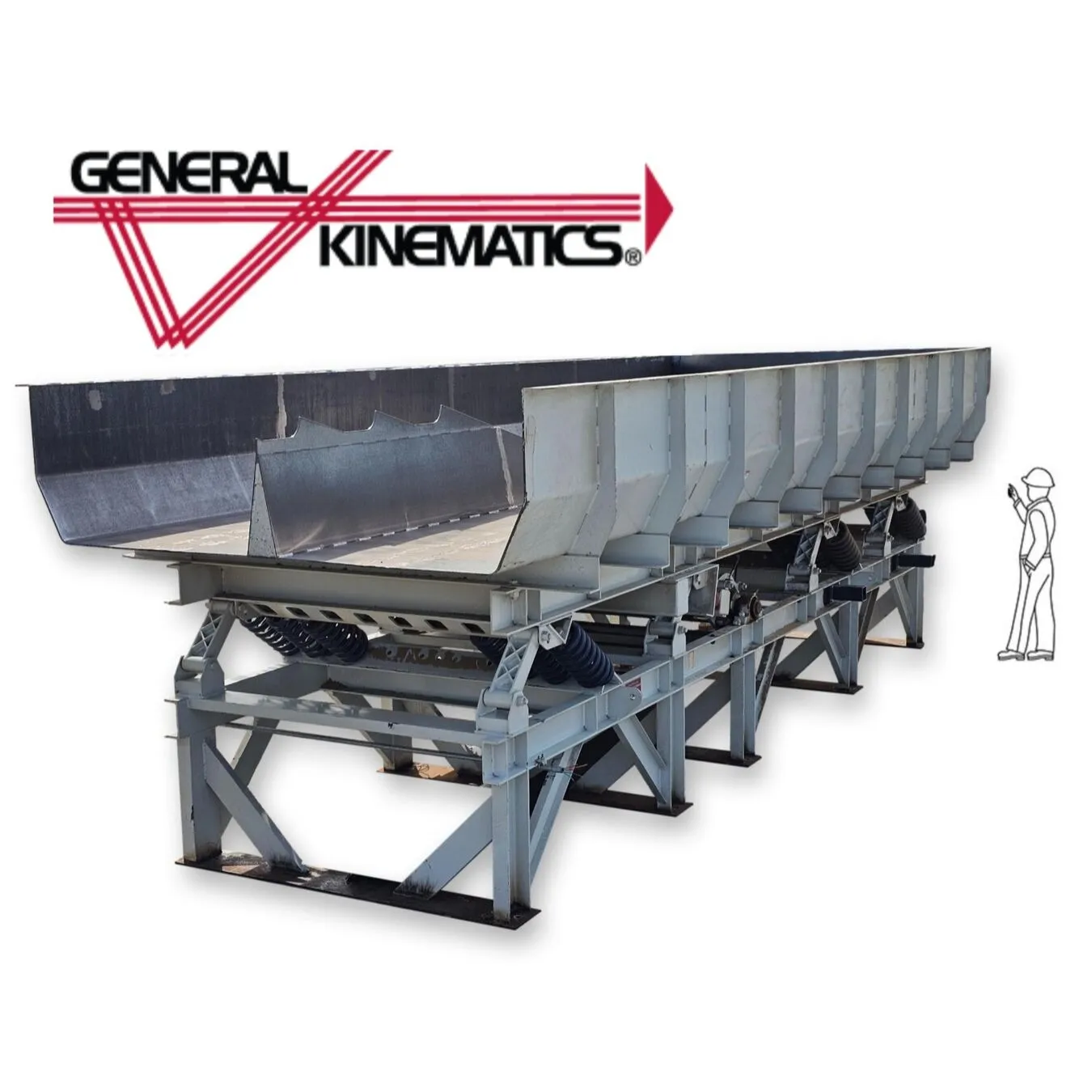

MFG: General Kinematics
Width (inches): 108
