USED 1998 OKUMA CROWN 762S SB

*All specifications are approximations and are subject to verification

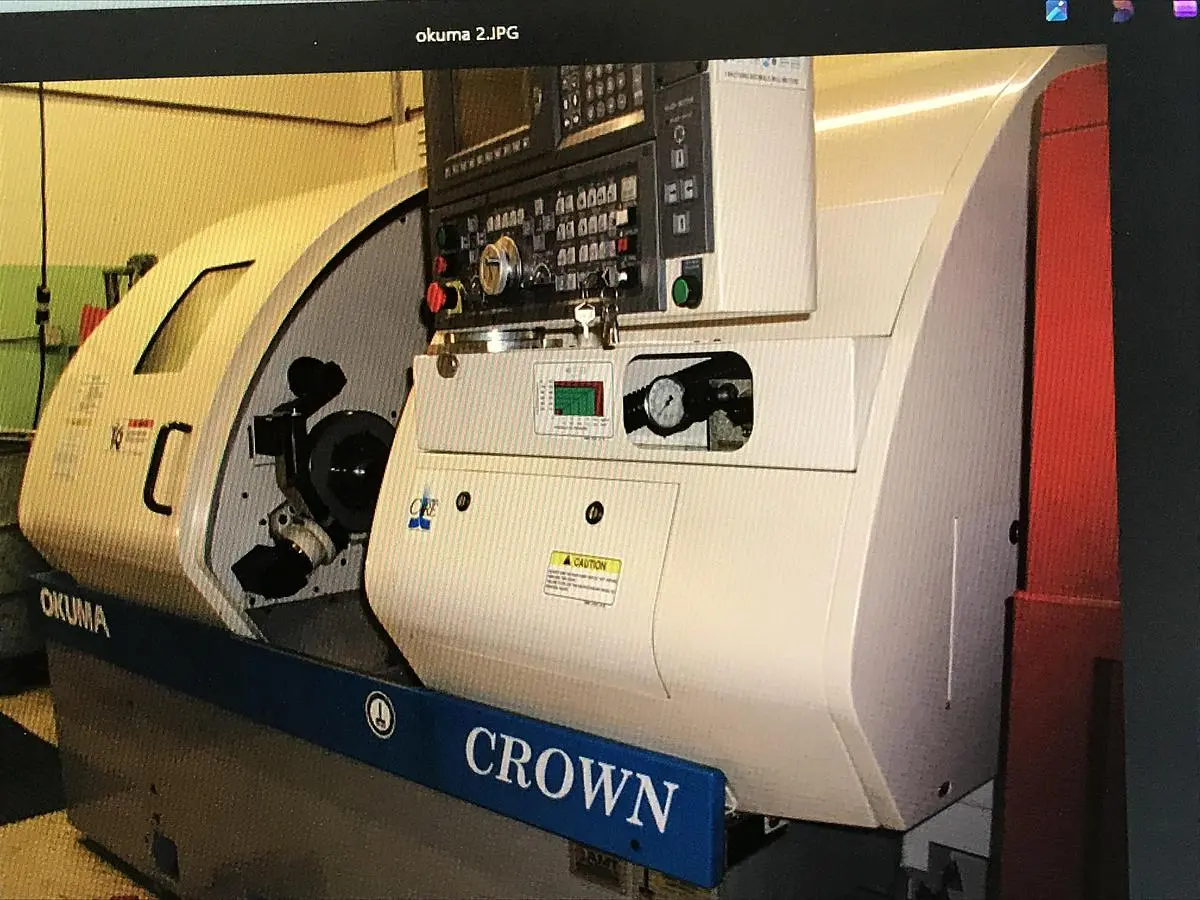

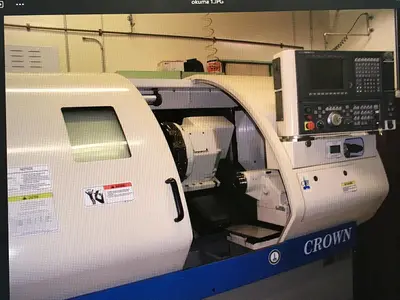

Okuma Crown 762S SB CNC Lathe
Year 1998

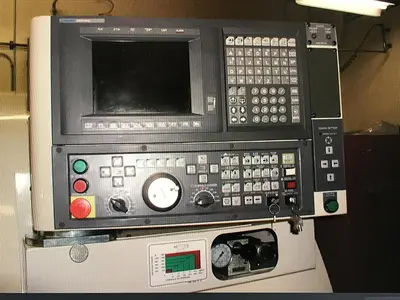

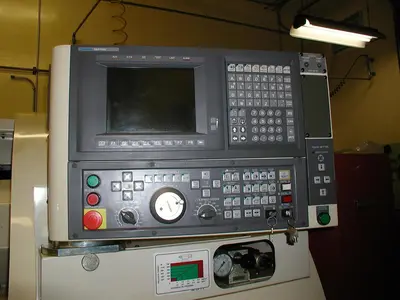

Control OSP700L
Swing over bed 21.65"
Swing over cross slide 15.75"
Travels Z 20.47"
Travels X 7.28"
Maximum turning diameter 10.63"
Max turning length 19.68"
Spindle speeds 75-4200 RPM
Spindle motor 18/10 HP
Spindle nose A2-6
Spindle bore 2.44"
Max bar size 2.0"

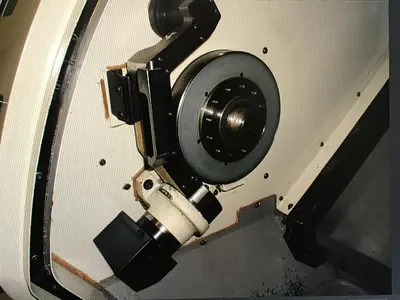

Turret stations 12
Tailstock spindle taper/travel MT #5 / 4.72"
Tailstock spindle diameter 3.54"
Tailstock body travel 18"
Programmable Tailstock
Electrics 220V 3 Phase

Dimensions 98" x 70.9" x 66.9"H
Approximate weight 10,000 Lbs
