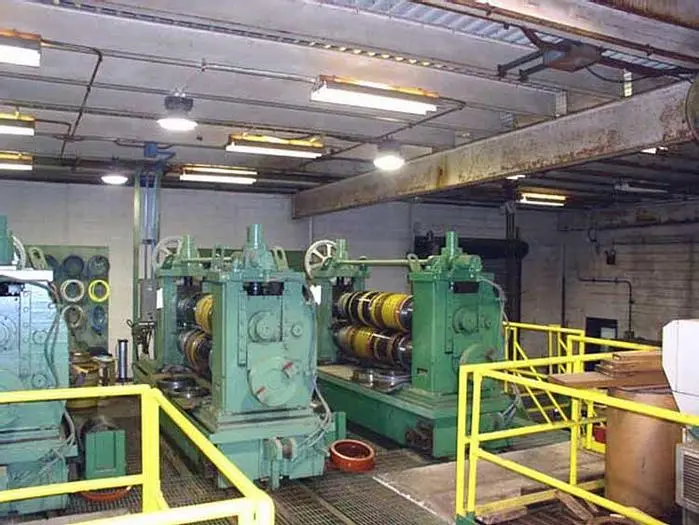

72´´ X 80,000 LBS. PRO-ECO SLITTING LINE COMPONENTS (USED)

Line Specifications:
Coil Width
Thickness Range:
.054" - .500" @ 48"
.054" - .375" @ 72"
Coil O.D.:
Entry: 84" Maximum
Exit: 80" Maximum
Coil I.D.:
Entry: 16" - 30"
Exit: 24" or 30"
Line Speed:
Line Includes:
Entry Coil Car, Above Floor
80,000 Lbs.
72" Wide
72" O.D. Coils
Self Contained Hydraulics
Coil Entry Ramp
Uncoiler
Cone Type
80,000 Lbs. Capacity
Flattener/Peeler/Pinch Unit
Entry Shear, Butech (Year 1999)
Slitter Heads
(3) Heads
10-1/2" Arbors
150 H.P. DC Motor
Exit Shear, Butech (Year 1999)
Deflector Tension Roll Device w/ Brake
Recoiler
78" Wide
24" ID Range
300 H.P. DC Motor

Entry: 74" Maximum
Exit: 72" Maximum
Coil weight entry & exit maximum: 80,000 Lbs.
Low gear: 150 FPM,
High gear: 500 FPM
Line direction: Right to Left
