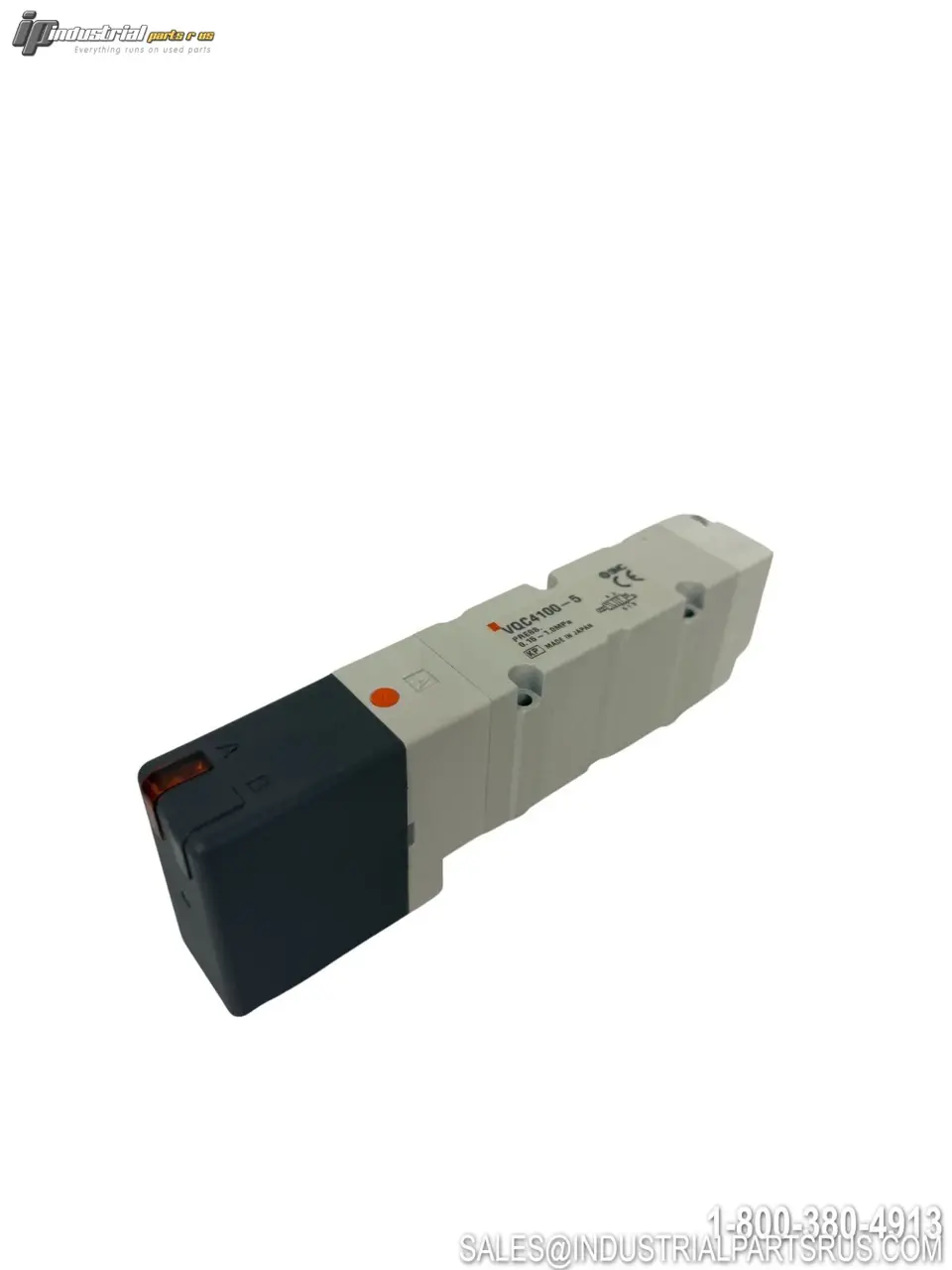

NEW SMC VQC4100-5

The SMC VQC4100-5 is a 5-port 2-position pneumatic solenoid valve from the VQC4000 series designed for high-speed automation applications. This valve features a plug-in design with metal seal construction, 24VDC coil voltage, and IP67 dust-proof enclosure protection for reliable operation in industrial environments.
Specification
Value
Brand
SMC
Model/Part Number
VQC4100-5
Series
VQC4000
Valve Type
5-Port Solenoid Valve
Coil Voltage
24VDC
Configuration
2-Position Single
Body Type
Plug-in Sub-plate
Seal Type
Metal Seal
Mounting Type
Base Mount
Operating Pressure
1.0 MPa (0.7 MPa Low Wattage)
Effective Area (Cv)
1.7 (Metal Seal)
Fluid
Air/Inert Gas
Enclosure Rating
IP67 Dust Proof
Response Time
17ms ±3ms
Service Life
100 Million Cycles
Power Consumption
0.95W Standard
Manual Override
Available
Port Size
Without Sub-plate (For Manifold)
Porting Specification
Side Ported
Thread Type
Rc
We warranty all items for 30 days from date of purchase.

SKU: AI1388
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Enclosure Type: IP67 Dust Proof
Part Number: VQC4100-5
Shelf: A-10
Model: VQC4100-5
MPN: VQC4100-5
Type: Solenoid Valve
