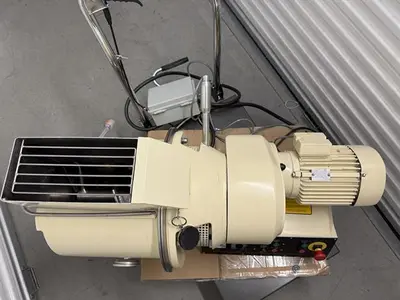

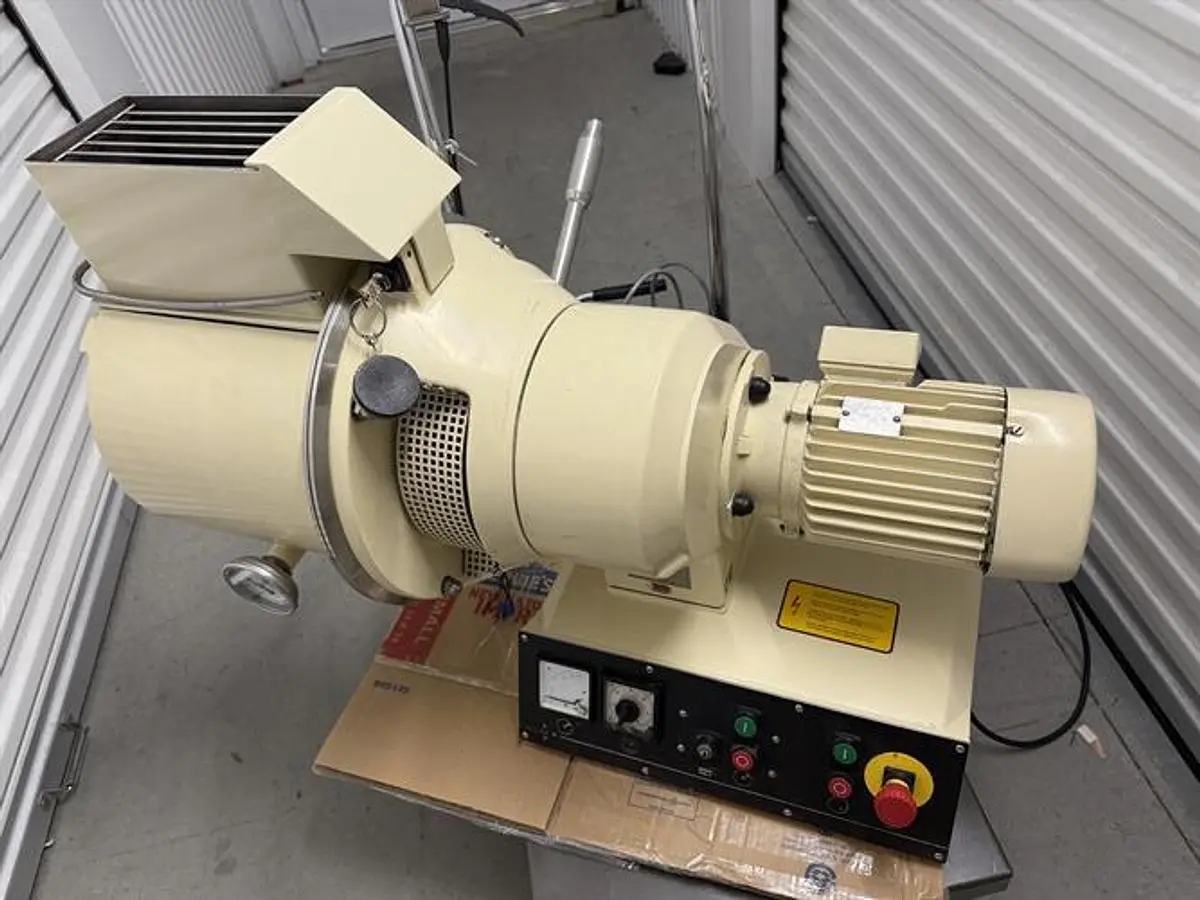

Lodige M20 20 Liter SS Jacketed Plow Mixer

Lodige M20 20 Liter SS Jacketed Plow Mixer

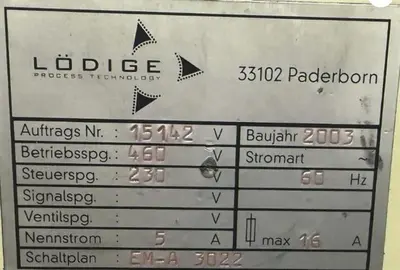

- Serial#15142 built 2003
- Stainless steel contact parts
- 20 liter (5.8 gallon), 0.71 cuft total capacity
- 3.17 gallon working capacity (0.42 cuft)
- Mixing chamber measures approximately 12" diameter x 11" long
- Jacket rated 5 bar (72.5) psi at 158 degrees C (316 degrees F)

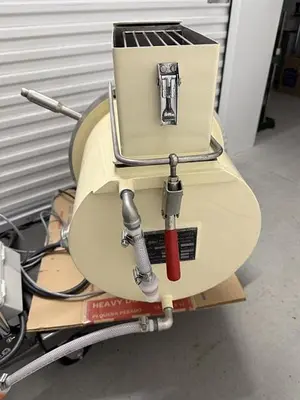

- Top openings: 10" x 5" with clamp cover

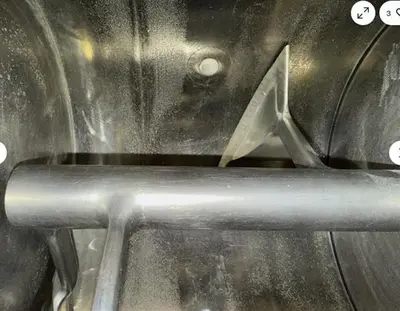

- (2) plow mixing elements

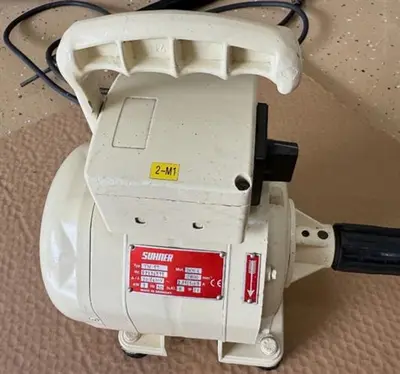

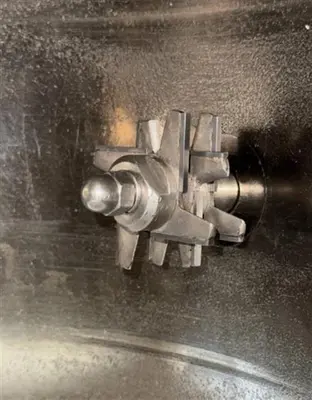

- Chopper motor, 1-KW, 3 phase, 50 cycle, 230/400 volt , 2800 rpm
- Plow arm motor, 1.5 kw, 3 phase, 50 cycle, 230/400 volt, 945 rpm
