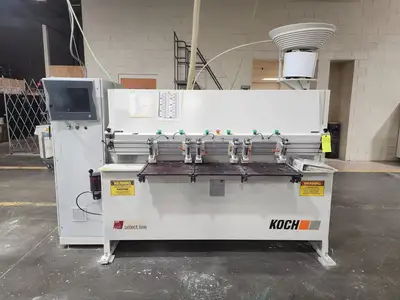

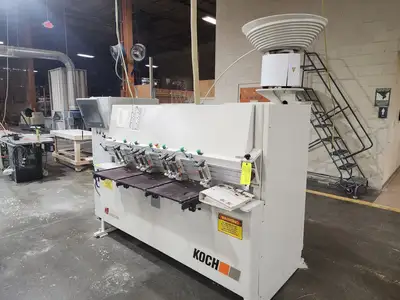

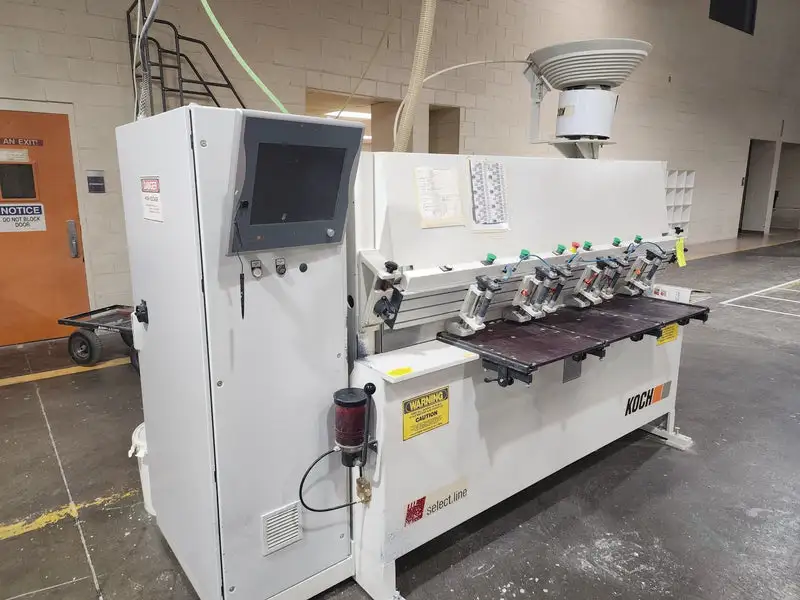

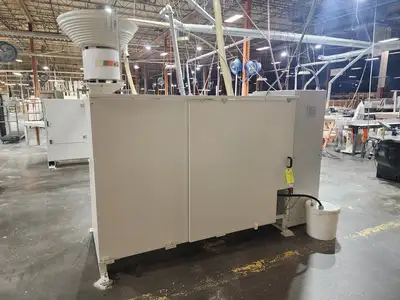

USED 2022 KOCH SPRINT SELECT.LINE

2022 KOCH SPRINT select.line drilling and dowel insertion machine located in Montana and offered as a bank-repo opportunity. Call iBiD Machinery at (678) 925-3556 for current condition, inspection, loading and availability details.
Machine overview
KOCH designed the SPRINT select.line as a flexible drilling, gluing and dowel-insertion platform for furniture and component production. The platform supports configurable drilling patterns and can be equipped for additional drilling, routing and connector-insertion operations.
Manufacturer model-reference equipment

Four working fields

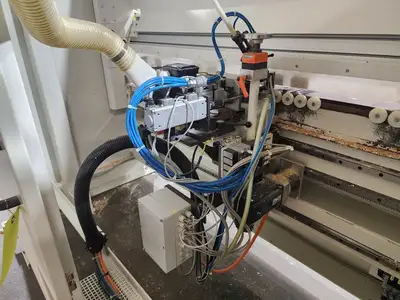

Horizontal drilling station with drilling spindle
Glue and dowel insertion station
Two NC axes (X and Z) in the published base configuration
KOCH WOP parametric programming
Three pneumatically lowerable stops: center and side stops
Published maximum stock length: approximately 1,600 mm (63 in.)

Available platform options may include

Additional individually controlled horizontal and vertical drilling spindles
NC positioning in X, Y and Z
Electronic glue control
Horizontal or vertical routing
Dowel insertion for varying lengths and diameters
Connector-insertion equipment and 0°/45° processing options
Stock-width configurations published from approximately 700 mm through 3,000 mm

Important: Options listed above describe available SPRINT select.line configurations and are not confirmation that every option is installed on this individual machine.
*Model-reference specifications are provided to the best of iBiD Machinery's knowledge from available manufacturer information. Actual machine configuration, options, dimensions and capabilities may vary by year, serial number and installed equipment. Buyer should independently confirm all specifications and inspect the machine before purchase.
