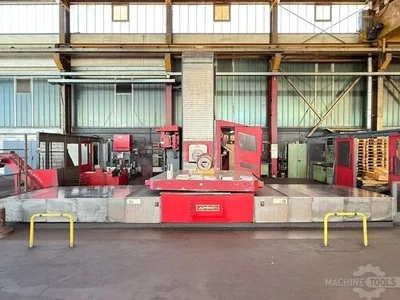

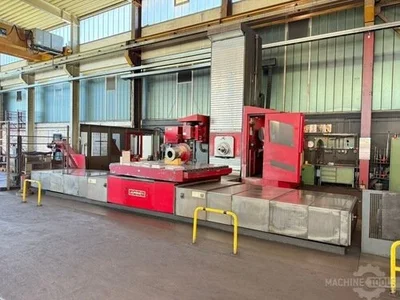

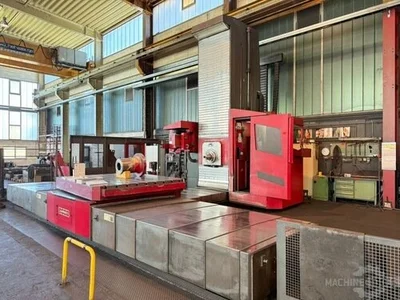

USED 2009 JUARISTI TS5

Coolant true spindel 20 Bar
Paper filtration system

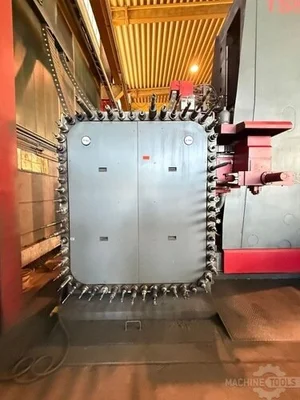

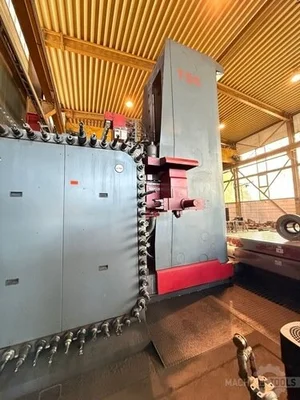

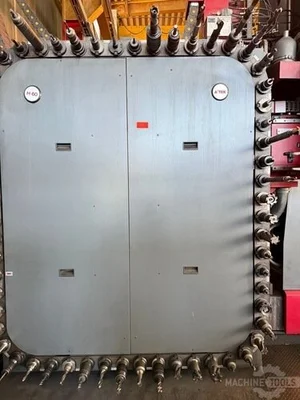

ATC Tool changer 60 Positions

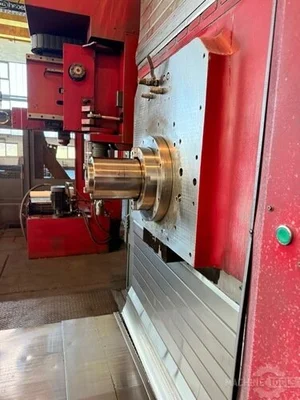

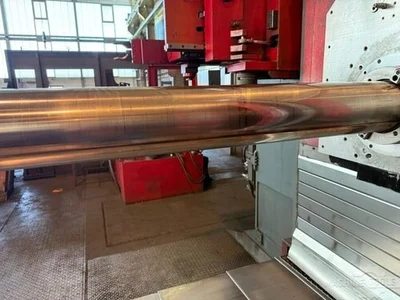

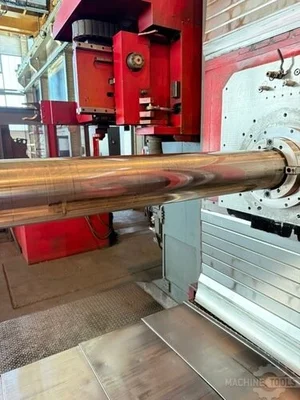

Spindel extension L = 550 mm
Full B-Axis 360.000 with ROD880C
Table load 28.000 Kg

X - Travel: 5000 mm
Y - Travel: 3500 mm
Z - Travel: 2350 mm
W - Travel: 1000 mm

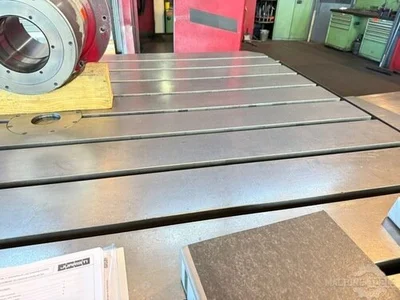

Table Length: 2500 mm
Table Width: 2000 mm
Table load: 28000
Speeds / ranges: 2000 Rpm
Power: 51 kW
Spindle Taper: 180 ISO50 ISO/Bt/Mk
Feed rate X-Axis: 13000 mm/min.
Feed rate Y-Axis: 13000 mm/min.
Feed rate Z-Axis: 13000 mm/min.
Feed rate W-Axis: 13000 mm/min.
ATC Toolchanger: 60
Coolant through spindle / Bar: 20
Number of controlled axis: 5
Length: 12000 mm
Width: 6800 mm
Height: 4800 mm
Weight: 44000 kg
