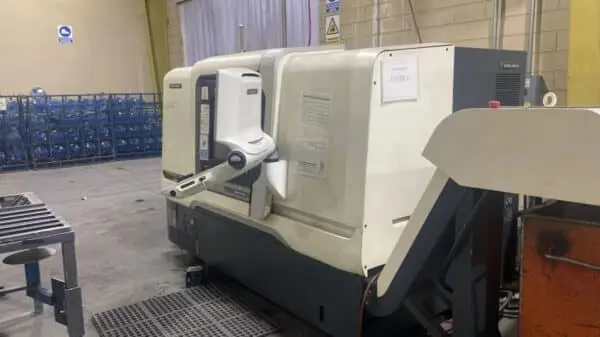

DMG MORI NLX2500T/700 2-Axis CNC Turning Center
– Max turning length: 708 mm
– Max turning diameter: Ø 366 mm
– Bar capacity: Ø 105 mm (left spindle)
– Max spindle speed (left): 5,000 rpm (standard) / 3,000 rpm high torque
– Max spindle speed (right, if equipped): 7,000 rpm / 5,000 rpm
Axis Travels
– X axis: 10.2 in (≈259 mm)
– Z axis: 53 in (≈1,346 mm) — platform max; 700 mm version uses ~708 mm effective turning length
Turret
– BMT (Built in Motor Turret)
– High precision quick change turret (optional)
Construction & Thermal Control
– High rigidity slideways on X/Y/Z for damping and stability
– Thermal displacement control for accuracy during long cycles
MAPPS (Mitsubishi)
CELOS / ERGOline X (2nd Gen)
Chuck with Jaws
Chip Conveyor
CoolJet
