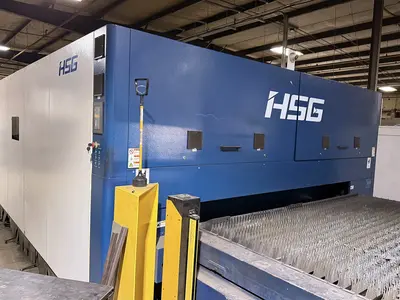

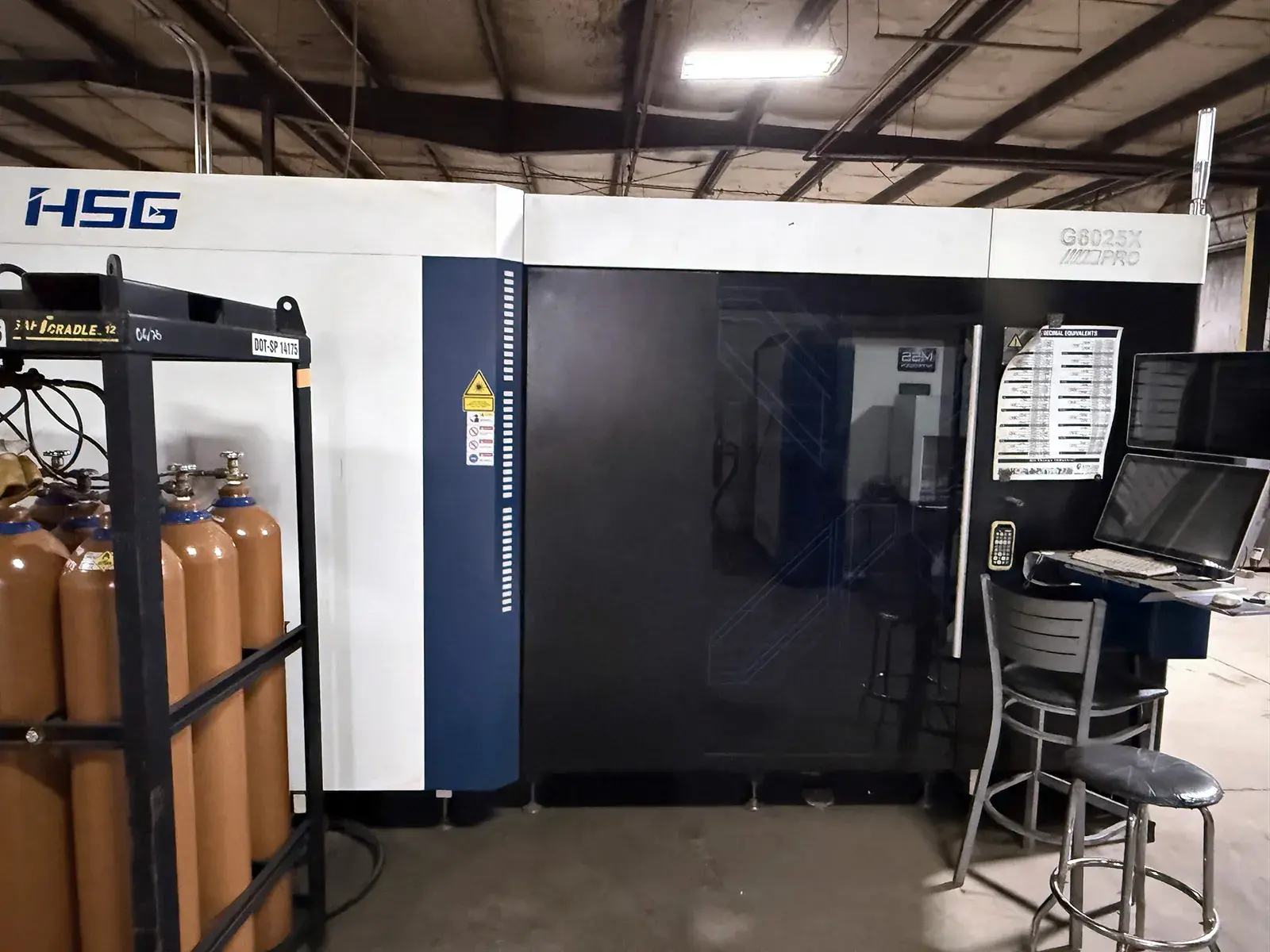

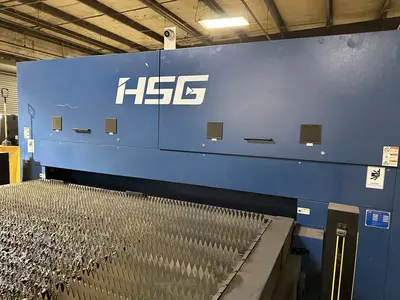

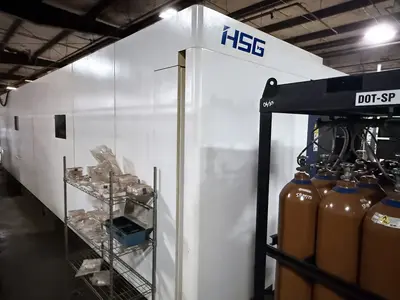

USED 2023 HSG G6025X-Pro

The HSG G6025X-Pro 20kW Fiber Laser (2023) is a powerful industrial cutting machine designed for high-speed, precision cutting of both thick and thin metal sheets. With 8x20 dual tables and advanced automation, it delivers minimal distortion for materials like steel, aluminum, and brass. Perfect for industries such as aerospace, automotive, and shipbuilding that require high-volume, intricate cuts.

Z-Axis Stroke: 13.78"
Work area / travels::
Machining / processing area (L × W): 240" × 100" (often marketed as “8' × 20'”)
Accuracy:
X/Y Positioning Accuracy: ±0.0012" per 39.37" (±0.03 mm per meter)
X/Y repeatability: ±0.0012" (±0.03 mm)
Speed / dynamics:
Max Linkage Speed: 4,724 in/min (120 m/min)
Max linkage acceleration: 1.5 G (≈ 579 in/s²)
Table Load:
Max loading weight (12–20 kW configuration): ~10,582 lb
Machine Dims and Power:
Machine footprint / utilities (common published figures):
Overall dimensions (L × W × H): ~722.44" × 232.28" × 98.43"
Electrical: 3-phase, 380 V, 50/60 Hz
Power / current (20 kW config, listed): ~83 kW / 167 A

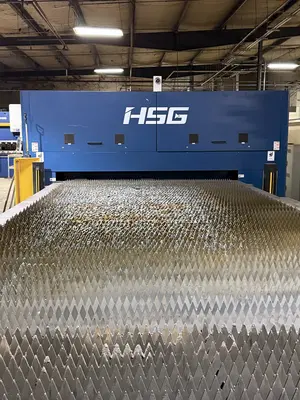

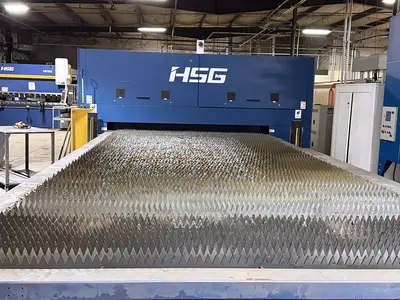

Dual Tables
Chiller

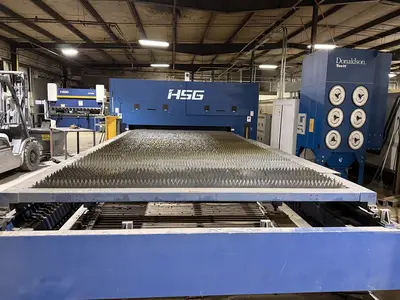

Dust Collector
