USED 2021 Prefinsa H2GE 280‑19/1000‑PE Gas Furnace
Overview
The PREFINSA H2GE 280‑19/1000‑PE gas furnace (2023) is a high-capacity thermal processing solution ideal for heat treatment, industrial drying, and specialized forging. It supports critical metal transformation processes like annealing, tempering, and hardening, as well as curing coatings and paints. Perfect for automotive, aerospace, and manufacturing industries, it’s also used in ceramics and glass processing.
Specs
Maximum Temperature: 275°C (527°F)
Power Requirements: 460V, 3‑Phase

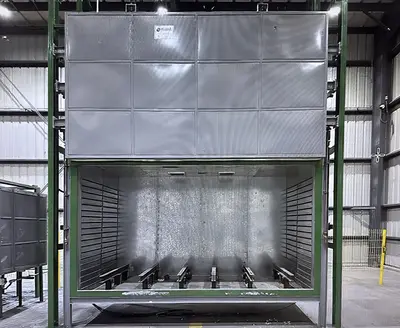

Usable Chamber Size: 130" × 59" × 63"
Load Capacity: 4 tons
External Dimensions: 169" × 83" × 126"
Weight: 40,000 lbs
Heating Power: 100 kW (341,000 BTU/hr)
Temperature Differential: ±8°C
Total Chamber Size: 140" × 67" × 81"
Usable Chamber Volume: 8 m³ (282 ft³)
Equipped With
Electric tubular‑resistance heating system
Hangyoung NP200 digital temperature controller with ramp/soak programming
Independent over‑temperature safety controller (Hangyoung NP200)
(6) fixed thermocouples (control - safety - monitoring)
JUMO Logoscreen 601 6‑channel digital temperature recorder
USB data export - Ethernet/Modbus communication -PCA3000 software suite
Internal forced‑air circulation system with (4) recirculation motors

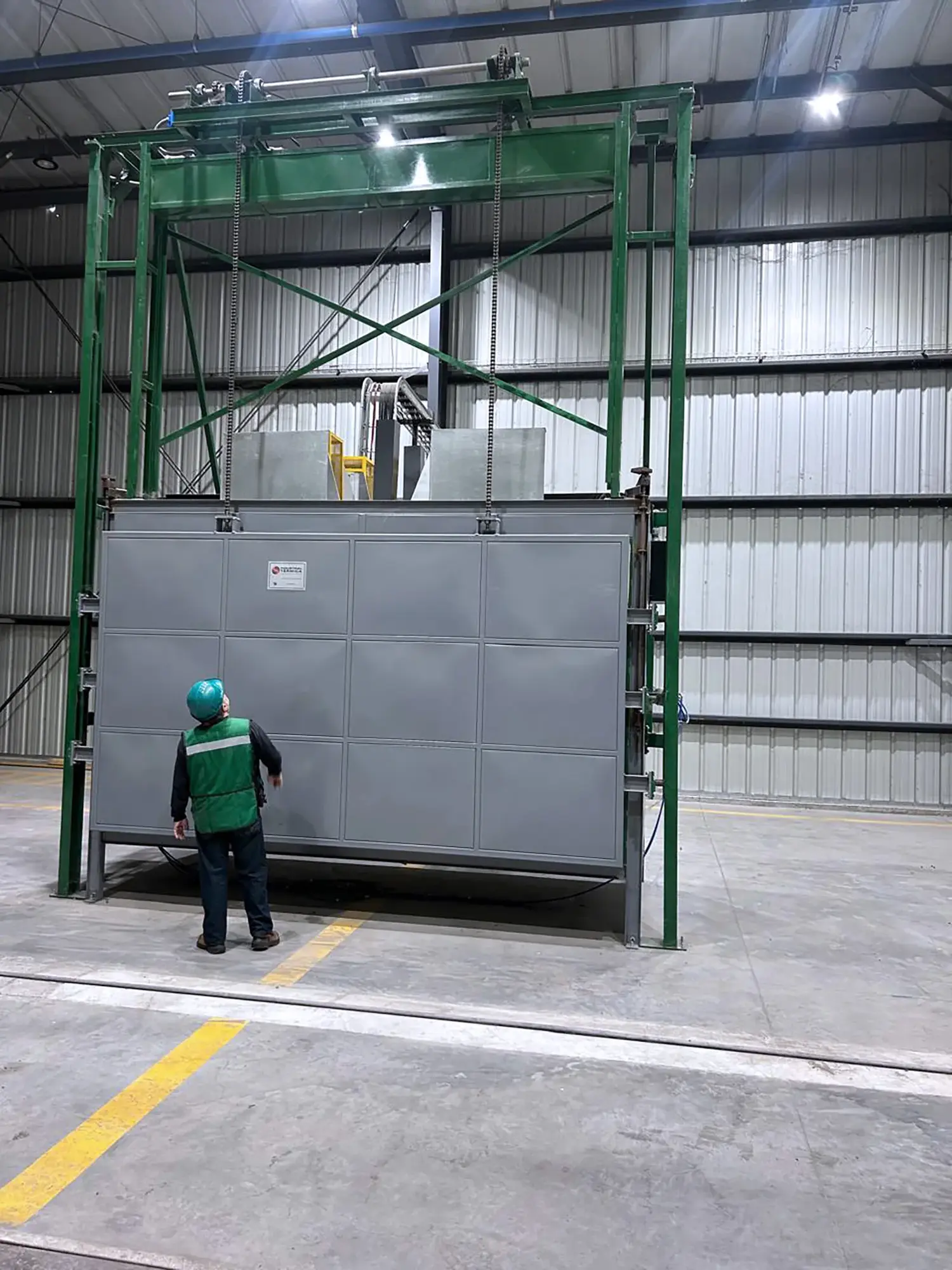

Automatic front‑lifting vertical door
(9) TUS ports
Mineral wool insulation (4")

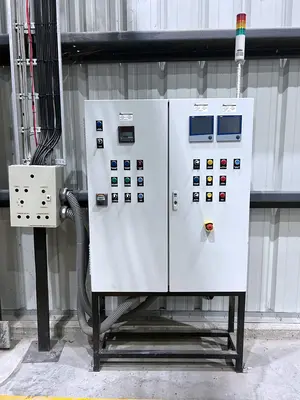

Full electrical control panel with ITM main disconnect
Emergency stop and front control station
