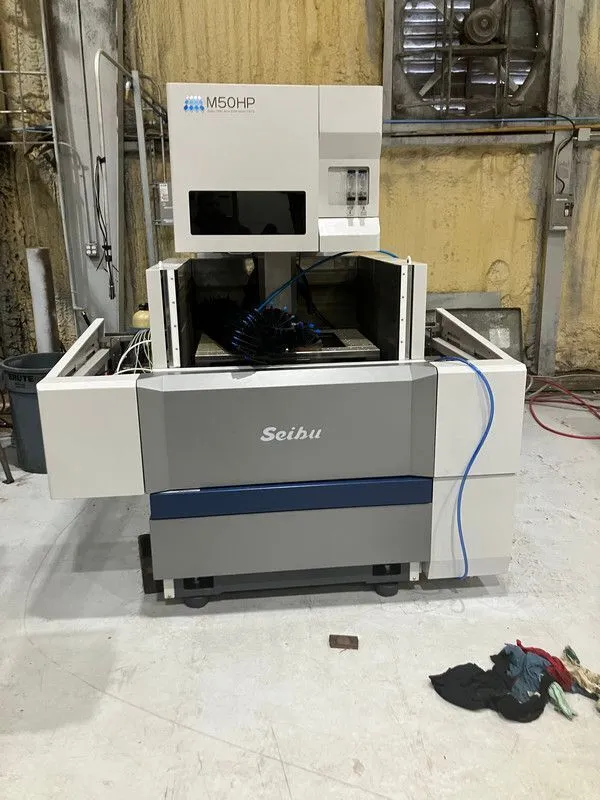

High Precision Wire EDM 19.7 × 15.8
The 2023 Seibu M50HP is a High Precision Wire EDM designed for various products with ±3μm pitch accuracy, reliable precision machining applications that require stable cutting performance, consistent dimension accuracy and surface finishes. Wire diameter available down to φ0.003inch(0.07mm).
Standard Specifications M50HP
Max. workpiece dimensions W×D×H 33.46 × 28.74 × 11.81inch
Max. workpiece weight 1,763.7lb
Axis travel range X×Y×Z 19.69 × 15.75 × 12.20 inch
U-V axis travel U×V ±2.36× ±2.36inch
Max. taper angle ±10°/work thickness 11.81inch (±45°/1.6inch: Option)
Dimensions
W×D×H 6.28 × 7.41 × 6.68ft
Weight 7275.26lb
Control device Smart NC
Input system MDI, Ethernet, USB
Display 21.5 inch TFT multi-touch screen
Axis controlled 5 axis (simultaneously 4 axis)
Least input increment 0.01µm
Least command increment 0.01µm
Program memory capacity 1GB
Power Supply MPSC-20
Input power source 3-phase 200V/220V±10%
11 kVA, 50/60Hz
Weight 352.74lb
Filtration device MF50
Tank capacity 195.49gal
Filter element 4 paper filters
Φ13.39 ×11.81inch
Deionizer Ion exchange resign 5.28gal
Weight 947.99lb
Wire diameter : Φ0.003 to Φ0.012inch
(Φ0.010inch is standard
Spec Sheet
Axis travel X,Y,Z 19.7" x 13.8" x 12.2"
Max. workpiece weight 1,764 lbs.
Max. workpiece dimensions W x D x H 31.5" x 25.6" x 8.6"
Wire diameter .004" to .012"
Automatic wire threader Standard
U-V axis travel UxV ±2.4” × ±2.4”
Max.taper angle ±10° @ 11.8” （±45°/1.6”： option)
Machine Dimensions WxDxH 91.9" x 95.7" x 81.5"
Machine Weight 7,496 lbs.
Specifications
Equipped With
100% made in Japan
Hand scraped meehanite castings
Fanuc NC Smart Control
Air cooled cabinets
17" dry annealing auto. wire feeder
Absolute glass scale feedback
Super fine finish circuit
Anti-electrolysis circuit
Corner control
Workpiece straightness circuit
Different height software
Hardened insulated work table
Auto vertical worktank door
Worktank sensors
Automatic water level control
Lower arm rubber bellow
Stainless steel back plate
Remote control handbox
Dielectric chiller
4 MAN Triple bellow paper filters
2 DI bottles
Auto. wire alignment block
Tool box
Spec Sheet
Axis travel X,Y,Z 19.7" x 13.8" x 12.2"
Max. workpiece weight 1,764 lbs.
Max. workpiece dimensions W x D x H 31.5" x 25.6" x 8.6"
Wire diameter .004" to .012"
Automatic wire threader Standard
U-V axis travel UxV ±2.4” × ±2.4”
Max.taper angle ±10° @ 11.8” （±45°/1.6”： option)
Machine Dimensions WxDxH 91.9" x 95.7" x 81.5"
Machine Weight 7,496 lbs.
