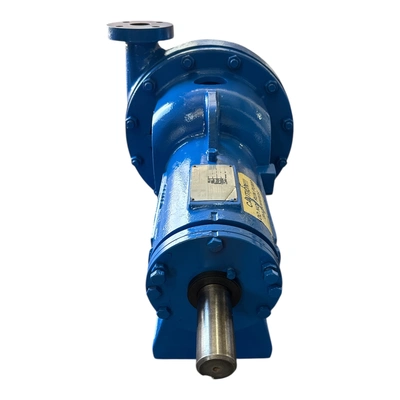

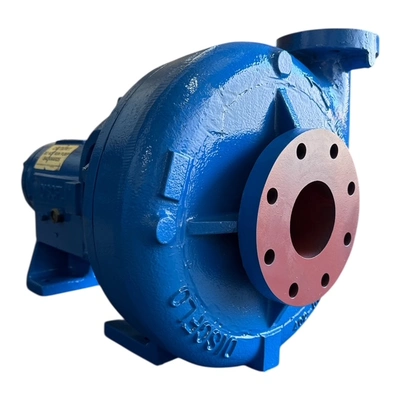

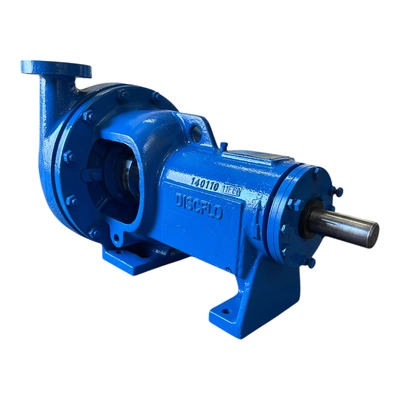

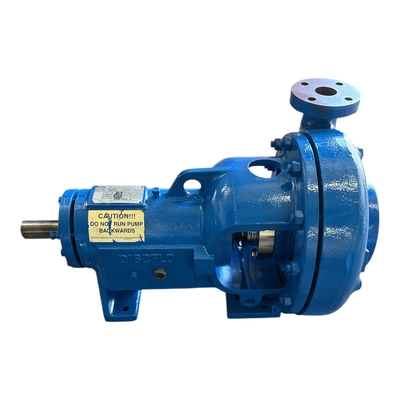

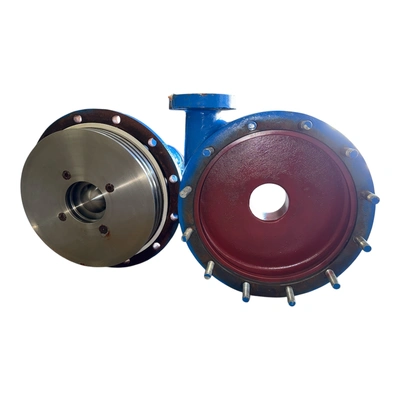

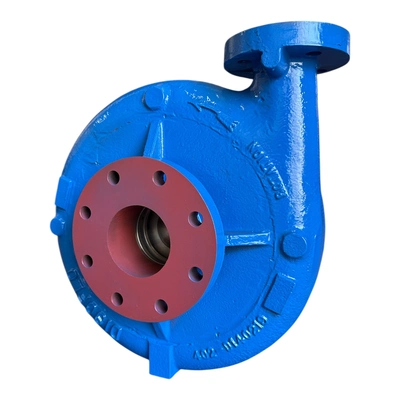

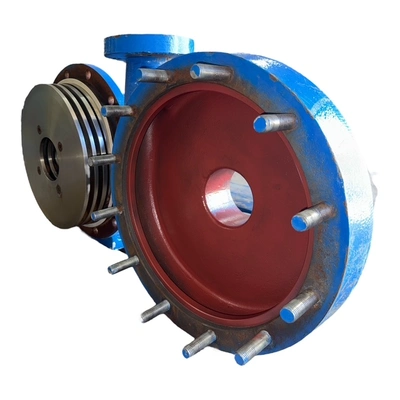

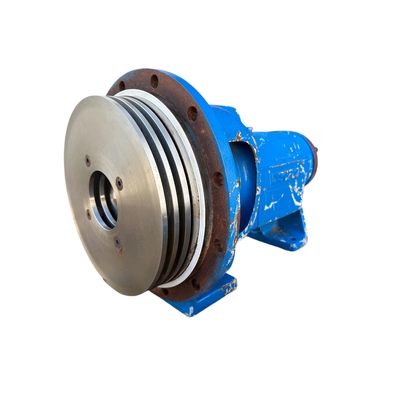

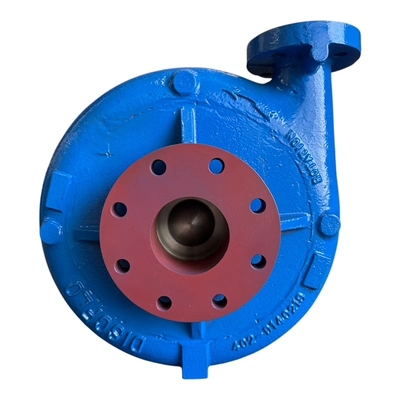

USED DISCFLO 402-14

Brand: DISCFLO

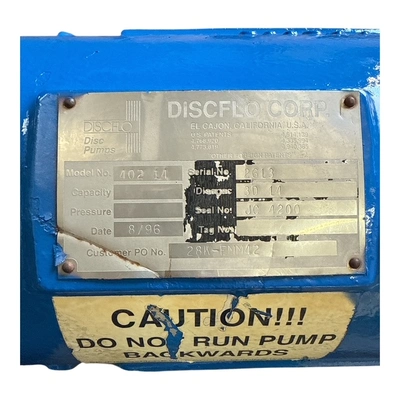

Model: 402-14

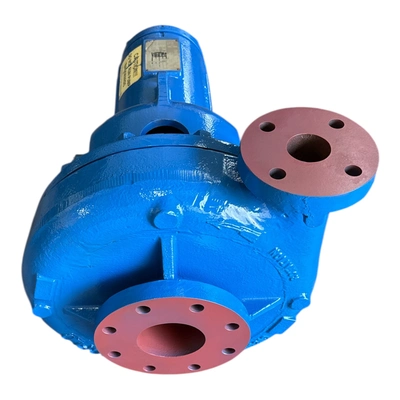

Inlet: 4″
Outlet: 2″
Size: 2×4-14
Material: DI/316SS
Impeller to Maximum size in 316SS
Zero impact and no wear: By not using traditional impellers (vanes), it avoids crushing or emulsifying the liquid. Abrasive solids are kept away from the discs by a protective boundary layer.
Extreme Fluid Handling: Ideal for abrasive slurries, shear-sensitive materials, highly viscous liquids and high solids fluids.
Safe operation: It can work dry without suffering damage and allows accidental closing of suction valves.

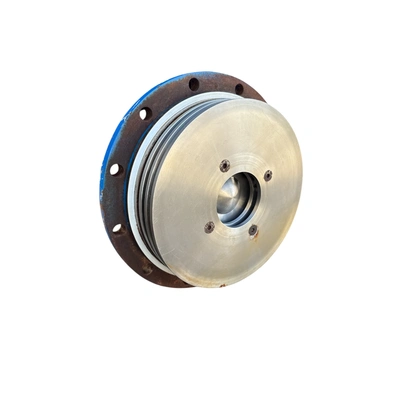

Equipment configuration: It has 4-inch input and 2-inch output connections, with a 14-inch diameter disk system (Discpac)
Connection Size: 4-inch inlet and 2-inch outlet (often referred to as 2x4-14).

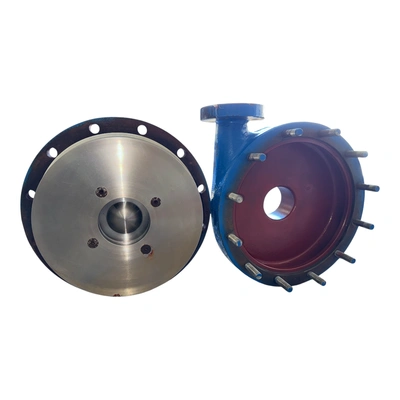

Discpac/Impeller Diameter: Nominal diameter is 14 inches, although it can be adjusted depending on the application (e.g. 10.7″ or 12.2″ in used units).
Flow Capacity: Varies depending on Discpac configuration, with ranges reported from 100 GPM to 160 GPM in standard models.
Pressure/Load (Head): Capable of achieving loads from 147 feet to 226 feet depending on speed and disc design.
Materials:  Commonly made of 316 stainless steel or ductile iron, with titanium options for highly corrosive chemical applications.
Solids: Can process fluids with up to 80% solids and large or fibrous particles without clogging.
Viscosity:  Handles fluids with viscosities up to 200,000 – 300,000 cPs, becoming more efficient as viscosity increases.
Air/Gas Trapping – Holds up to 70-80% air or gas by volume without cavitation or vapor lock.
Maintenance: Because there is no aggressive physical contact (impingement) and wide internal tolerances, wear is minimal, reducing spare parts costs by 90% compared to conventional pumps
